Note: See 'Safety Information" Manual, Page 1.
As described in the manual, all components of the filtration sys-
tem should be placed to prevent a child to climb on top and get
access to the pool.
Using a little bit of stone dust (or sand), place at level a patio
stone 61 cm x 76 cm (24" x 30") before installing the motor and
filter
Position the motor on the stone and insert the two nozzles to
connect the hoses.
Then, install the filter tank. Adjust the lateral assembly pro-perly
in its channel.
It is sometimes necessary to install the laterals.
Patch the center hole of the lateral assembly using the plug to
allow filtering sand to flow into the tank.
Remove the plug. Install the joint in the cavity and secure the fil-
ter head by placing the back wash position on opposite side of
the pool.

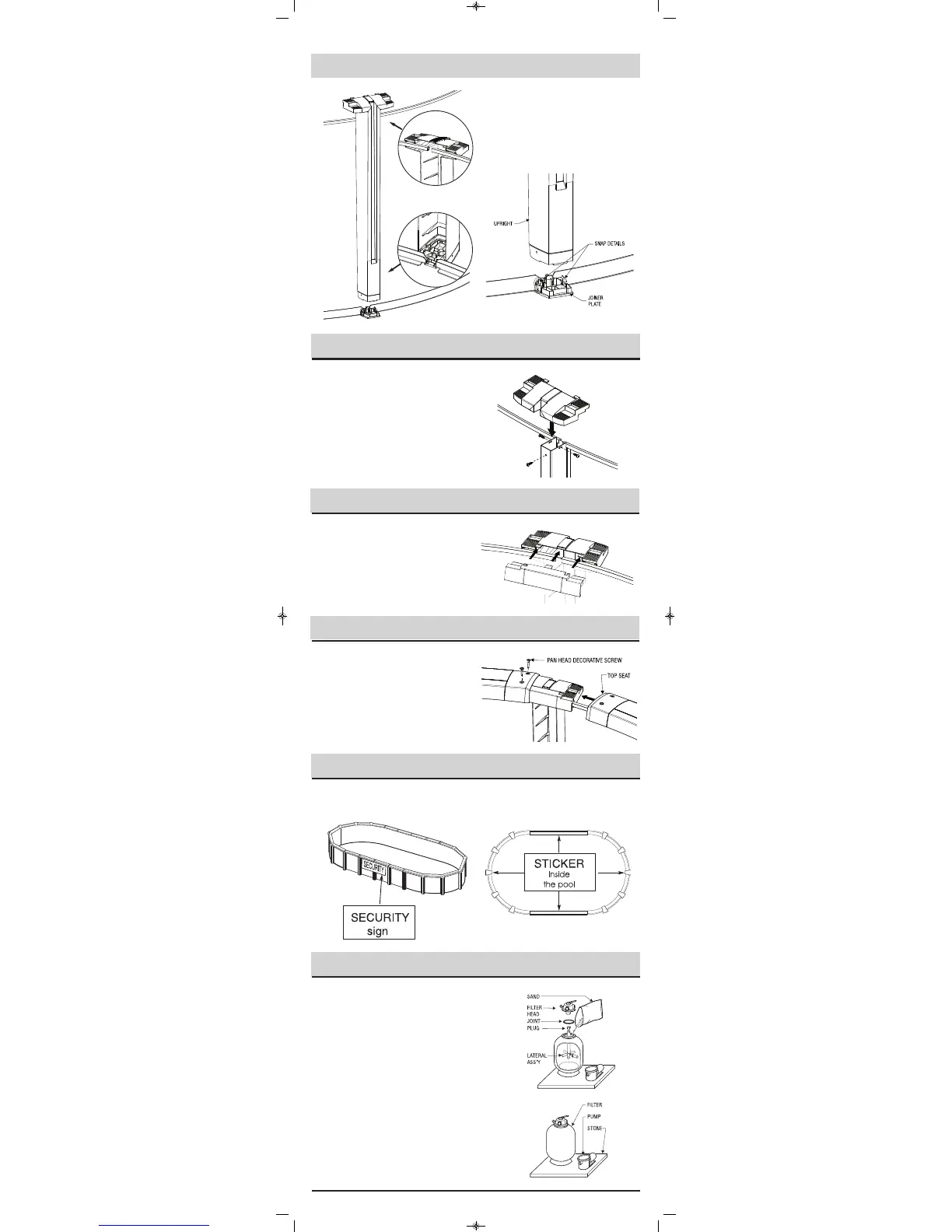

Clip the uprights to the bottom joiner plates.
M
ake sure the post is well snaped into the bottom plate
Position the Safety procedures panel on the outside of the pool.
This panel must be at the most visible place from the yard on
your pool.
Place the four (4) safety stickers inside the pool in a way that it’s
seen from any entry point of the swimmer (See positionning
drawing).
$
16
15
!
12
Place the buttress post top plates on top of the buttress
posts of the straight sections.
Secure them using 3 standard screws #14.
13
14
Clip the upright back cap into the uprights and into the
buttress post top plates.
Make sure the upright back cap is well snaped into the
post.
Place the top seat on the upper side of the upright, and
secure with two (2) pan head decorative screws.
$$
17
