TriangleTube Delta - Replacement Parts

54
Replacement Parts
Item Part No. Description
1 HMJKTMR01 Jacket Right Side Panel
2 HMJKTMB01 Jacket Back Panel
3 HMJKTML01 Jacket Left Side Panel
4 HMJKTMT01 Jacket Top Panel
5 HMJKTMF01 Jacket Front Panel
6 HMJKTMFL01 Control Cover Panel
7 HMCOV05 Burner Hood Panel
8 MDRKIT01 Domestic NTC Sensor
9 MDRKIT02 Air Switch
10 PSRKIT19 Transformer
11 MDRKIT03 Control Module
12 MDRKIT04 Controle Module Display
13 MDRKIT05 Primary NTC Sensor
14 MDRKIT06 Control Module Display Cover
15 MDRKIT07 Low Water Cut Off (not shown)
16 MDRKIT11 Flue Hood Gasket
1
13
11
2
6
7
14
5
8
13
3
4
10
12
9

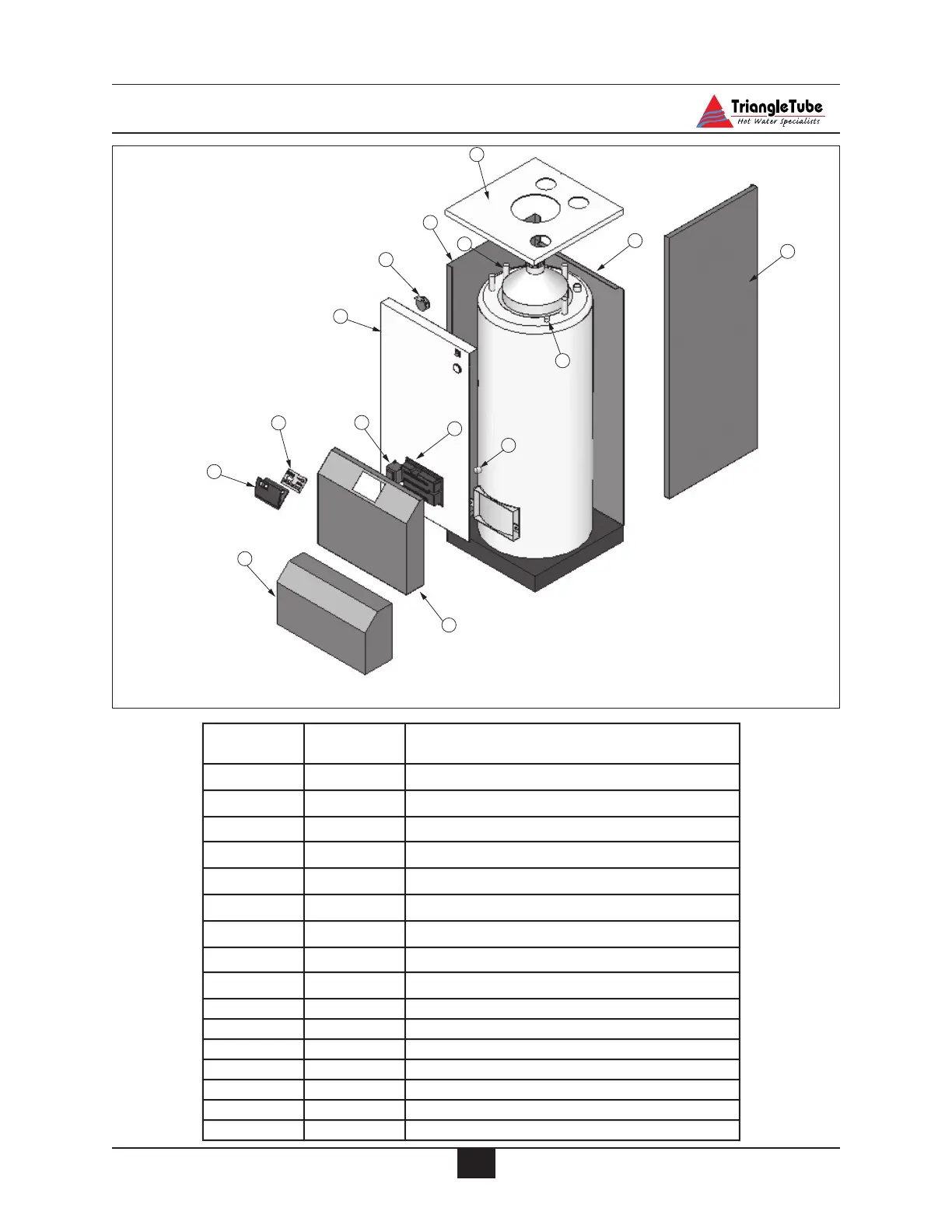

Fig. 19 : Modulating Delta Replacement Parts
