Triax SR-26 - Rear Panel Connections & Elements; LNB Input; TV SCART; AUDIO L;R

- 7 -

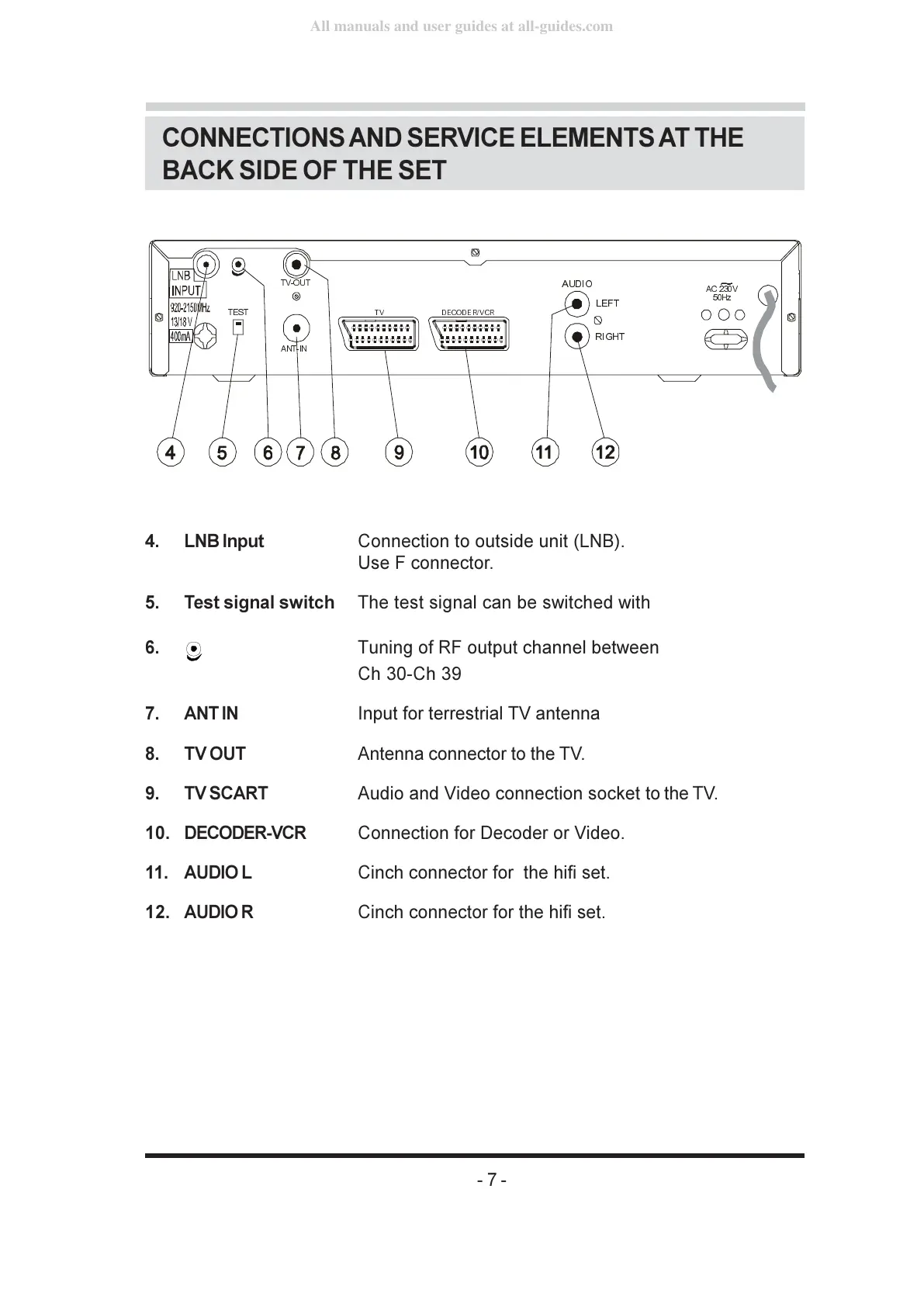

CONNECTIONS AND SERVICE ELEMENTS AT THE
BACK SIDE OF THE SET
7(67
792 87
$17,1
'(&2'(59&579
/()7
5,*+7
$&9
+]
$8',2
4. LNB Input Connection to outside unit (LNB).
Use F connector.
5. Test signal switch The test signal can be switched with
6.
Tuning of RF output channel between
Ch 30-Ch 39
7. ANT IN Input for terrestrial TV antenna
8. TV OUT Antenna connector to the TV.
9. TV SCART Audio and Video connection socket to the TV.
10. DECODER-VCR Connection for Decoder or Video.
11. AUDIO L Cinch connector for the hifi set.
12. AUDIO R Cinch connector for the hifi set.
