Trident RiX-70 DC - System Configurations; Wall Mounted Version Components

User Manual
RiX 70 DC
12
Appendix A
Systems
1
2
7
6
3
4
5
8

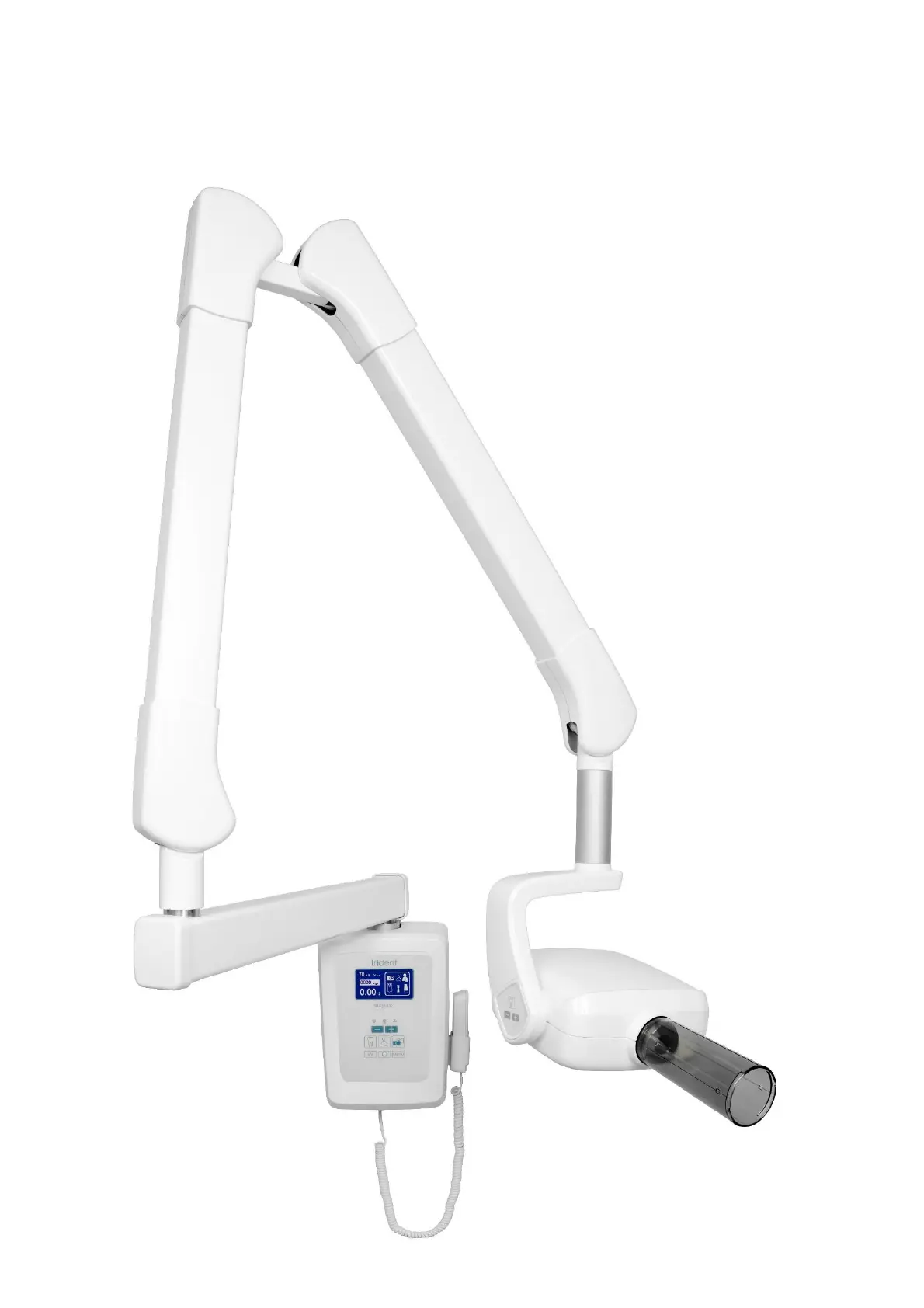

Walll mounted version
1 Wall plate
2 Support arm (40/60/ 80 cms)
3 Scissor arm
4 Monoblock Support (tie)
5 Monoblock
6 Cone (collimator)
7 Control panel (timer)
8 Handswitch with cable
