User Manual
RiX 70 DC
18

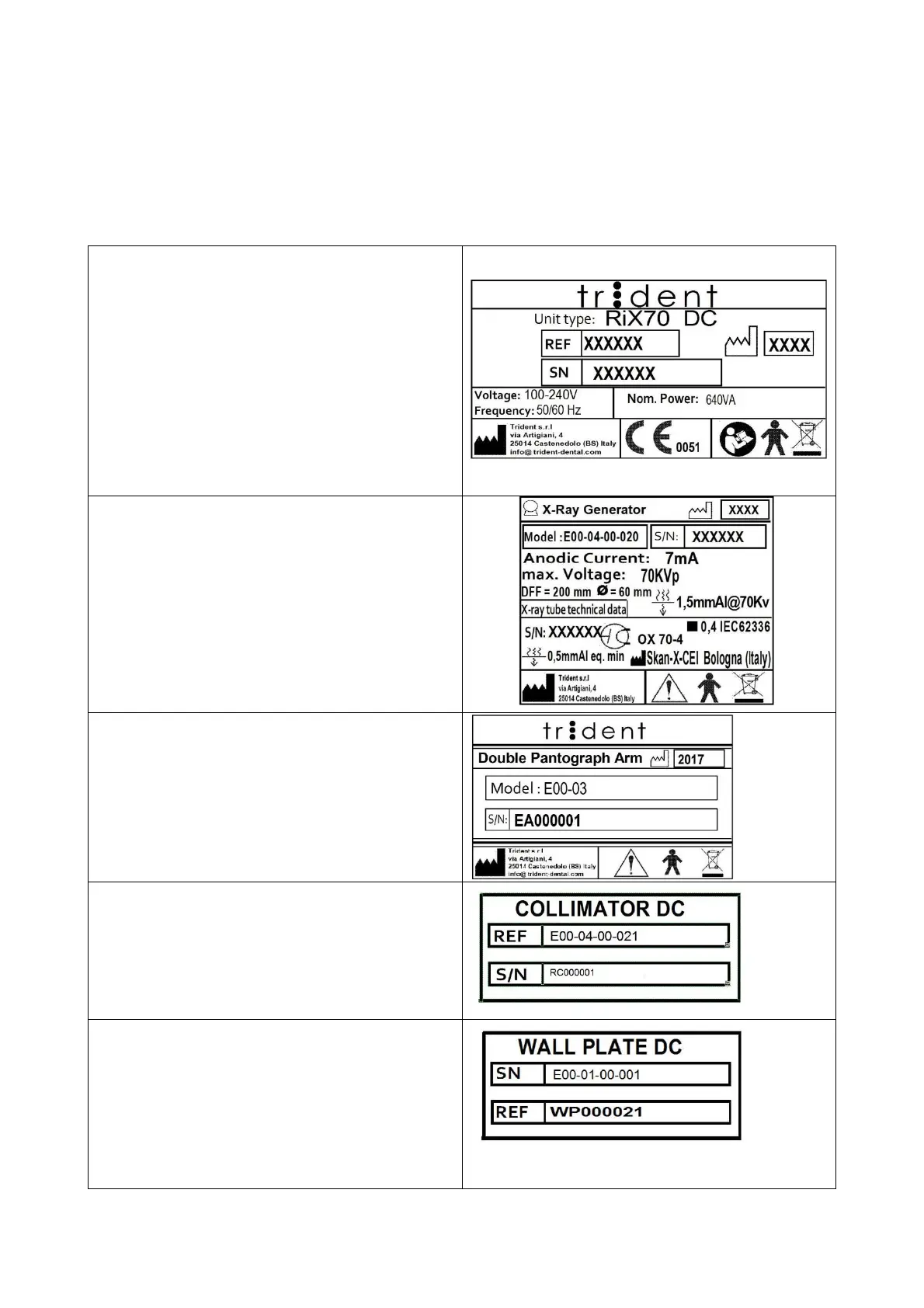

Appendix E
Labels
Label 1 Unit Identification
REF : It’s the identification code of the machine, for
instance RiX70 DC-###
Where ### is the length of the arm:
040 = 40 cm
060 = 60 cm
080 = 80 cm
100 = 100 cm
000 = mobile system
Serial Number: It’s an alphanumeric code of 2 letters
+ 6 numbers, for instance ID150001
ID identifies the intraoral DC machine
15 identifies the production’s year
0001 identifies the sequence productive number
Label 2 X-Ray Tube
Model: it’s a fixed code that identifies the DC
monoblock: E00-04-00-020
Serial Number: It’s an alphanumeric code of 1 letter
+ 6 or 7 numbers (this numbers are the same of the
tube S/N)
Label 3 Scissor (Double pantograph) Arm
Model: it’s a fixed code that identifies the double
pantograph arm: E00-03
Serial Number: It’s an alphanumeric code of 2 letters
+ 6 numbers, for instance EA000001
EA identifies the double pantograph arm
00001 identifies the sequence productive number
Label 4 Collimator (Bean Limiting Device)
REF E00-04-00-021: it’s a fixed code that identifies the
rectangular collimator for RiX-70 DC
Serial Number: It’s an alphanumeric code of 2 letters
+ 6 numbers, for instance RC000001
RC identifies the rectangular collimator.
00001 identifies the sequence productive number.
Label 5 Wall Plate
REF WP000021: it’s a fixed code that identifies the wall
plate.
Serial Number: It’s an alphanumeric code of 2 letters
+ 6 numbers, for instance WP000021
WP identifies the wall plate
00021 identifies the sequence productive number.
