Miniguard IID
This manual contains the information required to install
and program the TRIGON Miniguard IID. If you are
using this manual to install this unit, it is very important
to read all the sections in order.
You should read these instructions before you begin
installation. This will insure that everything is done
efficiently.

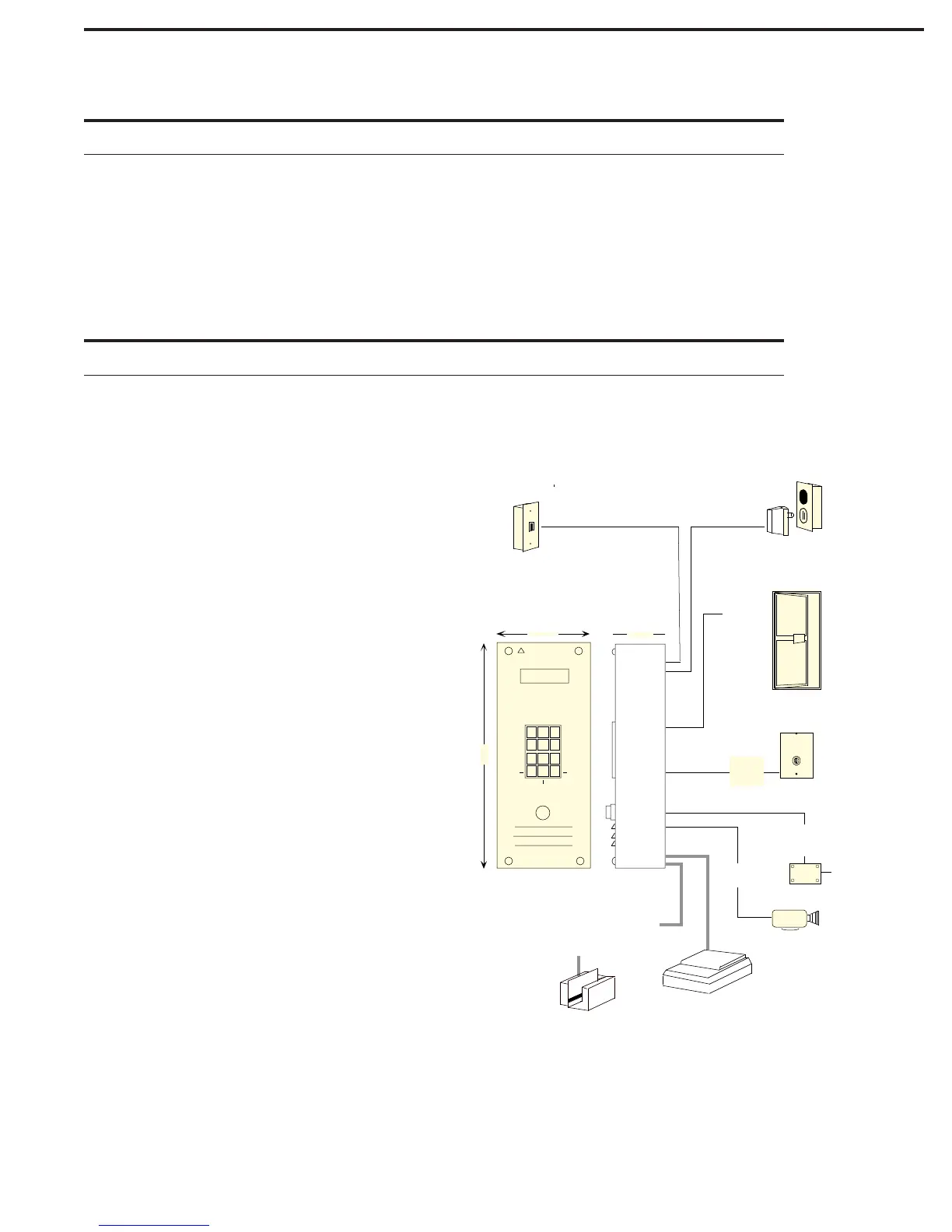

Hookup Specifications
If you are using this manual as a programming guide
after the initial installation, you may find the TABLE
OF CONTENTS useful in locating the particular
programming procedure you need.
The Trigon Miniguard IID is a handsfree, multi-number
Telephone Entry System for resident/visitor control.
Visitors contact the desired tenant by entering a simple
directory code gained from the built-in electronic
directory. The resident then grants or denies access.
The Miniguard IID has a capacity of up to 400 telephone
numbers and up to 400 personal entry codes, and is
Analog Port compatible. It features a LCD directory
for integrated design. It is constructed for rugged
outdoor use. Its long-lasting brushed-finish stainless
steel housing complements its thin design lines. A
matching flush-mount trim-ring or lighted hood may
be selected to add the finishing touches to an installation.
PRODUCT OVERVIEWPRODUCT OVERVIEW
PRODUCT OVERVIEWPRODUCT OVERVIEW
PRODUCT OVERVIEW
INTRODUCTIONINTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
TRIGON
MINIGUARD IID
CALL
AZ
LETTER
SELECT
TRIGON ELECTRONICS
ORANGE CA.
4.2"
12"
Telephone Line-
Voice Grade 24 to 48V
22 AWG; Shielded
or Twisted,2 Conductor
Camera, Door or Gate
Secondary
Relay
Serial Printer
(18 AWG; Shielded, 3 Conductor)
Postal
Lock
Box
Primary
Output
Relay
Main Entrance
Power Cabling -
Shielded or Twisted,
2 Conductor,
18AWG up to 250'
16AWG up to 500'
Card Reader
(Interface Module Req'd)
18 AWG; Shielded,
4 to 6 Conductor
Alarm
Shunt
Relay
2.0"
Figure 1
