Trigon Electronics MiniGuard IID - WIRING DIAGRAM

Page 5
Miniguard IID
Figure 3

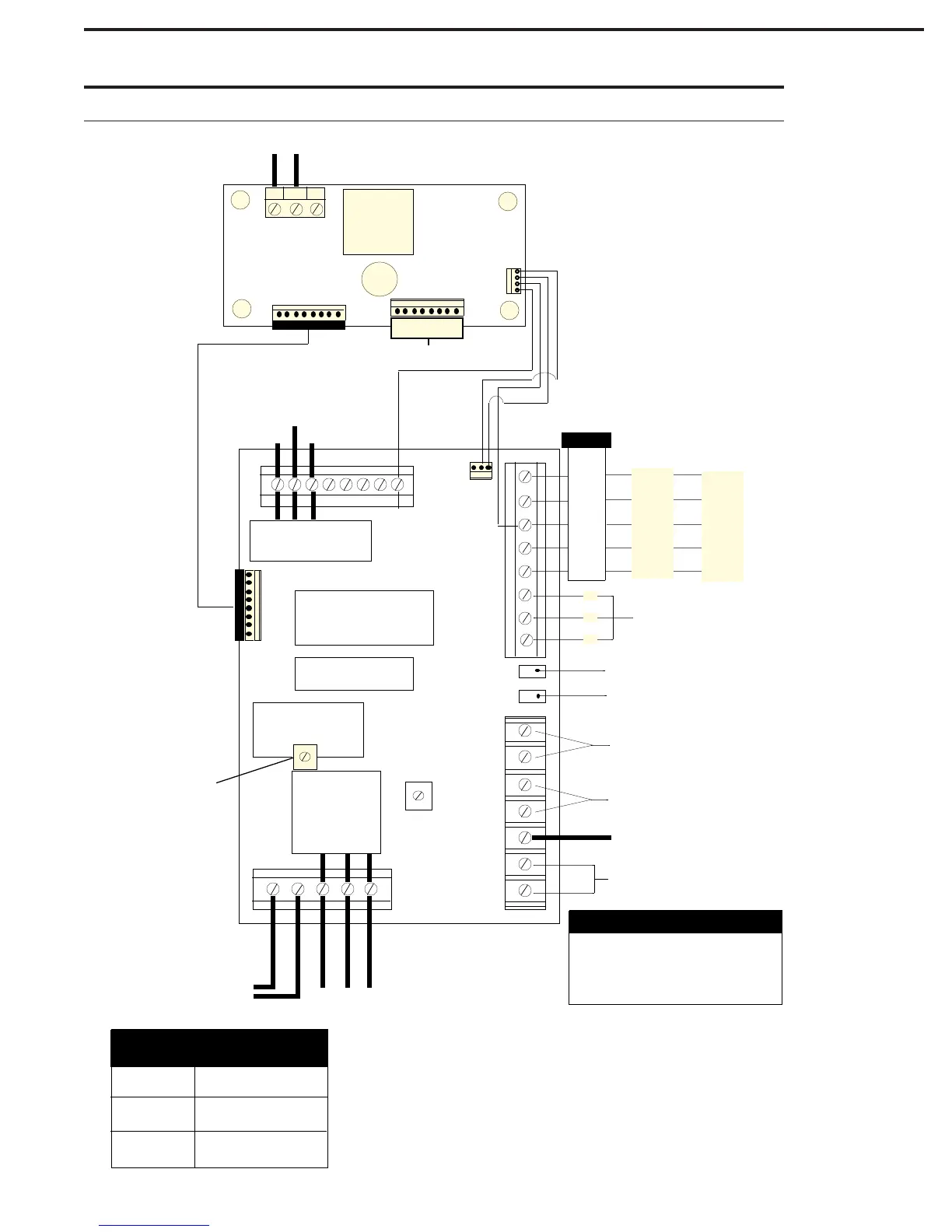

WIRING DIAGRAMWIRING DIAGRAM
WIRING DIAGRAMWIRING DIAGRAM
WIRING DIAGRAM
NC C NO
0-250'
500' +
18 AWG; Shielded
16 AWG; Shielded
14 AWG; Shielded
Input power cabling
250 to 500'
ALARM SHUNT
IN
OUT
DSR
COM
RS-232
CARD READER
EARTH GROUND
TELEPHONE LINE
MICROPROCESSOR
AUDIO
SPEAKER
VOLUME
PRIMARY
RELAY
12V AC / DC
NO C
NC
RELAY;
INPUT
POWER
5 Amp MAX
1/4 Amp
NC
MEMORY
P
S
G
C
NO
Telephone line cabling
Voice Grade 24 to 48V
22AWG; Shielded or
Twisted up to 2400'
Busy
Com
Printer
In
DB-9
Computer
In
Com
Out
Keypad
Secondary
Relay Contacts
RTS
Microphone
Sensitivity
Adjustment
Secondary
Relay
5 Amp MAX
PG
EARPHONE
MOUTH
SPEAKER (Miniguard IID)
MICROPHONE (Miniguard IID)
KEYPAD
CONNECTION
