Trigon Energy - Volume Control and Display; PROTECT Indicator

6
MODEMUTESPLITT LS-OFF
PROTECTMONO
1 2 3 4 5 6
7
8 9 10
17161514131211

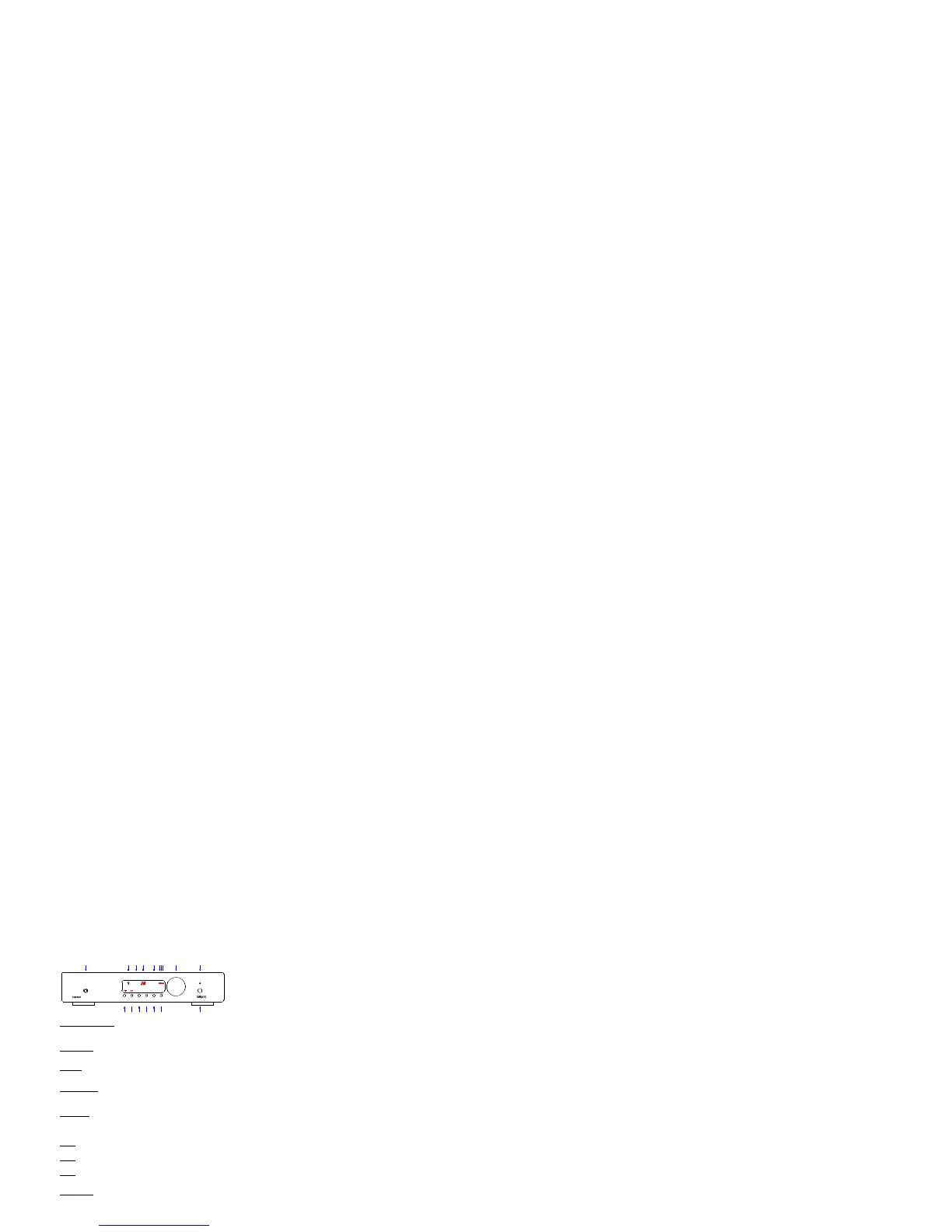

1 󰾴 Headphone Connector :
The 6.3mm stereo plug of the headphones can be connected to the jack. Make sure that
the impedance of the headphones is not rated below 32 Ohm. Low impedance
headphones must be connected to the loudspeaker terminals.
2 - Input Display :
This display shows what input is currently selected and active. A small dot will light up
behind the display if the Display Off function is selected.
3 - MONO :
This LED lights up when the remote control has been used to set the Energy to
mono operation.
4 󰾴 Volume Display :
This display shows the select volume level. It also displays other values when in the
MODE menu. This is more fully described in the MODE-Menu section (Chapter 4) below.
5 󰾴 PROTECT :
The LED flashes if a defect has been detected by the electronic safety system. Turn the
integrated amplifier off, wait a few minutes and then turn it back on. If the LED continues
to flash, return the amplifier to the factory for service or return it to your authorised dealer
for examination.
6 󰾴 LED :
This LED shines, if the Stereobalance is shifted to the left.
7 󰾴 LED :
This LED is flashing once the amplifier receive a remote signal.
8 󰾴 LED :
This LED shines, if the Stereobalance is shifted to the right
9 󰾴 Volume Knob :
This knob is used to set and adjust the volume of the Energy. It is designed as a pulse
generator without an end-stop where, at each step, an electronic pulse is transmitted to
the microprocessor which in turn handles the electronic volume control. Chapter 4
