Appendix: Installation and Mounting e-PAD
Wiring
Red—12V power
Black—Ground
Green—Unlock output (12V pulse)
Blue—Lock output (12V pulse)
Yellow—Authority learn wire (disconnected unless programming)
Power wires = female 1/4” spade terminal with one meter wires.
Output wires = female 4mm bullet terminal with 200mm wires.

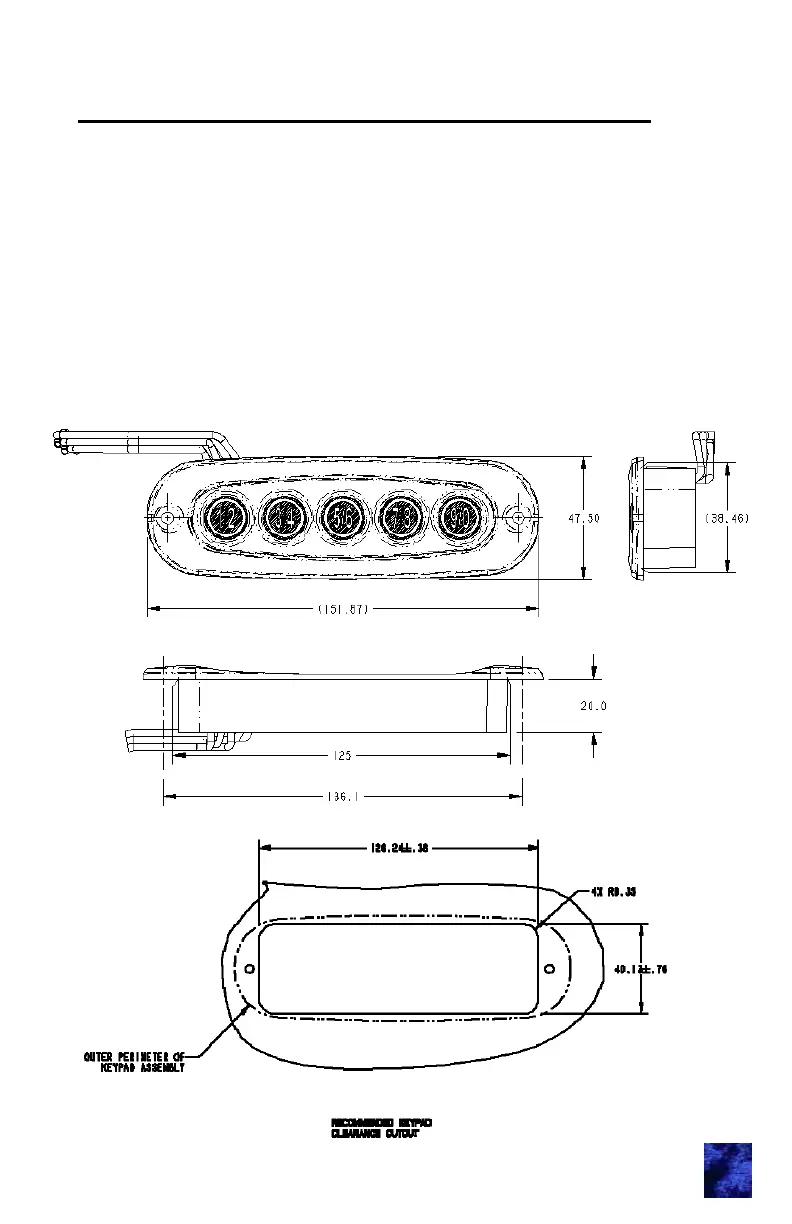

Mounting Information (units in metric)
