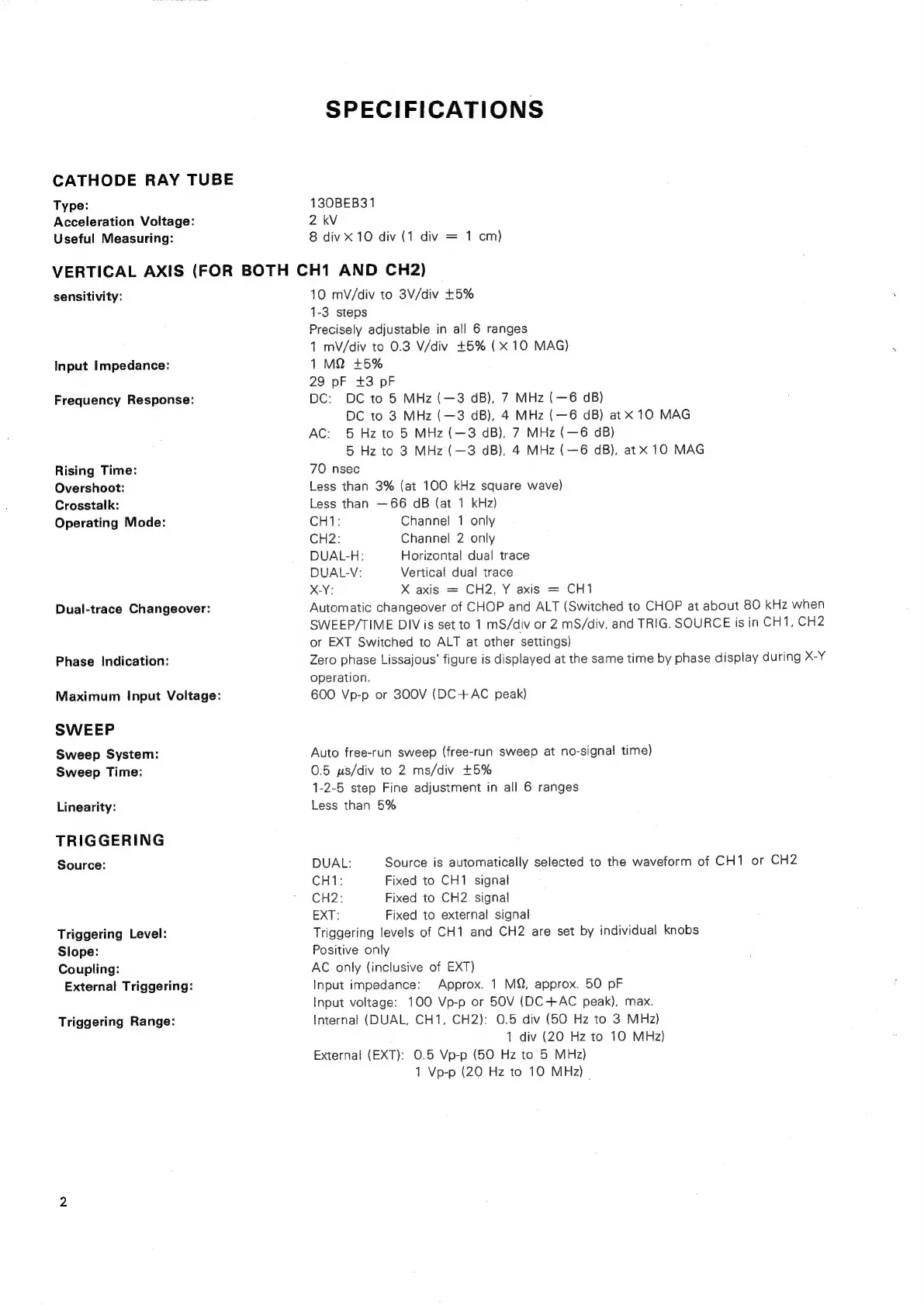

Trio CS-1575 - SPECIFICATIONS

CATHODE RAY TUBE
Type:
Acceleration Voltage:
Useful Measuring:
SPECIFICATIONS
130BEB31
2 kV
8 divx 10 div (1 div = 1 cm)
VERTICAL AXIS (FOR BOTH CH1 AND CH2)
sensitivity:
Input Impedance:
Frequency Response:
Rising Time:
Overshoot:
Crosstalk:
Operating Mode:
Dual-trace Changeover:
Phase Indication:
Maximum Input Voltage:
SWEEP
Sweep System:
Sweep Time:
Linearity:
TRIGGERING
Source:
Triggering Level:
Slope:
Coupling:
External Triggering:
Triggering Range:
10 mV/div to 3V/div +5%
1-3 steps
Precisely adjustable in all 6 ranges
1 mV/div to 0.3 V/div +5% (x 10 MAG)
1 MQ +5%
29 pF +3 pF
DC: DC to 5 MHz (—3 dB), 7 MHz (—6 dB)
DC to 3 MHz (—3 dB), 4 MHz (—6 dB) atx 10 MAG
AC: 5 Hz to 5 MHz (—3 dB), 7 MHz (—6 dB)
5 Hz to 3 MHz {—3 dB), 4 MHz (—6 dB), at* 10 MAG
70 nsec
Less than 3% (at 100 kHz square wave)
Less than —66 dB (at 1 kHz)
CH1: Channel 1 only
CH2: Channel 2 only
DUAL-H: Horizontal dual trace
DUAL-V: Vertical dual trace
X-Y: X axis = CH2, Y axis = CH1
Automatic
changeover
of
CHOP
and
ALT
(Switched
to
CHOP
at
about
80
kHz
when
SWEEP/TIME
DIV
is
set
to
1
mS/div
or
2
mS/div,
and
TRIG.
SOURCE
is
in
CH1,
CH2
or
EXT
Switched
to
ALT
at
other
settings)
Zero
phase
Lissajous’
figure
is
displayed
at
the
same
time
by
phase
display
during
x-Y
Operation.
600 Vp-p or 300V (DC+AC peak)
Auto free-run sweep (free-run sweep at no-signal time)
0.5 ps/div to 2 ms/div +5%
1-2-5 step Fine adjustment in all 6 ranges
Less than 5%
DUAL:
Source
is
automatically
selected
to
the
waveform
of
CH1
or
CH2
CH1:
Fixed
to CH1
signal
CH2: Fixed to CH2 signal
EXT: Fixed to external signal
Triggering levels of CH1 and CH2 are set by individual knobs
Positive only
AC only (inclusive of EXT)
Input impedance: Approx. 1 MQ, approx. 50 pF
Input voltage: 100 Vp-p or 50V (DC-+AC peak), max.
Internal (DUAL, CH1, CH2): 0.5 div (50 Hz to 3 MHz)
1 div (20 Hz to 10 MHz)
External (EXT): 0.5 Vp-p (50 Hz to 5 MHz}
1 Vp-p (20 Hz to 10 MHz) |
