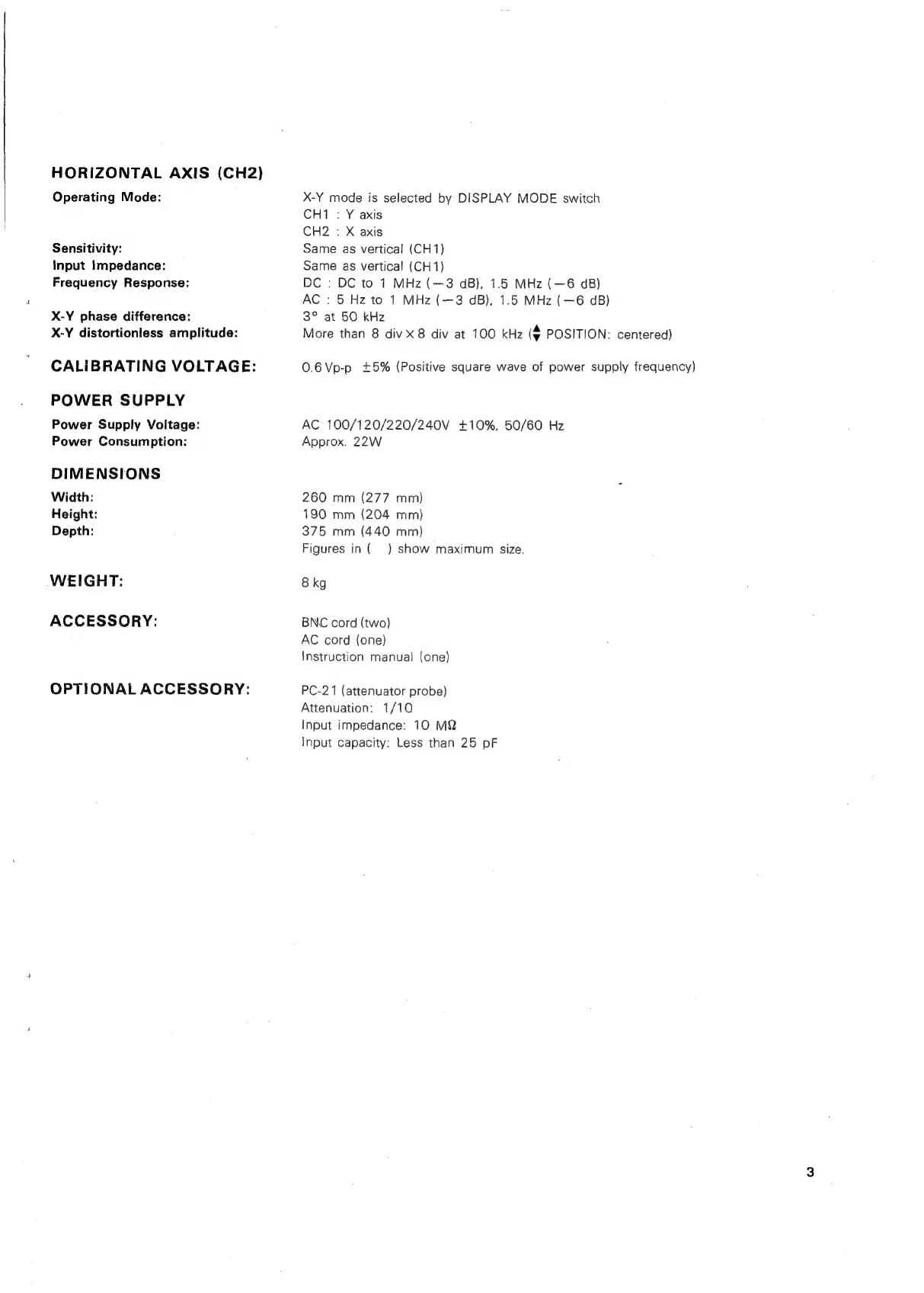

Trio CS-1575 - HORIZONTAL AXIS, CALIBRATING VOLTAGE, AND POWER SUPPLY SPECIFICATIONS; DIMENSIONS, WEIGHT, AND ACCESSORIES

HORIZONTAL AXIS (CH2)
Operating Mode:
Sensitivity:
Input Impedance:
Frequency Response:
X-Y phase difference:
X-Y distortionless amplitude:
CALIBRATING VOLTAGE:
POWER SUPPLY
Power Supply Voltage:
Power Consumption:
DIMENSIONS
Width:
Height:
Depth:
WEIGHT:
ACCESSORY:
OPTIONAL ACCESSORY:
X-Y mode is selected by DISPLAY MODE switch
CHi : Y axis
CH2 : X axis
Same as vertical (CH1)
Same as vertical (CH1)
DC : DC to 1 MHz (—3 dB), 1.5 MHz (—6 dB)
AC : 5 Hz to 1 MHz (—3 dB), 1.5 MHz (—6 dB)
3° at 50 kHz
More than 8 divx8 div at 100 kHz (# POSITION: centered)
0.6 Vp-p +5% (Positive square wave of power supply frequency)
AC 100/120/220/240V +10%, 50/60 Hz
Approx. 22W
260 mm (277 mm)
180 mm (204 mm)
375 mm (440 mm)
Figures in ( ) show maximum size.
8 kg
BNC cord (two)
AC cord (one)
Instruction manual (one)
PC-21 (attenuator probe)
Attenuation: 1/10
Input impedance: 10 MQ
Input capacity: Less than 25 pF
