Trio CS-1575 - EXTERNAL VIEW AND NAME OF PARTS

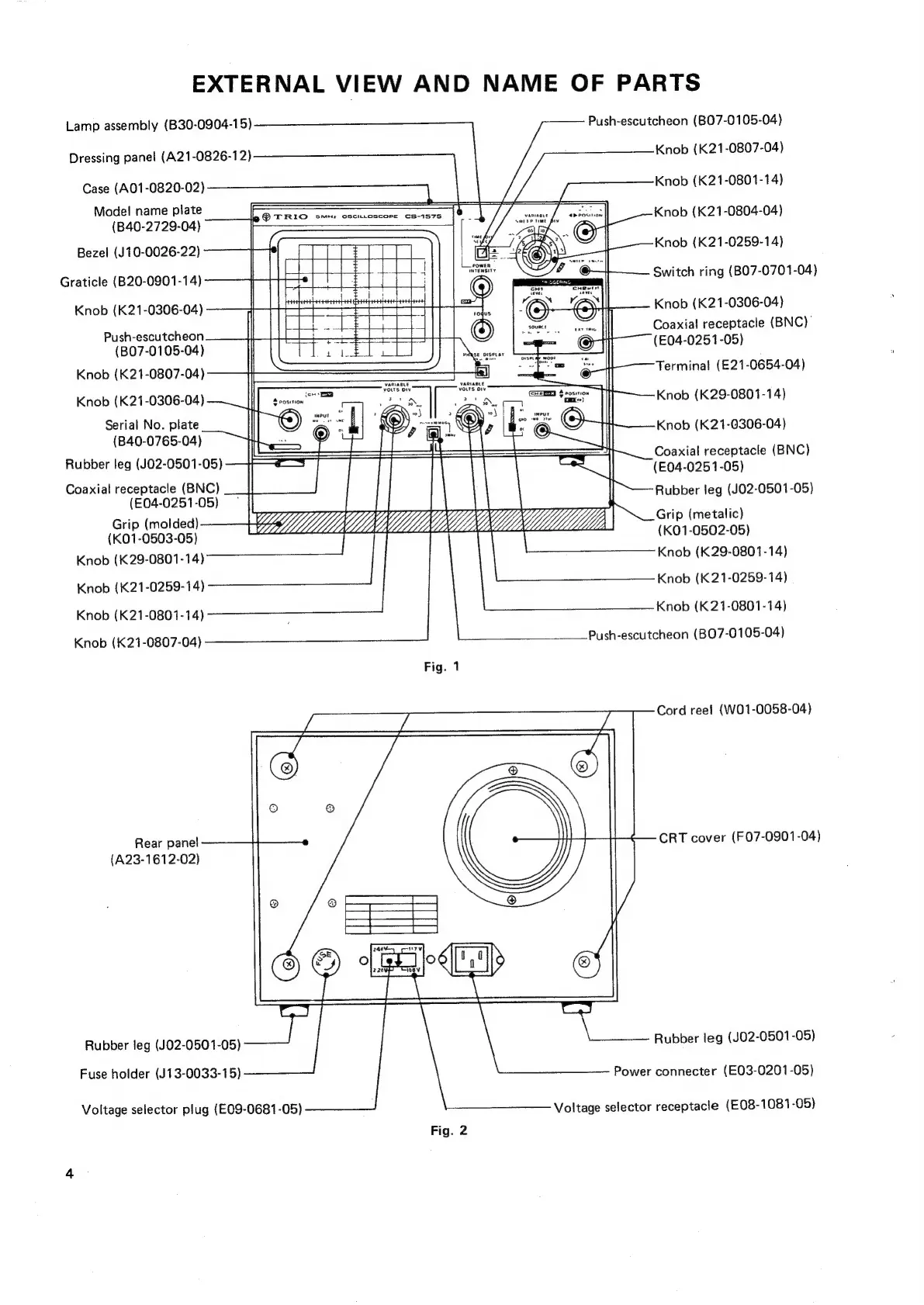

EXTERNAL VIEW AND NAME OF PARTS
Lamp assembly (B30-0904-15)
Dressing panel (A21-0826-12)
Case (A01-0820-02)
Model! name plate
(B40-2729-04}
Bezel (J10-0026-22)
Graticle (B20-0901-14)
Knob (K21-0306-04)
Push-escutcheon
Push-escutcheon (BO7-0105-04)
Knob (K21-0807-04)
Knob (K21-0801-14)
Knob (K21-0804-04)
Knob (K21-0259-14)
Switch ring (BO7-0701-04)
Knob (K21-0306-04)
Coaxia!
receptacle
(BNC)
(E04-0251
-05)
Terminal (E21-0654-04)
Knob (K29-0801-14)
Knob (K21-0306-04)
Coaxial receptacle (BNC)
(E04-0251-05)
Rubber leg (JO2-0501-05)
Grip (metalic)
(KO1-0502-05)
(BO7-0105-04)
Knob (K21-0306-04)
Serial No. plate |
Rubber leg (JO02-0501-05) =
Coaxial receptacle (BNC)
Gti
(molded
MMMM
A
Knob (K21-0259-14)
Knob (K21-0801-14)
Knob (K21-0807-04)
(B40-0765-04)
[
(E04-0251-05)
TT
Knob (K29-0801-14)
Knob (K21-0807-04)
Fig. 1
Rear panel
(A23-1612-02)
Rubber leg (JO2-0501-05)
Fuse holder (J13-0033-15)
Voltage selector plug (E09-0681-05)
Fig. 2
Knob (K29-0801-14)
Knob (K21-0259-14)
Knob (K21-0801-74)
____Push-escutcheon
(BO7-0105-04)
Cord ree! (W01-0058-04)
CRT cover (F07-0901-04)
ies
Rubber
leg
(JO2-0501-05)
Power connecter (E03-0201-05)
Voltage
selector
receptacle
(E08-1081-05)
