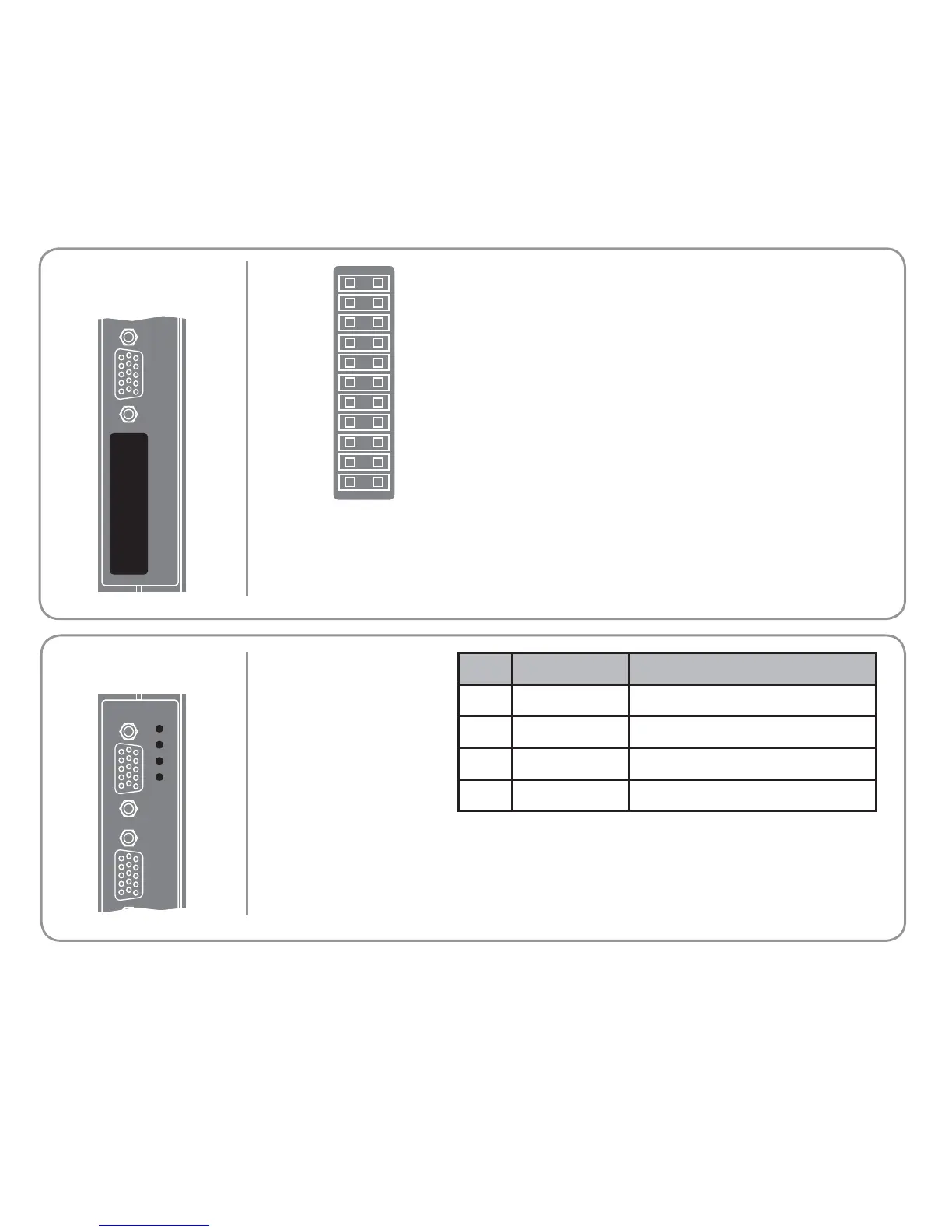

Trio MC664 Quick Connection Guide

REGISTRATION
CONNECTOR
V0V
V0V
V0
V1
V2
V3
R0
R1
R2
R3
0V PWR
V0V
V0V
V4
V5
V6
V7
R4/PS4
R5/PS5
R6/PS6
R7/PS7
24V
LED FUNCTIONS
LED LED Colour LED Function
ok Green ON=Module Initialised Okay
0 Red ON=Module Error
1 Yellow Status 1
2 Yellow Status 2
EXPANSION MODULE P874 / P879 - MC664 FLEXIBLE AXIS INTERFACE
ok
0
1
2
V0 - V7: Voltage outputs
R4/PS4 - R7/PS7: Bidirectional registration
R0 - R3: Registration In
Inputs / 24V: PSwitch outputs
0V PWR: Power Input
24V: Power Input
V0V: DAC common 0V return
NOTE: 4 axis version uses voltage outputs
0 - 3 only.

Trio MC664 Specifications

General

Brand	Trio
Model	MC664
Category	Controller
Language	English
