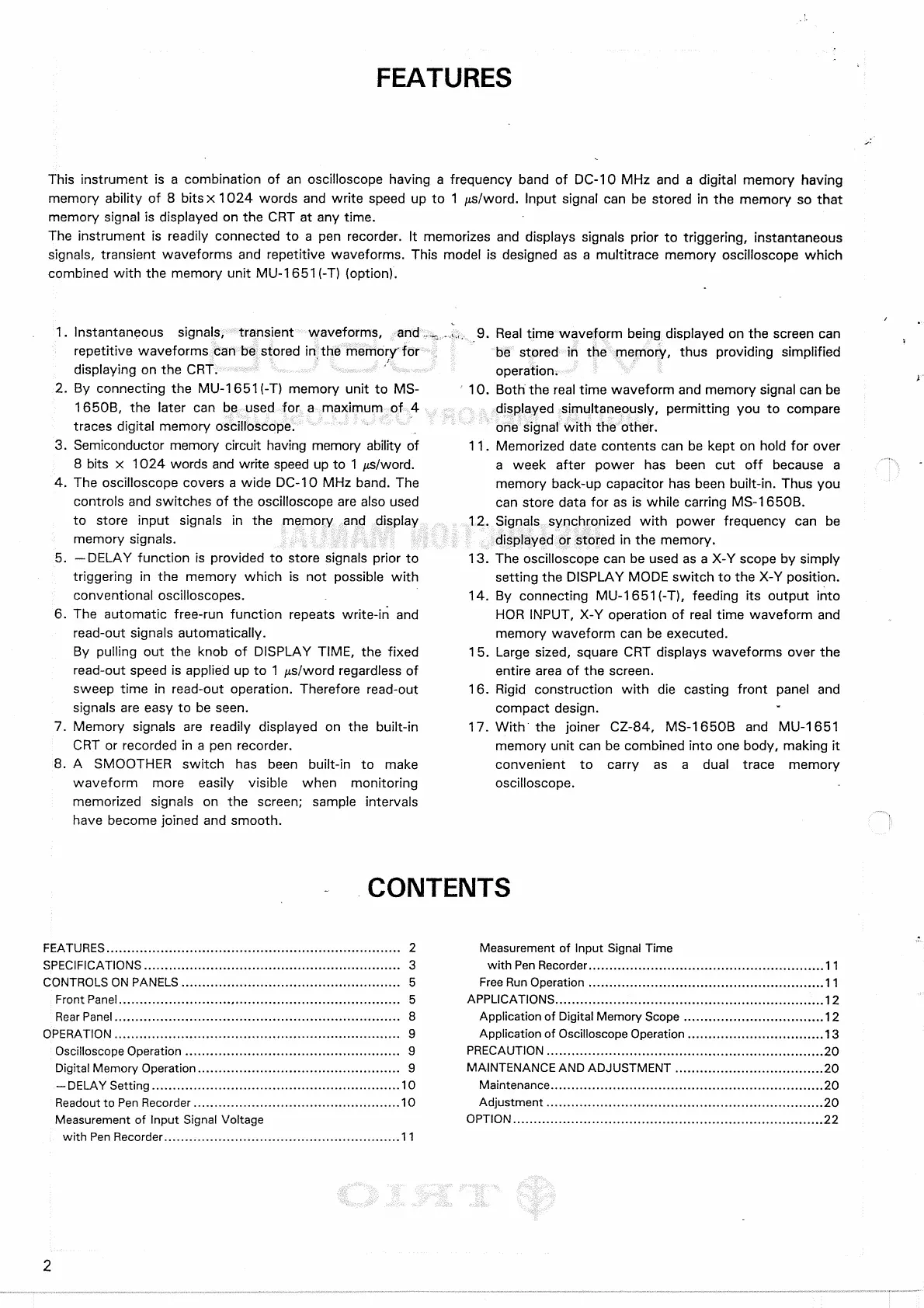

FEATURES
This
instrument is a combination of an oscilloscope having a frequency band of DC-10 MHz and a
digital
memory having
memory ability of 8 bitsx 1024 words and write speed up to 1 /is/word. Input signal can be stored in the memory so that
memory signal is displayed on the CRT at any time.
The
instrument is readily connected to a pen recorder. It memorizes and displays signals
prior
to triggering, instantaneous
signals,
transient waveforms and repetitive waveforms.
This
model is designed as a multitrace memory oscilloscope which
combined
with
the memory
unit
MU-165K-T) (option).
1.
Instantaneous signals, transient waveforms, and,.™...
repetitive waveforms can be stored in the memory for
displaying on the CRT.
2.
By connecting the MU-165K-T) memory
unit
to MS-
1650B,
the later can be used for a maximum of 4
traces
digital
memory oscilloscope.
3.
Semiconductor memory circuit having memory ability of
8
bits x 1024 words and write speed up to 1 /^s/word.
4.
The oscilloscope covers a wide DC-10 MHz band. The
controls and switches of the oscilloscope are also used
to store
input
signals in the memory and display
memory signals.
5.
—DELAY
function is provided to store signals
prior
to
triggering
in the memory which is not possible
with
conventional oscilloscopes.
6.
The automatic free-run function repeats write-in and
read-out signals automatically.
By
pulling
out the knob of
DISPLAY
TIME,
the fixed
read-out speed is applied up to 1 jts/word regardless of
sweep
time in read-out operation. Therefore read-out
signals
are
easy
to be
seen.
7.
Memory signals are readily displayed on the
built-in
CRT
or recorded in a pen recorder.
8.
A
SMOOTHER
switch has been
built-in
to make
waveform more easily visible when
monitoring
memorized signals on the
screen;
sample intervals
have
become joined and smooth.
9.
Real
time waveform being displayed on the screen can
be stored in the memory, thus providing simplified
operation.
10.
Both the real time waveform and memory signal can be
displayed simultaneously,
permitting
you to compare
one signal
with
the other.
11.
Memorized date contents can be kept on
hold
for over
a
week after power has been cut off because a
memory back-up capacitor has been built-in.
Thus
you
can
store data for as is while earring MS-1650B.
12.
Signals synchronized
with
power frequency can be
displayed or stored in the memory.
13.
The oscilloscope can be used as a X-Y scope by simply
setting the
DISPLAY
MODE switch to the X-Y position.
14.
By connecting MU-165K-T), feeding its
output
into
HOR
INPUT,
X-Y operation of real time waveform and
memory waveform can be executed.
1
5. Large
sized,
square CRT displays waveforms over the
entire
area
of the
screen.
16.
Rigid construction
with
die casting
front
panel and
compact design.
17.
With the joiner
CZ-84,
MS-1650B and MU-1651
memory
unit
can be combined
into
one body, making it
convenient to carry as a dual trace memory
oscilloscope.
CONTENTS
FEATURES
2
SPECIFICATIONS
3
CONTROLS
ON
PANELS
5
Front
Panel
5
Rear
Panel
8
OPERATION
9
Oscilloscope
Operation 9
Digital Memory Operation 9
—
DELAY
Setting 10
Readout
to Pen Recorder 10
Measurement of Input Signal Voltage
with
Pen Recorder 11
Measurement of Input Signal Time
with
Pen Recorder 11
Free
Run Operation 11
APPLICATIONS
12
Application of Digital Memory Scope 12
Application of Oscilloscope Operation 13
PRECAUTION
20
MAINTENANCE
AND
ADJUSTMENT
20
Maintenance 20
Adjustment 20
OPTION
22
2
