Trion Mister-MINI - Unit Diagram and Parts List

Mister- MINI
®
Humidifier
Installation, Operation, & Maintenance Manual
14 www.trioniaq.com

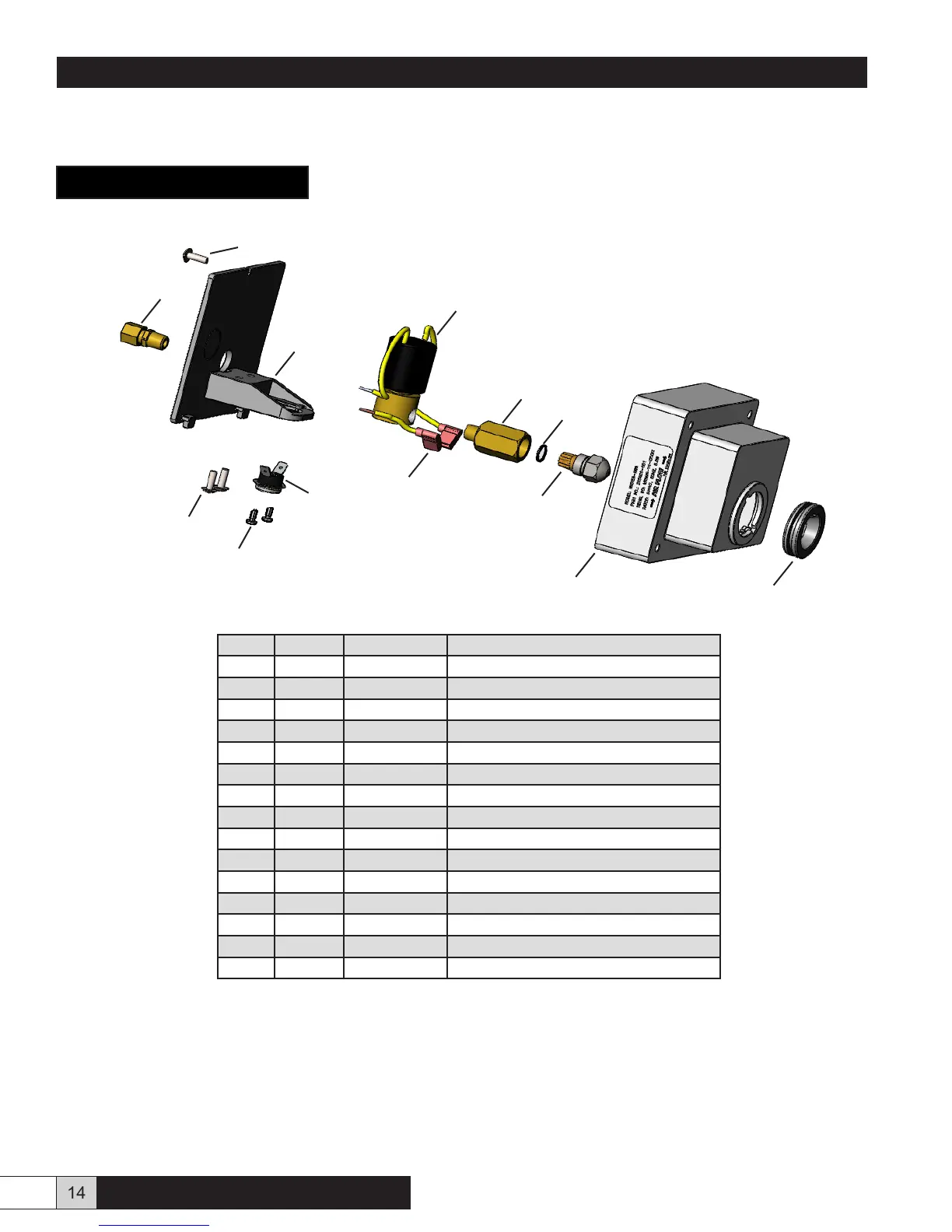

Unit Diagram
7
1
2
3
12
8
10
11
9
4
6
5
15
QTY. ITEM NO. PART NUMBER DESCRIPTION
1 1 259959-001 COVER
1 2 265205-001 THERMOSTAT
1 3 266121-001 G-109C SOLENOID VALVE ASSEMBLY
1 4 266122-001 WIRE ASSEMBLY
2 5 EST-1434 SCREW, SST MACH M4 x 6MM
2 6 142983-003 CHRISTMAS TREE CLIP
1 7 AH-25 ⅛ NPT x ¼” COMPRESSION FITTING
1 8 12006-01 WATER NOZZLE W/FILTER
1 9 160 "O" RING
1 10 259960-001 CASE
1 11 265165-001 GROMMET
1 12 165007-001 NOZZLE ADAPTER
1 13 265037-001 GASKET MISTER-MINI (not shown)
1 14 265160-001 HUMIDISTAT, MECHANICAL (not shown)
1 15 2034 PHILLIPS SCREW #8 - 1/2" S/S
