Trion Mister-MINI - Optional Wiring Connections; Water Plumbing and Connection

Mister- MINI
®
Humidifier
Installation, Operation, & Maintenance Manual
9
www.trioniaq.com
Installation
Plumbing - USE COPPER WATER TUBING ONLY:
1. Install a saddle valve (not included) to a source of water per the instructions printed on the saddle valve package.
2. Fasten a copper water line (not included) of sufcient length to reach from the humidier to the saddle valve.
3. With the end of the copper water line pointing into a bucket or pan, turn on the saddle valve to wash the tubing of any debris
that may get stuck in the solenoid valve seat or clog the spray nozzle. When nished, turn the saddle valve off again.
4. Cut off any excess length of copper water tubing and connect it to the humidier using the nut and ferrule provided on
the humidier. Slide the nut onto the copper water tubing and then slide the ferrule onto the water tubing. Assemble
the nut to the compression tting on the humidier by turning it clockwise 1 ¼ to 1 ½ turns past hand-tight to seal.
5. Turn the saddle valve back on and check the humidier and tubing for leaks.

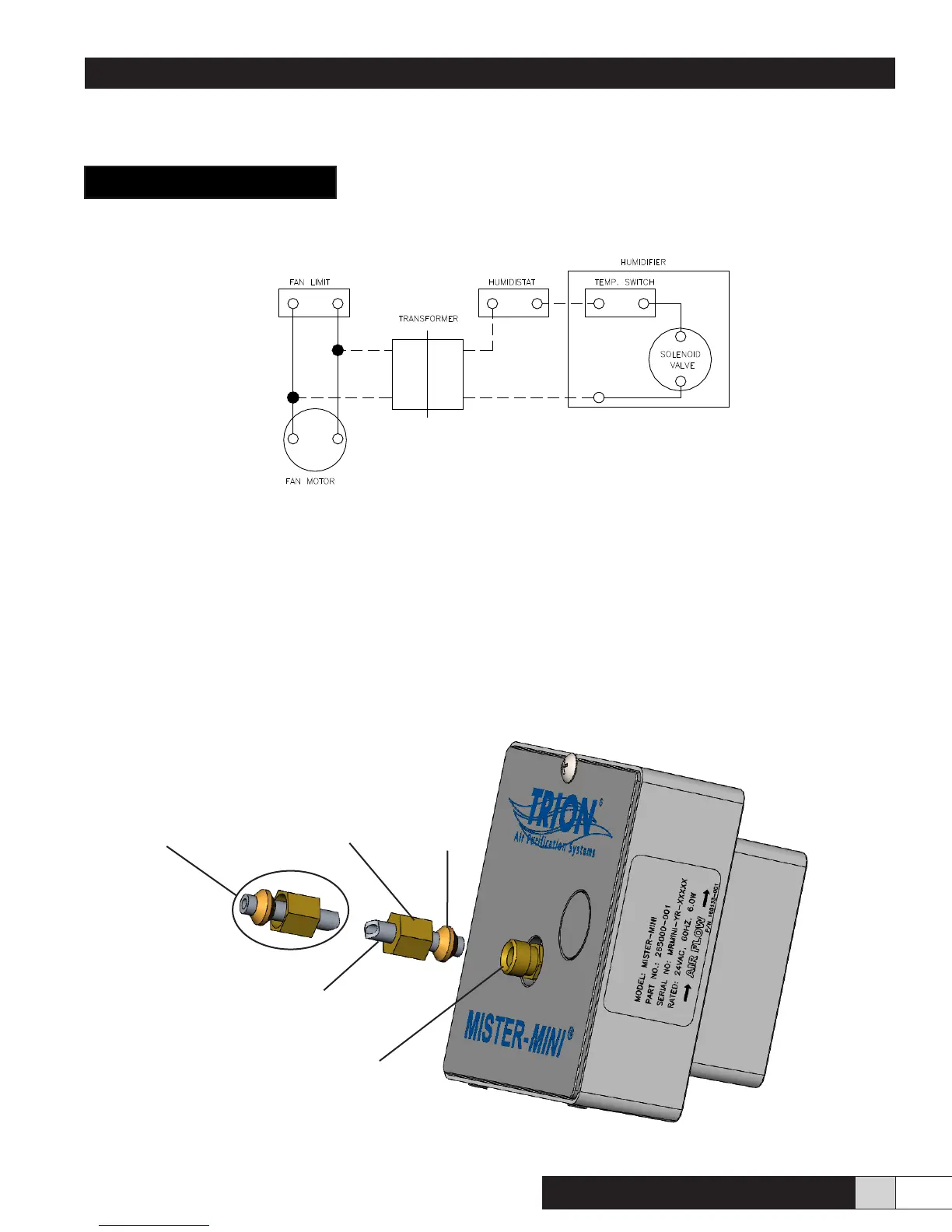

1/4”
Compression
Fitting
Copper
Tubing
Compression
Nut
Optional Wiring
Electrical Connections (24 VAC)
Brass
Ferrule
Nut & Ferrule
supplied with saddle
valve (not included
with humidier)
