Tripp Lite DMCSTP65CBP - Page 7

7

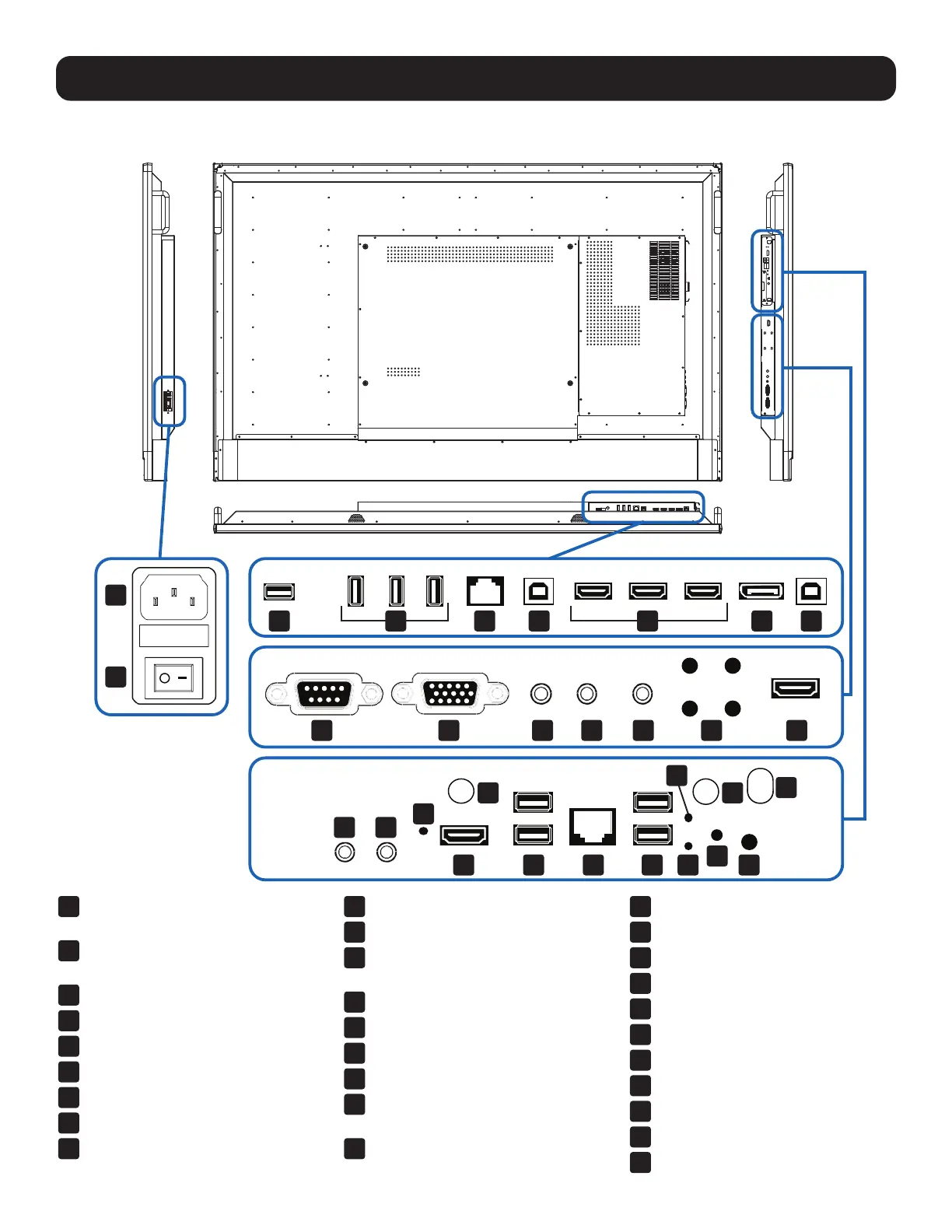

3.2 Rear Panel
2
1
3 4 5 6 7
3. Features
1
AC Inlet
(C14, 100-240V, 50/60 Hz)
2
Master On/Off Switch
(O: Off; —: On)
3
Camera Input (Common USB)
4
USB 2.0 Ports (3 – Android Only)
5
LAN Port (RJ45 Ethernet)
6
USB Touch Port (For HDMI)
7
HDMI Input (3)
8
DisplayPort Input
9
USB Touch Port (For DP/VGA)
10
HDMI Output
11
Wi-Fi Antenna Connectors (4)
12
3.5 mm Audio Output
(Headphone)
13
3.5 mm Audio Input (Microphone)
14
3.5 mm Audio Input (VGA)
15
VGA Video Input (HD15)
16
RS-232 Serial Port (DB9)
17
3.5 mm Audio Output
(Headphone)
18
3.5 mm Audio Input (Microphone)
19
IR Port
20
HDMI Output
21
Wi-Fi Antenna Connectors (2)
22
USB 3.0 Ports (2)
23
LAN Port (RJ45 Ethernet)
24
USB 2.0 Ports (2)
25
PC HDD LED
26
PC Power LED
27
Recessed PC Reset Switch
28
PC Power Button
29
Security Slot for Cable Lock
1
2
3 5 6 8 94 7
101113 12141516
17 18
19
20 22 23 24
25
26
27
28
29
21 21
