TRISAN S8 Appliance categories and test sequences
13 10mA. Fixed RCD.
This test offers trip time only.

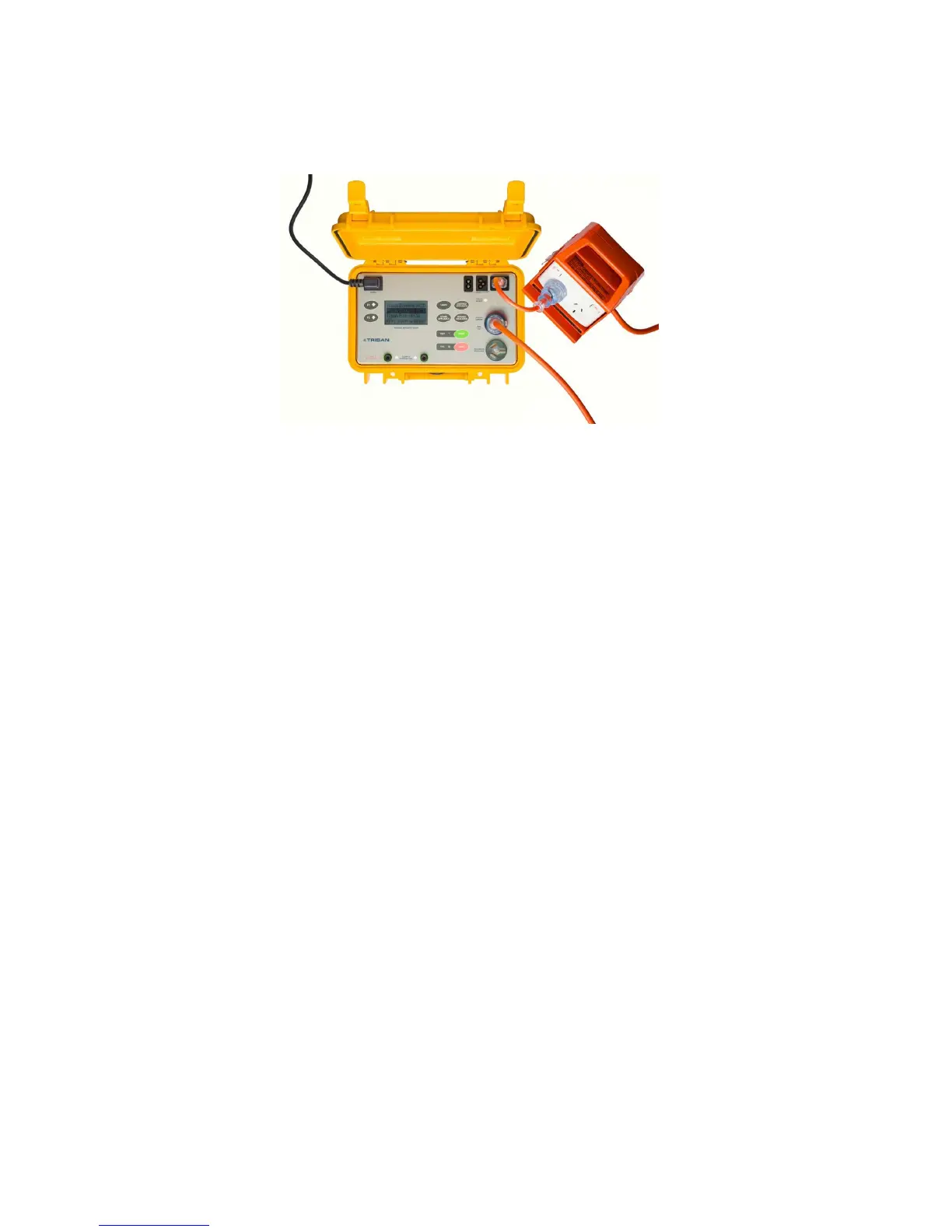

The S8 is plugged into an outlet power socket, it applies the standard earth continuity and active - neutral swap
test while it does self check tests.
Start the selected Fixed RCD test by pressing the “Start” button.
A warning will be displayed stating “Power will fail during this test”.
Press the START button again to initiate the test.
After the RCD trips, the trip time will be displayed in milliseconds together with a “Pass” or “Fail” message.
The S8 will provide power to the display while the RCD is reset and mains power is returned for re-testing
at 180°.
Press START button again to initiate test.
Trip time will be displayed together with a PASS or FAIL.
14 30mA. Fixed RCD.
S8 tests 30mA Fixed RCD as above.
Ensure batteries are installed in tester for RCD tests to function properly.
15
PIEZO Run Test CLASS I
Appliances that have very high input resistance or high impedance above 100k ohms.
Examples of these appliances: piezo electric starts for gas ovens and switch mode power supplies.
Tests conducted as follows:
1. Earth resistance < 1ohm. ……………...PASS
2. Leakage current < 5mA. ………………PASS
3. Duration of test 60 seconds touch and release RESET button to terminate test sooner.
