10
Screw top fixing screw into position leaving the
base of the screw head protruding 6 mm out
from the wall.
Entry positions for the mains water are from the
bottom or from the rear.
Cable entry is via the top or rear.
Note: Deviations from the designated entry
points will invalidate product approvals.

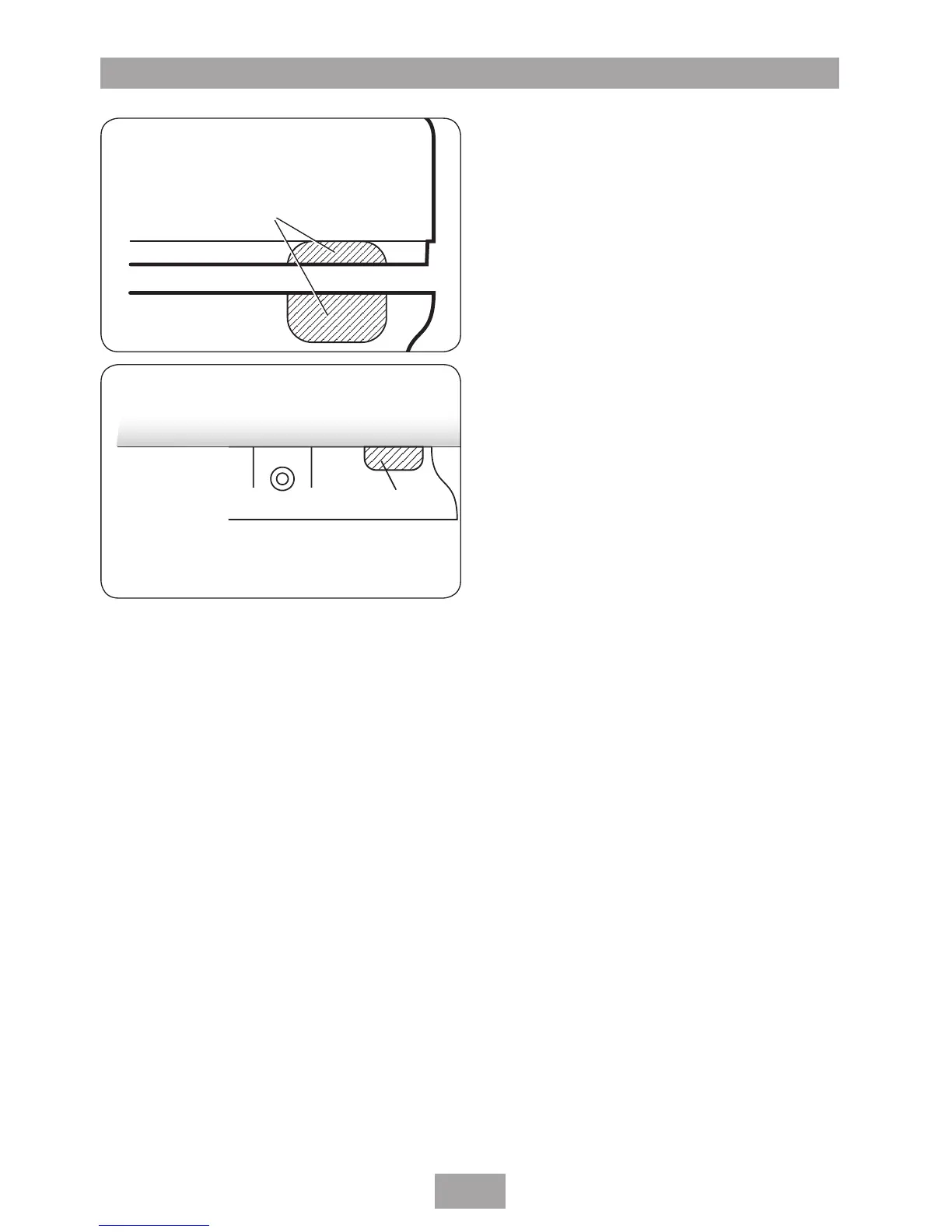

If a bottom surface entry is required for the
mains cold water then the necessary hole will
need to be cut out in the trimplate and cover
(Fig.13).
If a surface cable entry from the top is required
then the relevant hole in the backplate will need
to be cut out (Fig.14).
Hook the backplate over the top screw and fit
the bottom fixing screw into position.
Do not fully tighten the screws at this stage,
as the fixing holes are elongated to allow for
out of square adjustment after the plumbing
connections have been completed.
