FITTING THE REMOTE PACK
IMPORTANT: The remote pack must be
mounted on a flat surface which covers
the full width and length of the backplate.
It is important that the wall surface is flat
otherwise difficulty may be encountered
when fitting the cover and subsequent
operation of the unit may be impaired.
The remote pack must always be positioned
so that there is easy access for installation and
maintenance. Where this is difficult or a suitable
wall is not available, a mounting bracket similar
to that shown in Fig.9 can be used.
Position the remote pack in a dry area, ideally
in a linen or airing cupboard. It must be well
ventilated and not covered with towels, sheets,
etc.
IMPORTANT: The remote pack MUST be
mounted vertically. DO NOT MOUNT IT
HORIZONTALLY.
Procedure
Unscrew the top and bottom retaining screws
(Fig.10) and lift the cover from the backplate.
To access the pipe and cable connections,
remove the two screws (Fig.11) and take off
the trimplate.
After choosing the site for the shower, use the
backplate as a template and mark two fixing
holes (Fig.12).
Drill and plug the wall.
(An appropriate drill bit should be used. If the
wall is brick, plasterboard or a soft building block,
appropriate wall plugs and screws should be
fitted).
WARNING!
The remote pack must NOT be sited in
loft spaces where it may be subjected
to freezing conditions in winter
months or high ambient temperatures
during summer months.
If mounting in an airing cupboard,
make sure clothing items, etc DO
NOT restrict the air flow around the
remote pack.

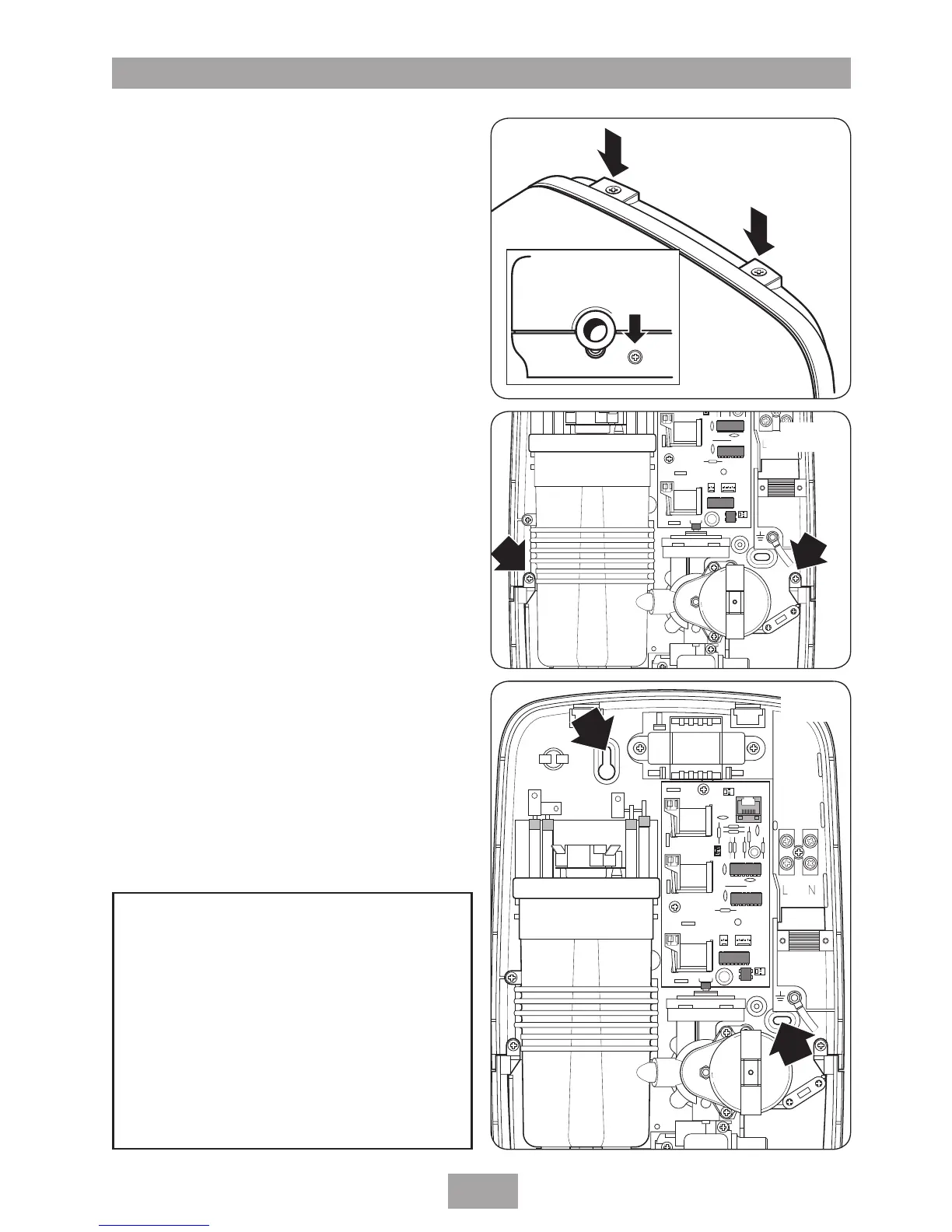

Fig.10
Fig.11
Fig.12
