Triton ASPIRANTE User Manual

Aspirante Remote electric shower
3
Aspirante Remote electric shower

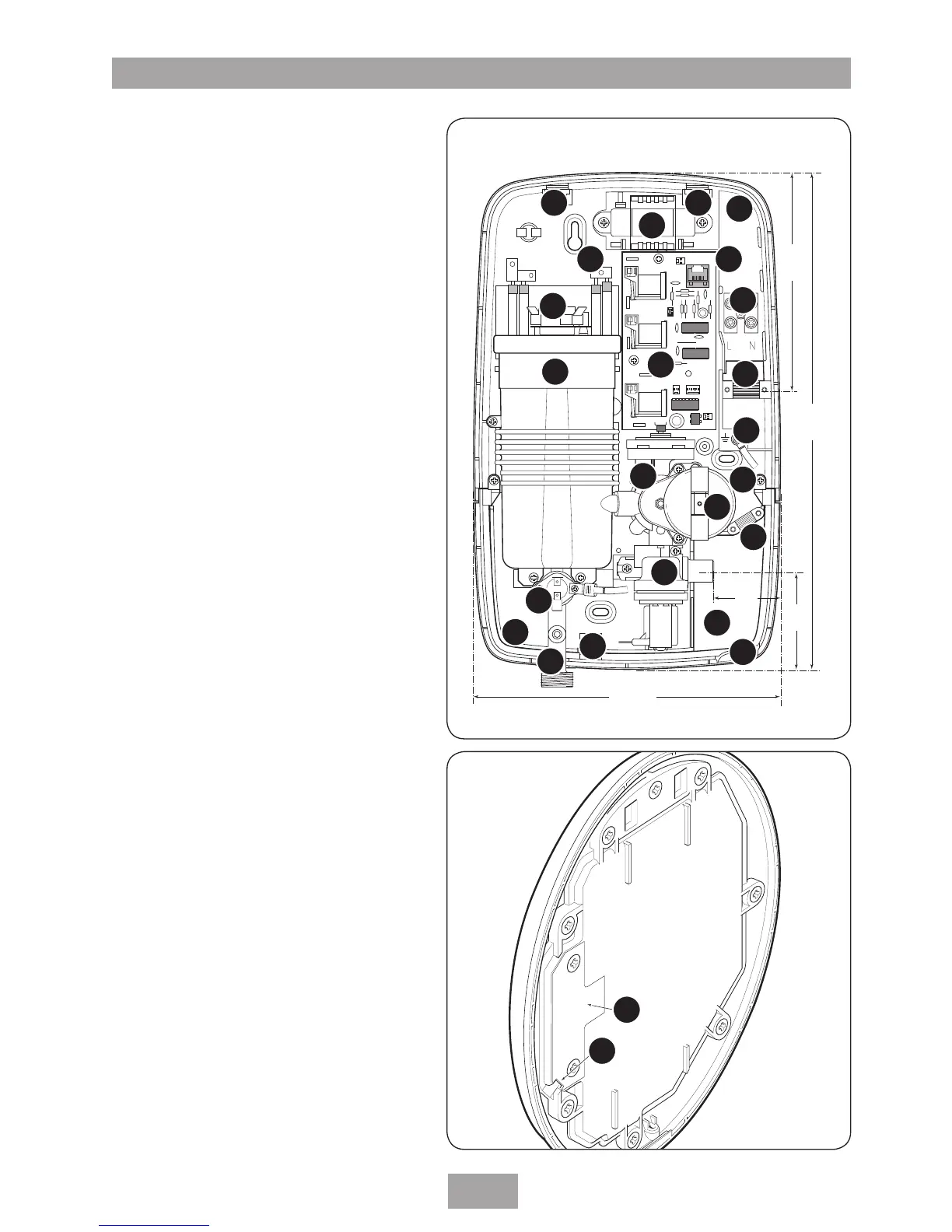

MAIN COMPONENTS
Remote pack (Fig.1)
1 Top cable entry
2 Bottom pipe entry
3 Rear pipe entry area
4 Rear cable entry area
5 Wall screw fixing
6 Terminal block
7 Printed circuit board
8 Stabilising valve
9 Solenoid valve
10 Guide pockets
11 Can and element assembly
12 Thermal safety cut-out (main)
13 Earth connection
14 Control cable clamp
15 Thermal cut-out (outlet)
16 Outlet pipe
17 Transformer
18 Connector socket
19 Stepper motor
20 Trimplate
Control panel (Fig.2)
21 Control cable exit
22 Access plate
Pack contents
Control panel
Remote pack
Heated water tube (white)
PRD tube (clear)
Connecting cable
Five position showerhead
Bulkhead fittings
Instructions, guarantee, template etc.
Riser rail kit boxed separately
338
mm
68
mm
145
mm
208 mm
47
mm
Fig.1
Fig.2
10
22
8
19
18
17
20
16
15
14
13
12
11
9
7
4
3
2
6
5
1
10
10
5
21

Triton ASPIRANTE Specifications

General

Type	Electric Shower
Start/Stop Button	Yes
Installation Type	Wall mounted
Material	Plastic
Warranty	2 years
Outlet Type	1/2 inch BSP
