Set up – Connect to XBOX 360TM

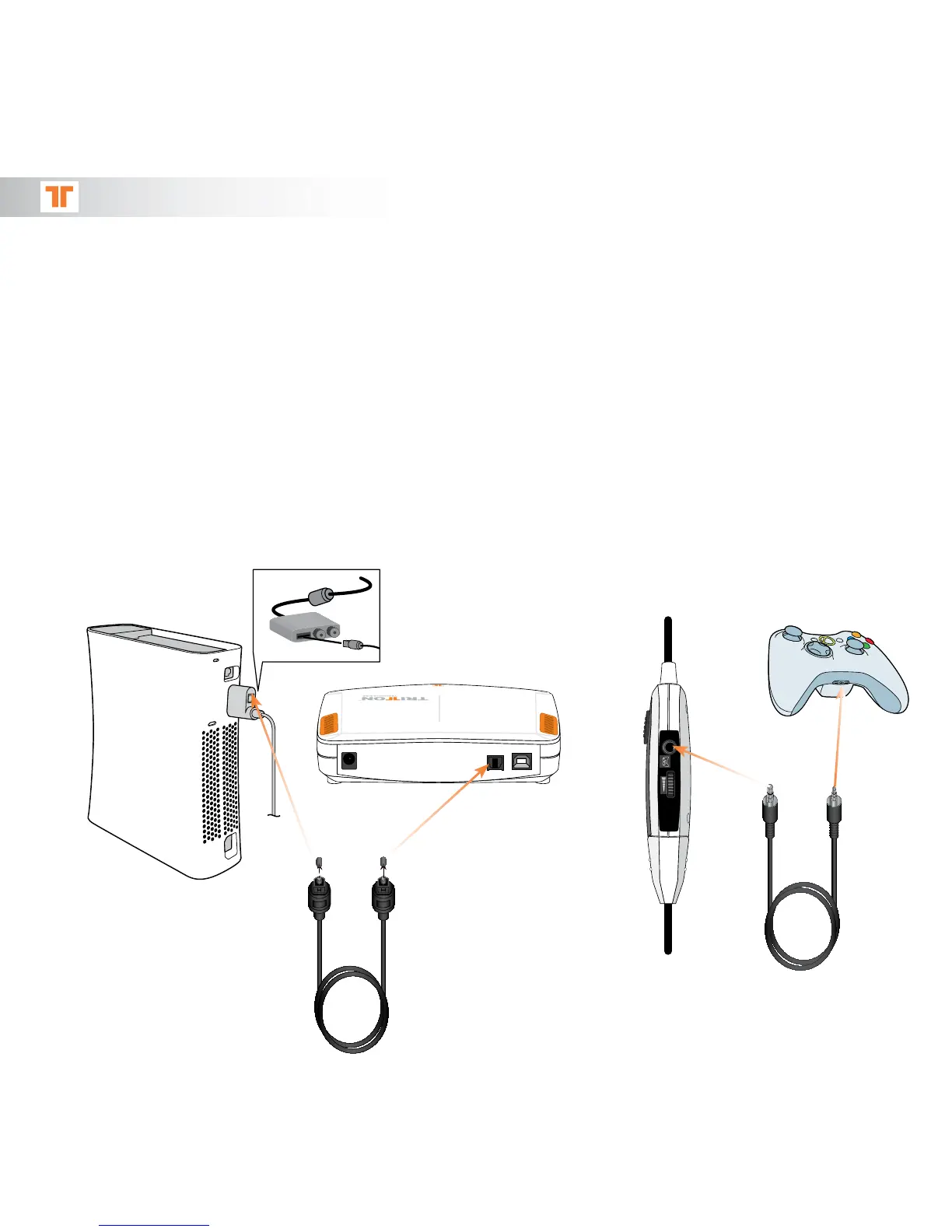

1. (See Diagram) Plug one end of the optical cable into the rear of the XBOX 360
a. Must have one of the following:
i. High Definition AV cable
ii. HD Audio dongle (XBOX 360 with HDMI output only)
2. (See Diagram) Plug the other end of the optical cable into the rear of the AX 720 Amp
3. (See Diagram) Connect the large end of the XBOX Live communication link cable to the in-line
volume controller and the smaller end into the XBOX360 controller
4. Power on the XBOX 360 and the AX 720. In the XBOX Dashboard, select System Settings >
Console Settings > Audio > Digital Output and select “Dolby Digital 5.1” Watch to ensure
that the “Dolby Digital” light on audio controller illuminates as a game or movie starts
5. To confirm XBOX Live settings, press the “XBOX Globe Button” when a game is loaded, and
go to Personal Settings > Voice. Ensure that “Headset only” is selected. This is especially
important if you have previously used the TRITTON AX360 with this XBOX
1 2
3
Larger jack size = Inline controller
To Next Page
