Set Up – AX 720 Optical Interface
Please complete before proceeding to the platform speciF ic directions below.
(For PC analog setup, skip these steps and proceed to page 11.)

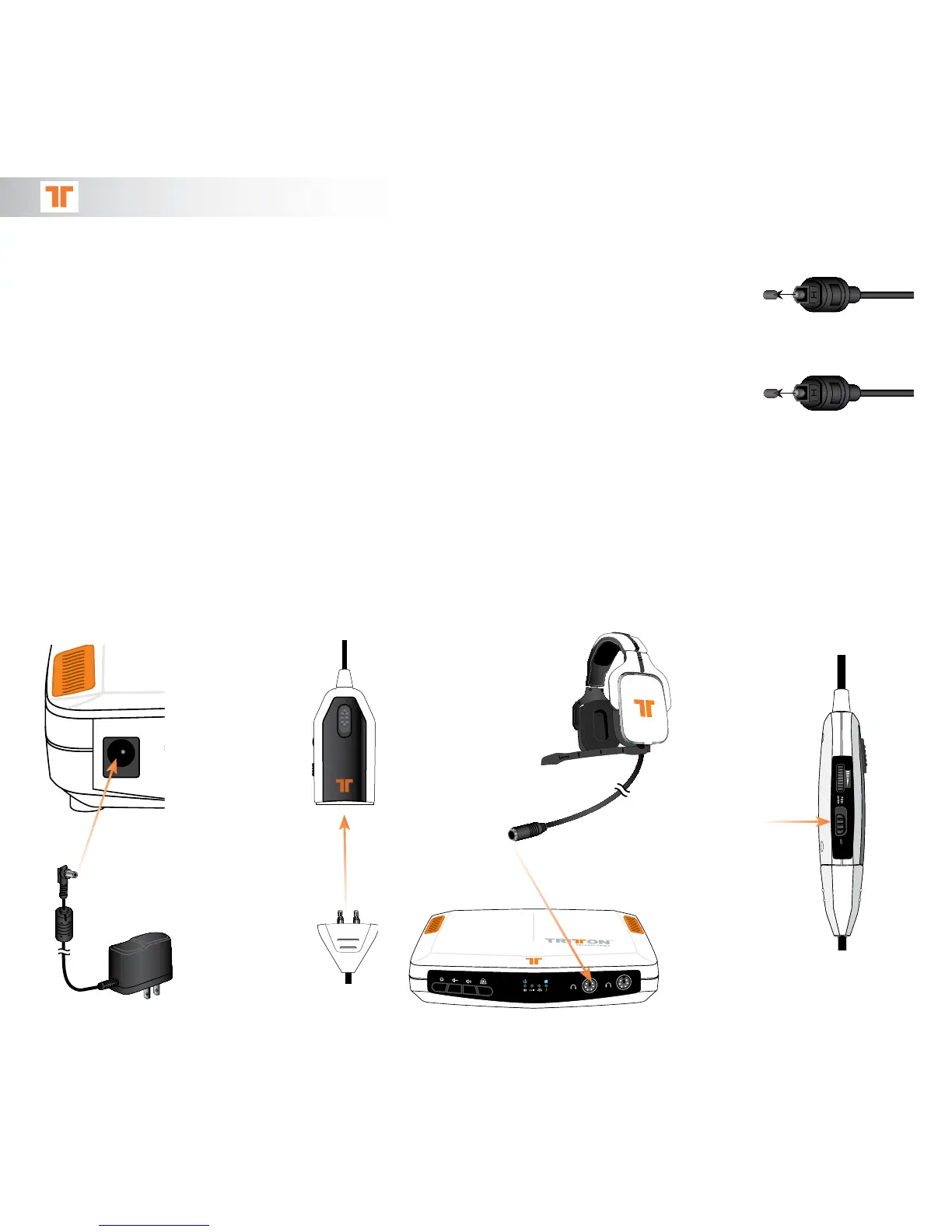

1. (See Diagram) Remove protective caps from the optical cable
2. (See Diagram) Connect AC Adaptor to AX 720 Amp power jack
3. (See Diagram) Plug the AX 720 headset into the in-line audio controller
4. (See Diagram) Plug the AX 720 round 6-pin plug into the front of the AX 720 Amp
5. (See Diagram) Set the “Amp / To PC” switch on the inline controller to “Amp”
6. Plug AC Adaptor into wall outlet
PLEASE PROCEED TO INDIVIDUAL XBOX 360, PS3 or PC with OPTICAL CONNECTION
1
2 3 5
Images not to scale.
Amp/PC Switch
4
To Next Page
