STEP 4
PARTS REQUIRED:
1 pc - #5 Horizontal Frame Brace U-Tube 4 pcs - #26 M6 x 70 mm Allen Head Bolt
1 pc - #12 Horizontal Tube 6 pcs - #27 M6 Lock Nut
2 pcs - #24 M6 x 50 mm Allen Head Bolt 1 pc - #31 Wrench
1 pc - #36 Allen Wrench
Attach Horizontal Frame Brace U-Tube (#5) to tubes from assembly STEP 3 using Bolts (#26), Lock
Nuts (#27) and Washers (#22) as shown in FIGURE 4.
Attach Horizontal Tube (#12) to tubes (#2) using Bolts (#24) , Lock Nuts and Washers (#22) (#27)
as shown in FIGURE 4.
Use Wrench (#31) and Allen Wrench (#36) to tighten all Bolts.
Tighten, but do not overtighten.
2
2
7
7
8
6
Note: Do not use
this hole this step.
3
4
5
#5 U-tube assemble Inside
12
24
27
24
27
26
27
27
26
27
27
26
26

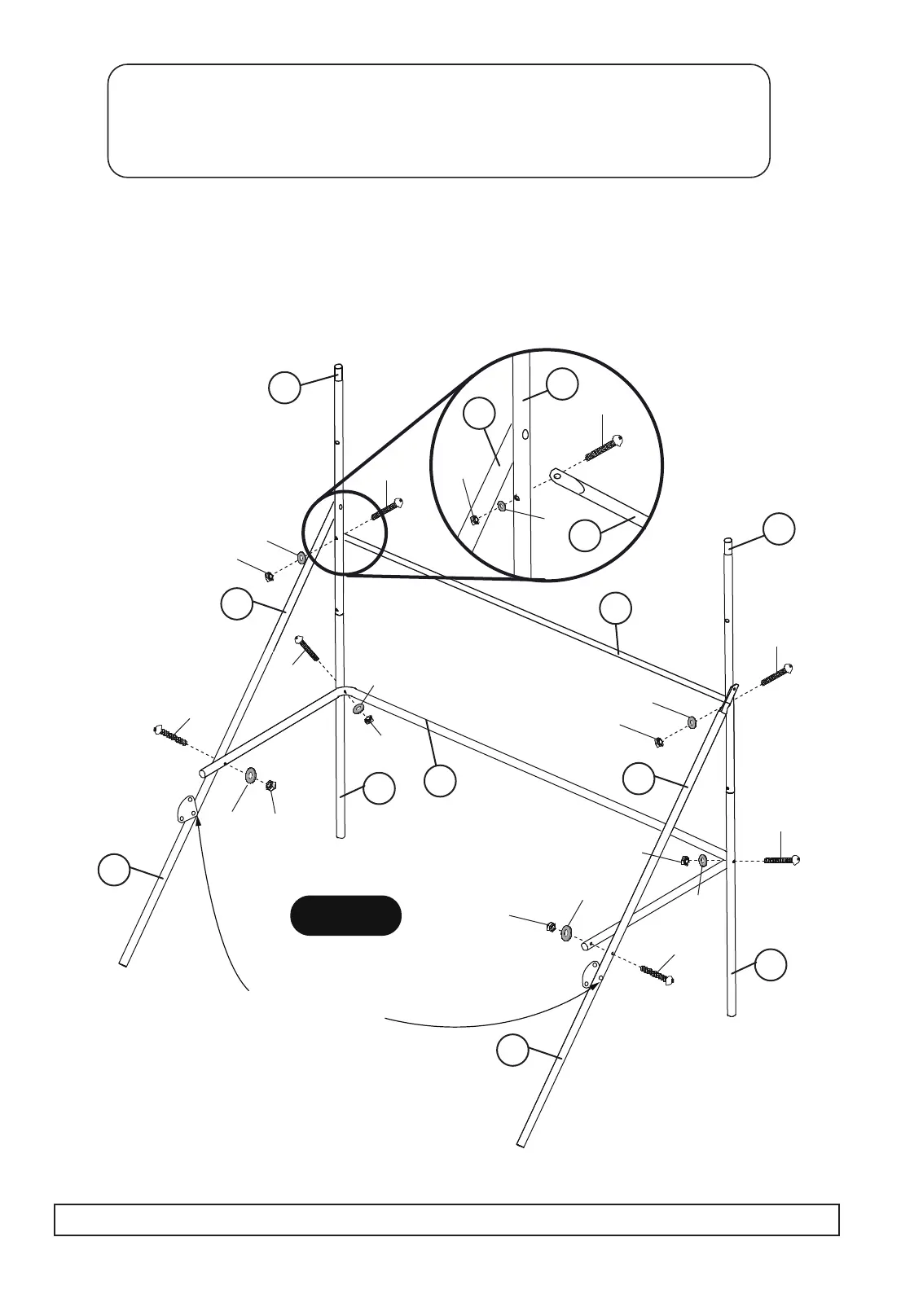

FIGURE 4
24
27
22
12
2
7
6
For Customer Service Call 1-888-996-2729
© 2017`Escalade S por t s
All Rights Reserved
6 pcs - #22 M6 x 1 mm Thick Washer
22
22
22
22
22
22
Please study each diagram closely and read all assembly notes to insure correct assembly
