Do not use this hole
Spring lock on top
Use this hole
STEP 5
PARTS REQUIRED:
2 pcs - #1 Board L-Tube Top 2 pcs - #32 M6 x 92 mm Allen Head Bolt
2 pcs - #9 Ramp Tube 2 pcs - #33 Locking Pin
2 pcs - #10 Ramp L-Tube 2 pcs - #39
M6 x 2 mm Thick Plastic Washer
2 pcs - #22 M6 x 1 mm Thick Washer 1 pc - #31 Wrench
2 pcs - #27 M6 Lock Nut 1 pc - #36 Allen Wrench

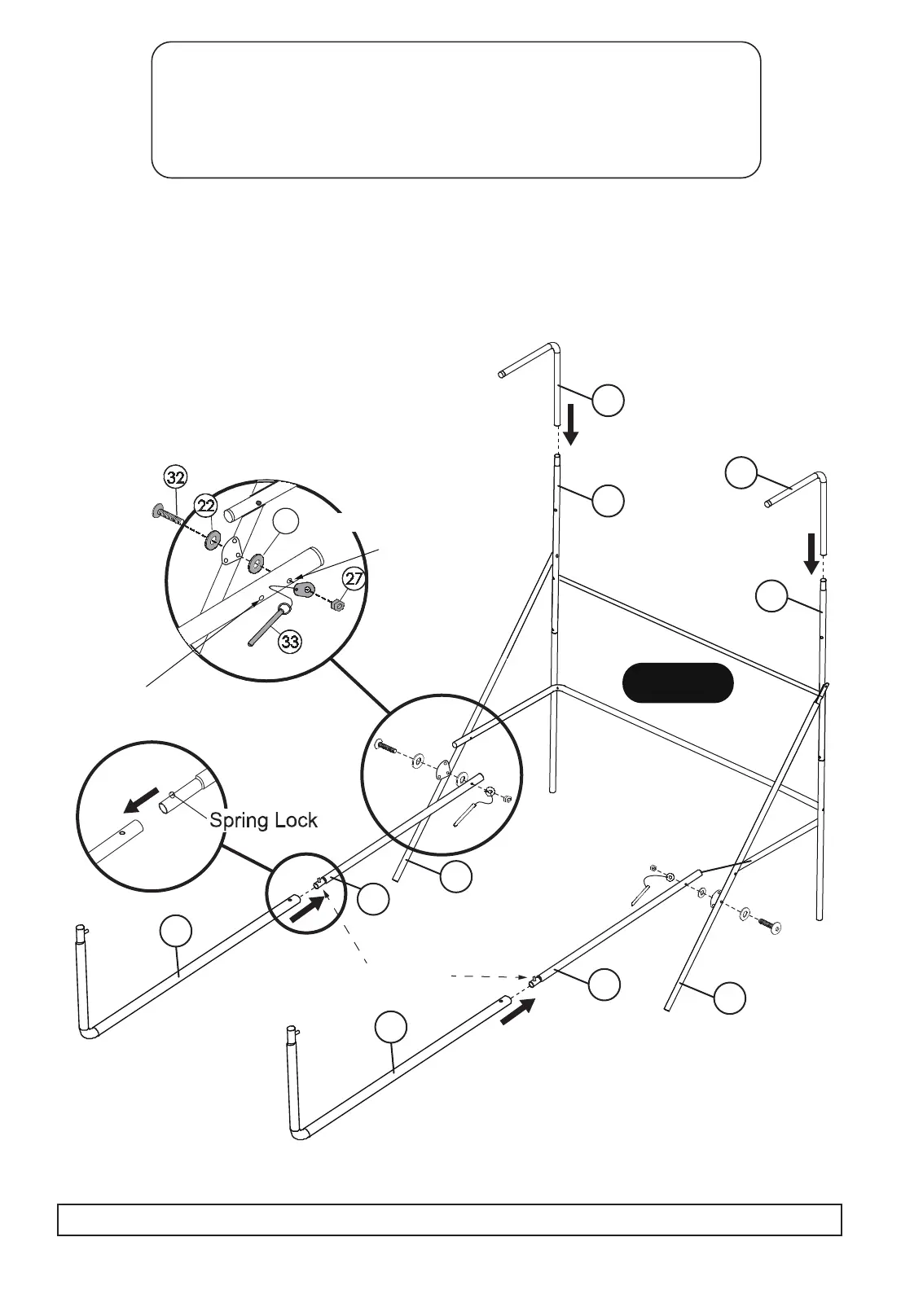

Insert Board L-Tubes (#1) into Board Tubes (#2) as shown in FIGURE 5.
Attach Ramp Tubes (#9) to Left Mounting Tube (#6) and Right Mounting Tube (#8) using Bolts (#32),
Washers (#22), Washers (#39), Locking Pins (#33) and Lock Nuts (#27) as shown in FIGURE 5.
Use Wrench (#31) and Allen Wrench (#36) to tighten Bolts.
Note: This is a pivot point. “Snug” tighten
Lock Nuts (#27) only. Make sure this assembly
pivots freely.
Attach Ramp L-Tubes (#10) to Ramp Tubes (#9) using
Spring Locks as shown in FIGURE 5.
FIGURE 5
10
10
9
9
8
6
2
2
1
1
39
7
For Customer Service Call 1-888-996-2729
© 2017 Escalade S por t s
All Rights Reserved
Plastic washer
Please study each diagram closely and read all assembly notes to insure correct assembly
