Installation of the Upper Mounts
Note:
• For Tiger 800 and Tiger 800XC up to VIN 583614,
the rear rack has been removed during
installation of the pannier third mounts,
therefore continue from step 2.
• For Tiger 800, Tiger 800XC, Tiger 800 XR,
Tiger 800 XR
X, Tiger 800 XCX, Tiger 800 XRT,
Tiger 800 XC
A, Tiger 800 XRX LRH, Tiger XR,
Tiger XRx, Tiger XC and Tiger XCx from
VIN 583615 continue from step 1.

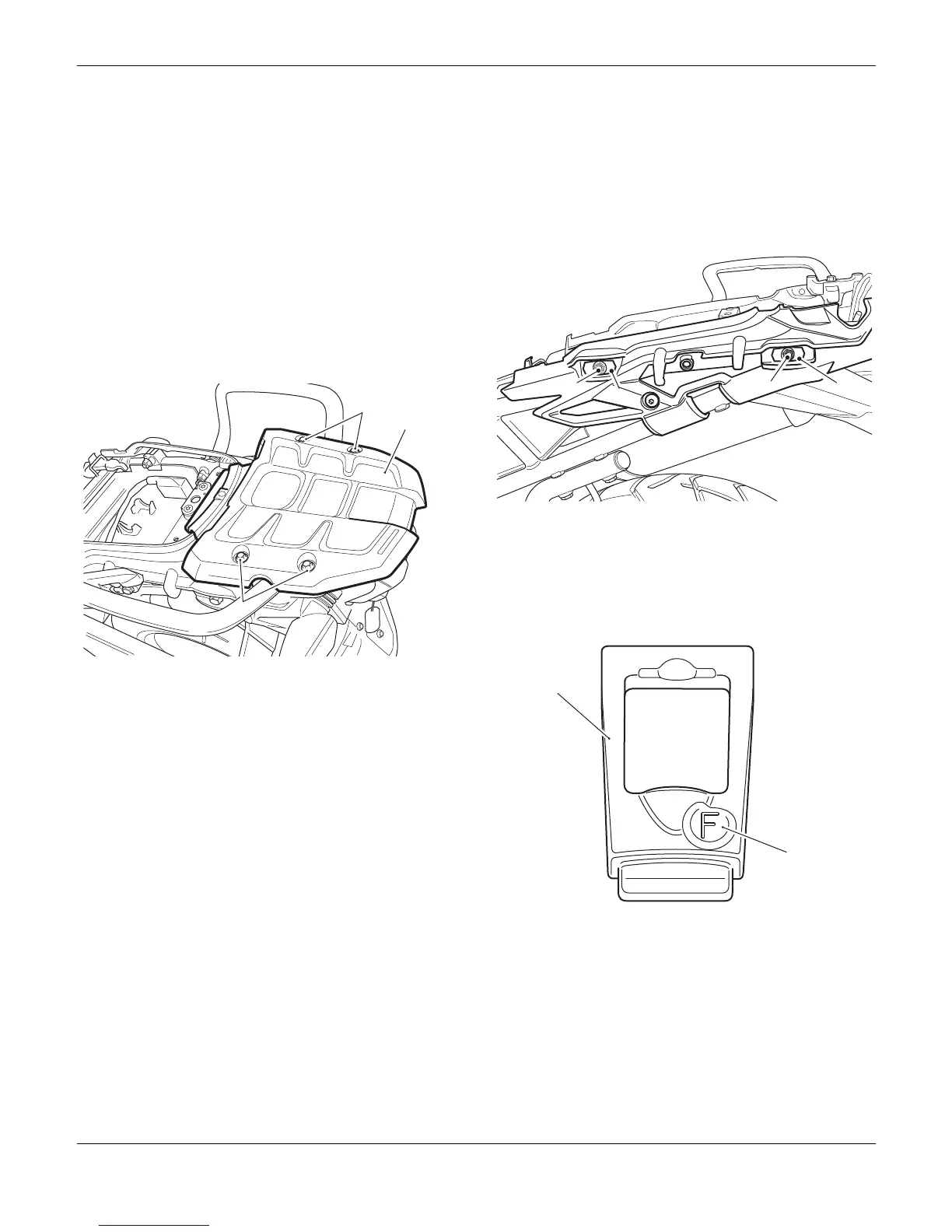

1. Remove the four fixings, retain for reuse and
remove the rear rack moulding.
1. Rear rack
2. Fixings
2. Remove the two nuts and bolts and remove the
two left hand pannier mounting plates.
• Retain the plates for reuse
• Retain the bolts for reuse if the motorcycle is
to be returned to its original condition
• Discard the nuts.
1. Bolts/nuts (nuts not shown)
2. Pannier mounting plates
Note:
• The front upper pannier mounts are identified by
an 'F' on the underside face, as shown.
1. Front upper pannier mount
2. 'F' marking
1
2
2
2
2
1
1
2
1
