Triumph A9508186 - Template Cutting for Battery Tray

6 of 20

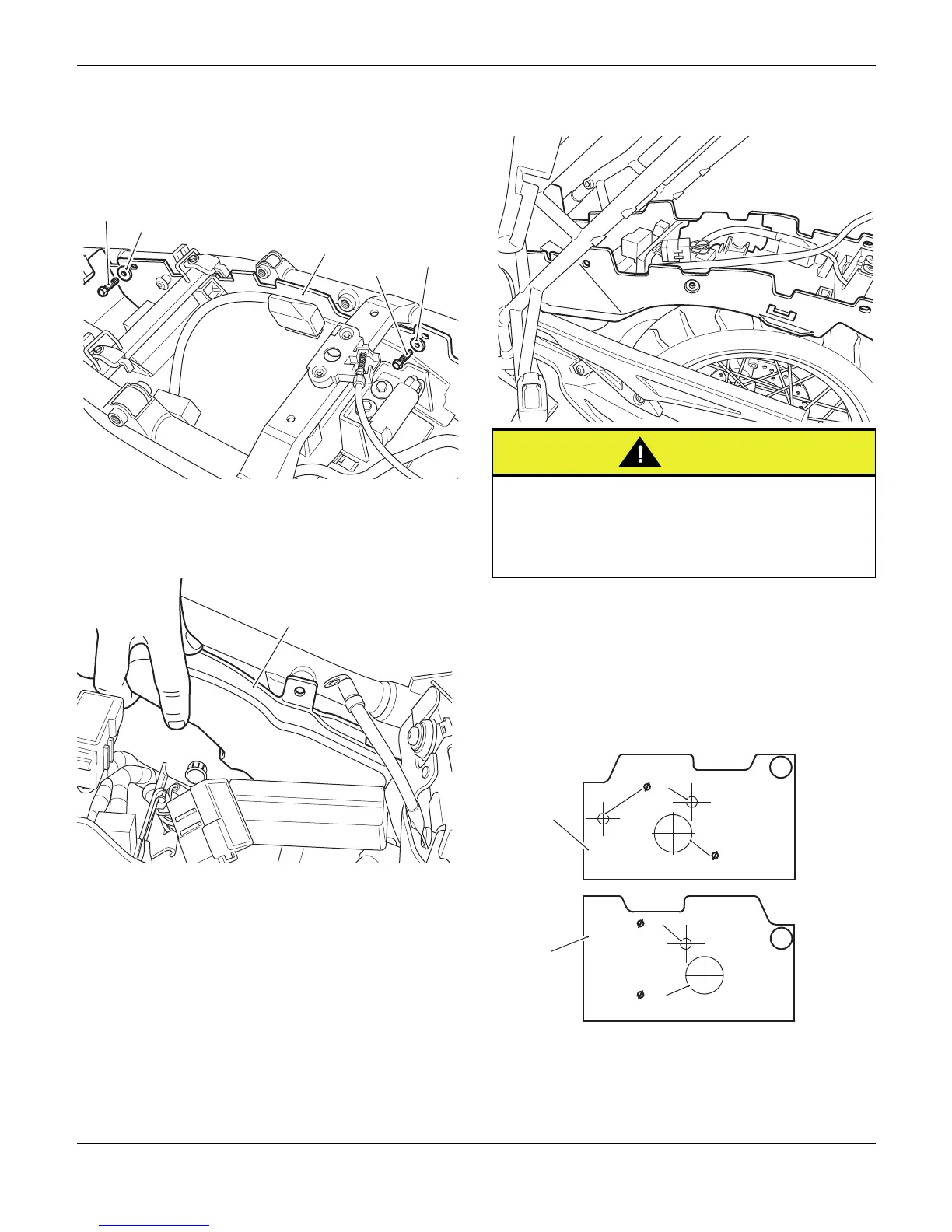

9. Remove the four screws and washers securing
the battery tray moulding to the motorcycle
frame. Note, one of the screws also retains the
air intake duct. Discard the screws. Retain the
washers for reuse.
1. Battery tray moulding
2. Screw (right hand shown)
3. Washer (right hand shown)
10. Remove the air intake duct.
1. Air intake duct
11. Carefully lower the battery tray moulding to rest
on the rear tyre.
Note:
• The template provided is actual size. When
cutting out the left hand and right hand images
ensure the cut is made accurately along the
outline.
12. Collect the template from the kit and carefully
cut out the left hand template, upper image '1'.
1. Template '1', left hand
2. Template '2', right hand
2
1
2
3
3
1
Caution
When cutting the left hand and right hand
templates from the template sheet, always use the
correct cutting tools and personal protection
equipment. Failure to use these may result in
personal injury.
24mm
7mm
24mm
7mm
1
2
4
2
1
