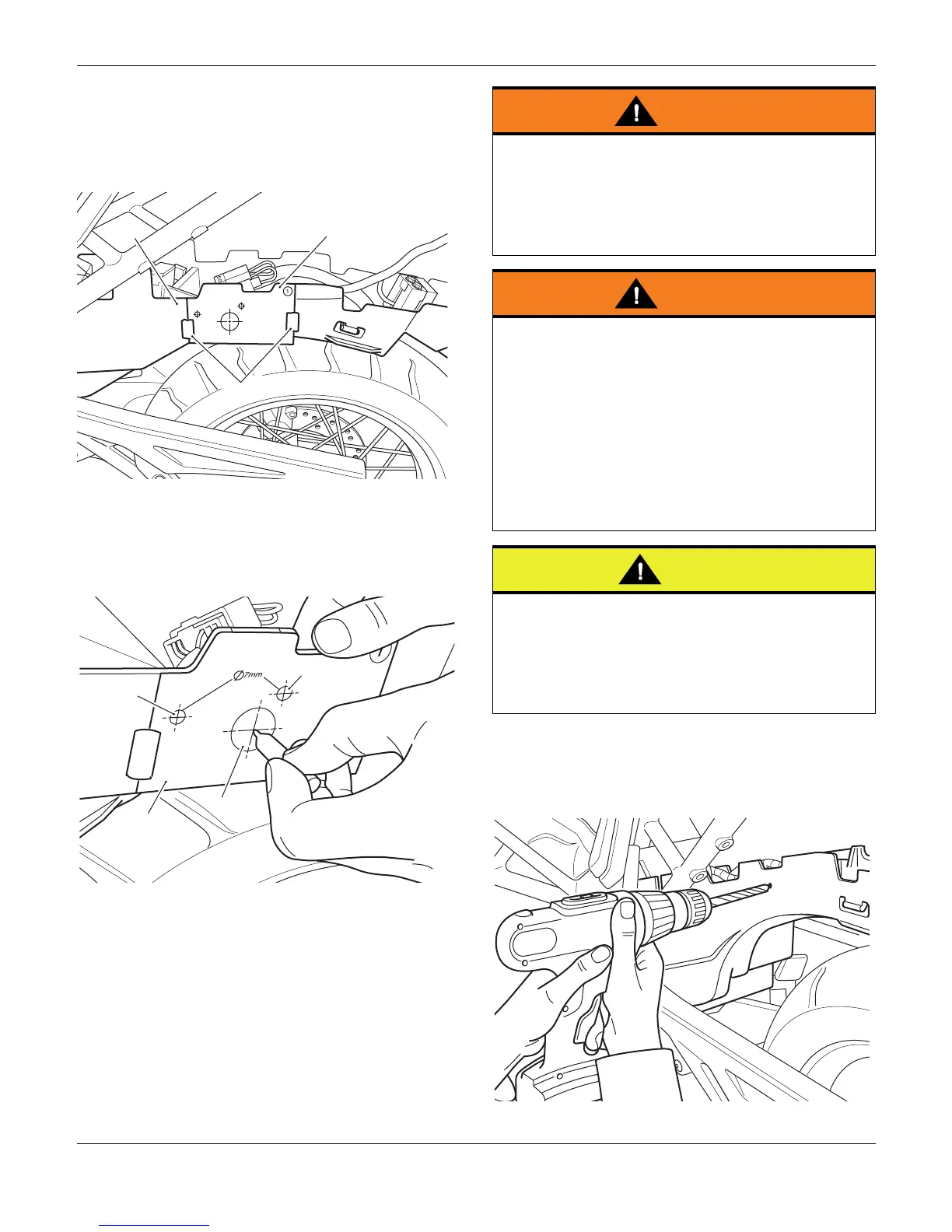

13. Position the left hand template to the left hand
outer edge of the battery tray moulding, as
shown. Secure the template to the battery tray
moulding using a suitable adhesive masking tape
(not supplied in the kit).
1. Battery tray moulding
2. Template '1', left hand
3. Adhesive tape
14. Carefully mark the centre of the 7 mm and
24 mm holes indicated on the template.
1. Template
2. Hole, 7 mm
3. Hole, 24 mm
15. Note the position of the 24 mm hole, remove and
discard the template.
16. Repeat steps 12 to 15 for the right hand template
'2' on the right hand side of the battery tray
moulding.
17. Using the markings as a guide carefully drill two
7 mm holes on the left hand side of the battery
tray moulding and one 7 mm hole in the right
hand side of the battery tray moulding.
When drilling the battery tray moulding take
extreme care not to allow the drill bit to come into
contact with any part of the motorcycle tyre. Any
damage to the tyre could result in unexpected
deflation, leading to loss of motorcycle control and
an accident.
Before drilling or cutting any holes in the battery
tray moulding ensure all wiring harnesses and
electrical connectors are moved away from the area
on the battery tray moulding which is to be drilled
or cut. Failure to move the wiring harnesses or
electrical connectors away from the drilling or
cutting area could result in damage to a wiring
harness or electrical connector and cause a
hazardous electrical problem. This could give rise to
a dangerous riding condition resulting in a fire, loss
of motorcycle control and an accident.
Care must be taken when drilling or cutting any
holes in the battery tray moulding. Damage to the
battery tray moulding may result from inadequate
care while drilling or cutting any holes rendering the
battery tray moulding unfit for further use and
requiring replacement.
