8 of 20
18. Using the markings provided carefully drill
suitable size pilot holes for the 24 mm sheet
metal punch.
19. Using the sheet metal punch carefully cut the
24 mm hole in the left hand and right hand side
of the battery tray moulding.
20. Remove any burrs from around all drilled/cut
holes which may have resulted from the drilling/
cutting process.

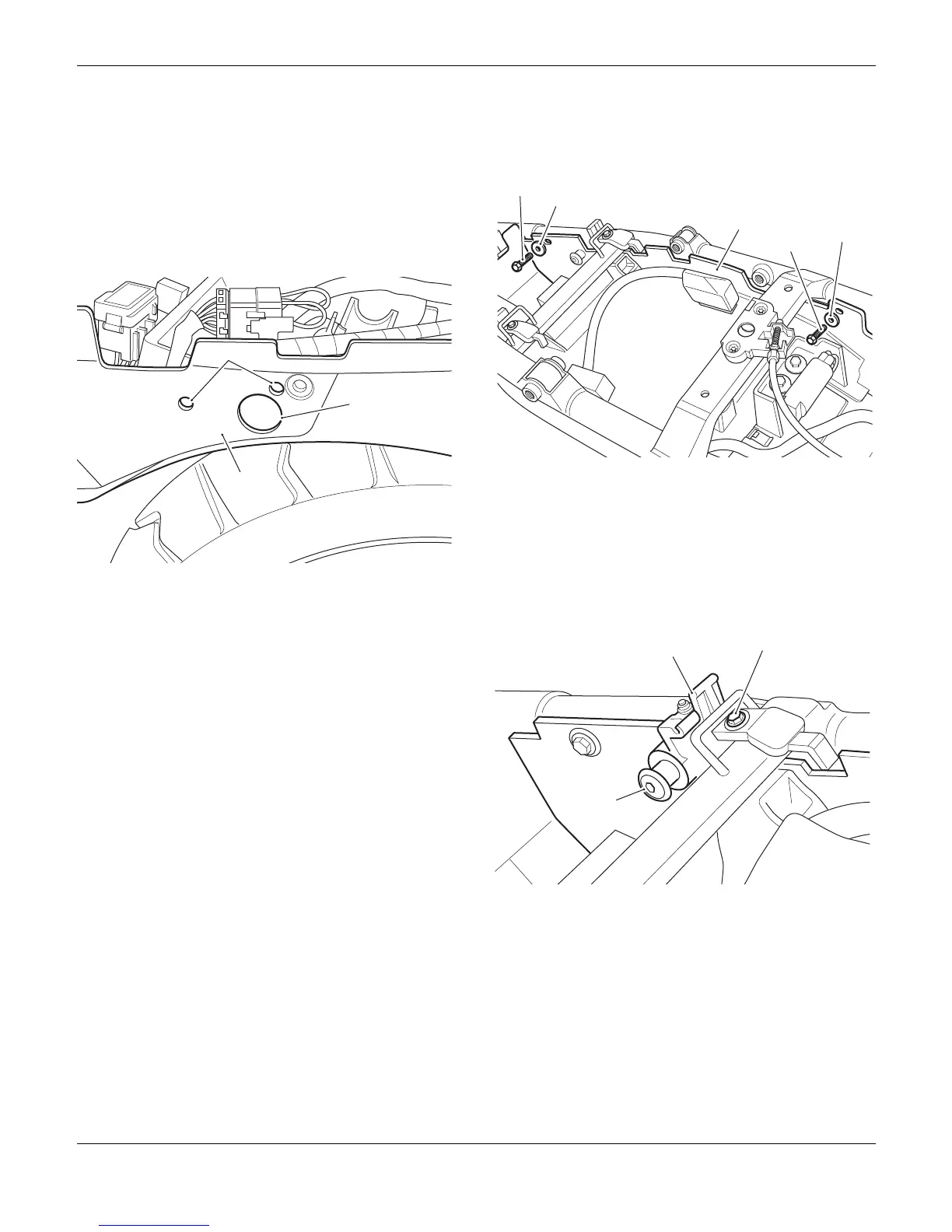

1. Battery tray moulding
2. Hole, 7 mm (left hand shown)
3. Hole, 24 mm (left hand shown)
21. Carefully refit the battery tray moulding into
position.
22. Refit the air intake duct. Ensure the air duct
locates correctly on the air box.
23. Using the four M6 x 20 mm screws from the kit,
together with the original washers secure the
battery tray moulding and air intake duct to the
motorcycle frame. Tighten the fixings to 6Nm.
1. Battery tray moulding
2. Screw, M6 x 20 mm (right hand shown)
3. Washer (right hand shown)
24. Refit the seat hook mouldings and secure with
the original shouldered bolts and M6 x 20 mm
screws. Tighten the fixings to 5Nm.
1. Seat hook moulding (right hand shown)
2. Shouldered bolt (right hand shown)
3. Screw, M6 x 20 mm (right hand shown)
