Maintenance and Adjustment
118
Front Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorised
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.
Street Scrambler and Street Twin
2
1
3
1. Reservoir cap retaining screws
2. UPPER level line
3. LOWER level line

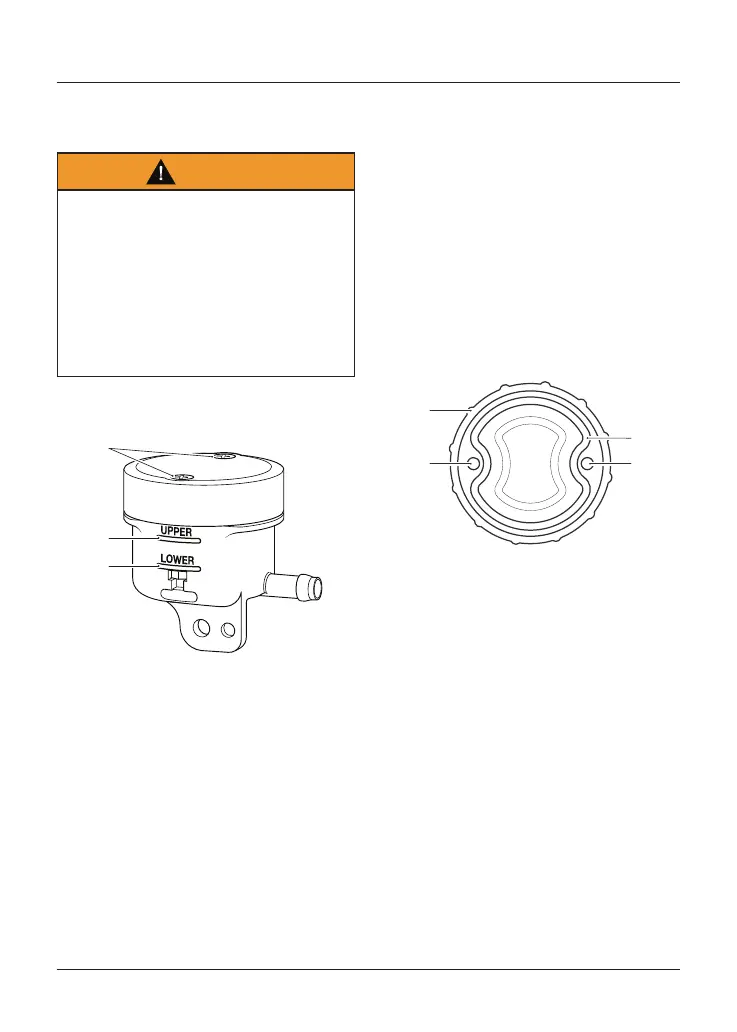

To inspect the front brake fluid level:
• Check the level of brake fluid visible
in the UPPER and LOWER section of
the reservoir.
• The brake fluid level in the reservoir
must be kept between the UPPER
and LOWER level lines (reservoir
held horizontal).
To adjust the front brake fluid level:
• Release the reservoir cap retaining
screws and remove the reservoir
cap and the diaphragm seal.
• Fill the reservoir to the UPPER level
line using new DOT 4 brake fluid
from a sealed container.
• Fit the diaphragm seal into the
reservoir cap and make sure that
the holes for the fixings in the
reservoir cap and the diaphragm
seal are correctly aligned.
1
2
33
1. Reservoir cap
2. Diaphragm seal
3. Reservoir cap retaining screw holes
• Install the reservoir cap retaining
screws into the reservoir cap and
diaphragm seal assembly.
