Triumph Bonneville T100 Series User Manual

Maintenance and Adjustment
125

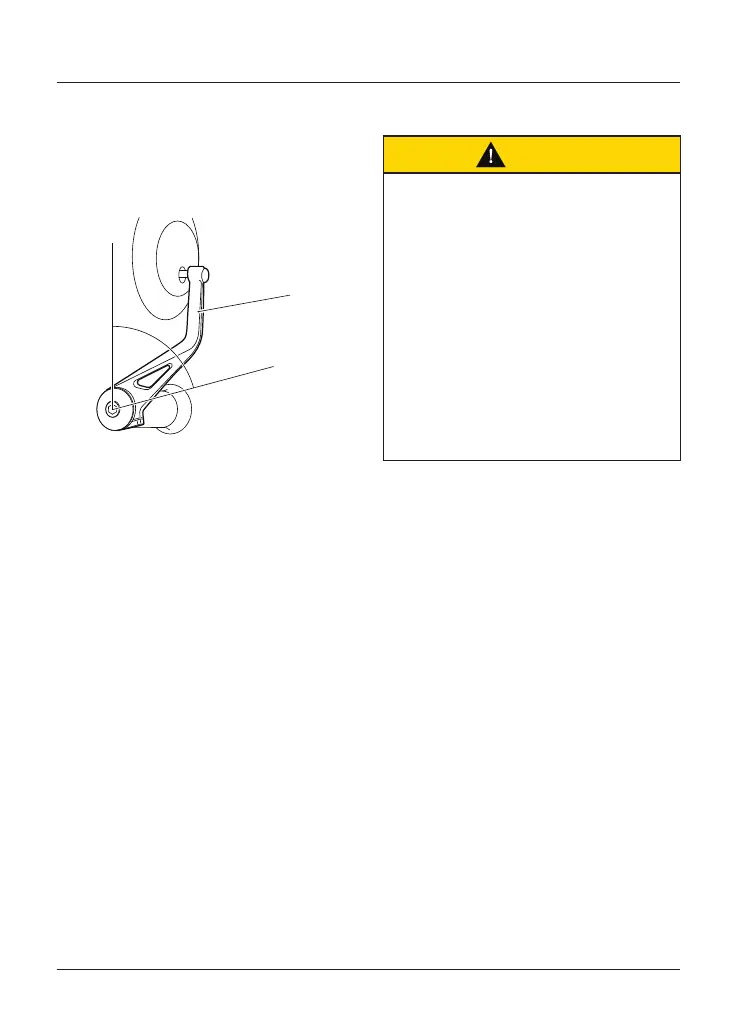

The bar end mirrors will be set by your
authorised Triumph dealer and will not
normally require any adjustment. Should
adjustment be necessary, do not rotate
the mirror beyond 75°, measured from
the vertical section of the mirror arm.
75°
1
1. Mirror arm vertical section
Steering/Wheel Bearings
Caution
To prevent risk of injury from
the motorcycle falling during the
inspection, make sure that the
motorcycle is stabilised and secured
on a suitable support.
Do not exert extreme force against
each wheel or rock each wheel
vigorously as this may cause the
motorcycle to become unstable
and cause injury by falling from its
support.
Make sure that the position of the
support block will not cause damage to
the motorcycle.

Triumph Bonneville T100 Series Specifications

General

Displacement	900 cc
Transmission	5-speed
Seat Height	790 mm (31.1 in)
Front Tyre	100/90-18
Bore x Stroke	84.6 mm x 80 mm
Final Drive	Chain
Fuel Capacity	14.5 L (3.8 US gal)
Rear Suspension	Twin shocks
Front Brake	310mm disc, 2-piston caliper
Rear Brake	255mm disc, 2-piston caliper
Front Wheel	18-inch
Rear Wheel	17-inch
Wheelbase	1, 450 mm (57.1 in)
Fuel System	Fuel injection
Frame	Tubular steel
Front Suspension	41mm telescopic fork
