Triumph Bonneville T100 Series User Manual

General Information
43

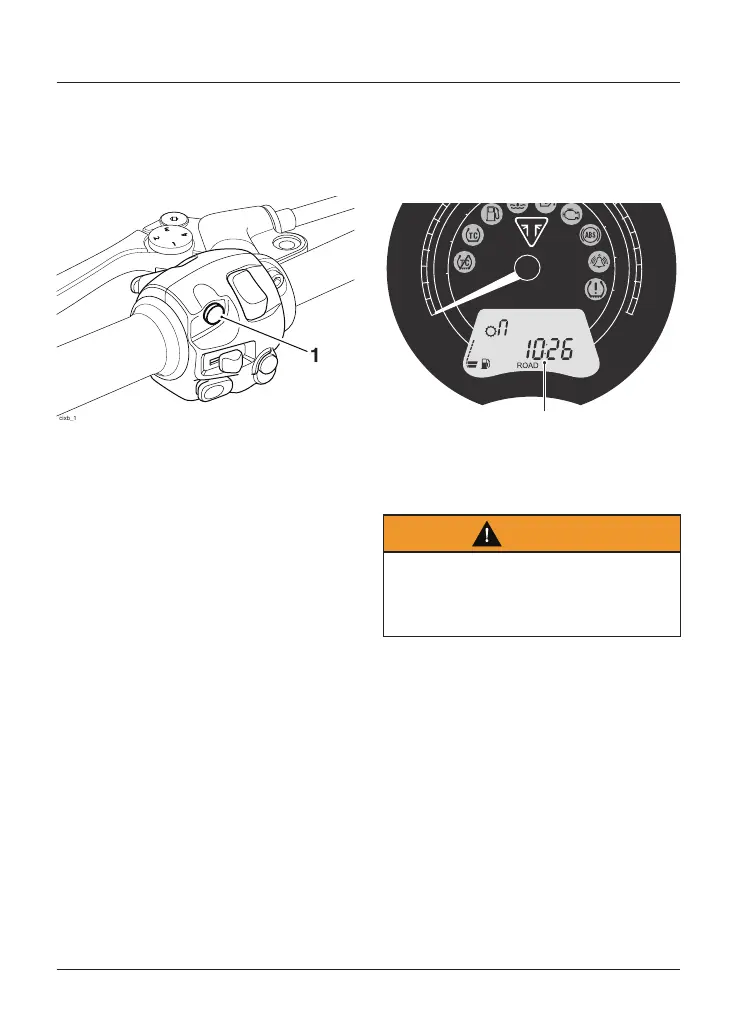

To switch between trip meters, press
and release the SCROLL button, located
on the left hand handlebar switch
housing, until the required trip meter is
shown.
1
cixb_1
1. SCROLL button
Note
Street Scrambler Only
The trip meters are not accessible when
in OFF ROAD mode. The trip meter data
continues to be collected when riding in
OFF ROAD mode. The updated trip meter
data is shown in the trip meters after
switching the OFF ROAD mode off.
Trip Meter Reset
To reset either of the trip meters:
• Select the trip meter to be zeroed.
• Press and hold the SCROLL button
for one second. After more than one
second, the trip meter on display will
reset to zero.
Clock
To access the clock, press and release
the SCROLL button, located on the left
hand handlebar switch housing, until
the clock is shown.
10
20
30
100
110
120
120
0
0
20
40
60
0
160
180
200
1
1. Clock
Clock Adjustment
Warning
Do not attempt to adjust the clock
with the motorcycle in motion as this
may lead to loss of motorcycle control
and an accident.
To reset the clock:
• Select the clock display.
• Press and hold the SCROLL button
for one second, the clock’s hour
display will start to flash. Release
the SCROLL button.

Triumph Bonneville T100 Series Specifications

General

Displacement	900 cc
Transmission	5-speed
Seat Height	790 mm (31.1 in)
Front Tyre	100/90-18
Bore x Stroke	84.6 mm x 80 mm
Final Drive	Chain
Fuel Capacity	14.5 L (3.8 US gal)
Rear Suspension	Twin shocks
Front Brake	310mm disc, 2-piston caliper
Rear Brake	255mm disc, 2-piston caliper
Front Wheel	18-inch
Rear Wheel	17-inch
Wheelbase	1, 450 mm (57.1 in)
Fuel System	Fuel injection
Frame	Tubular steel
Front Suspension	41mm telescopic fork
