Triumph BONNEVILLE Handbook

97
Maintenance and Adjustment
Fuses

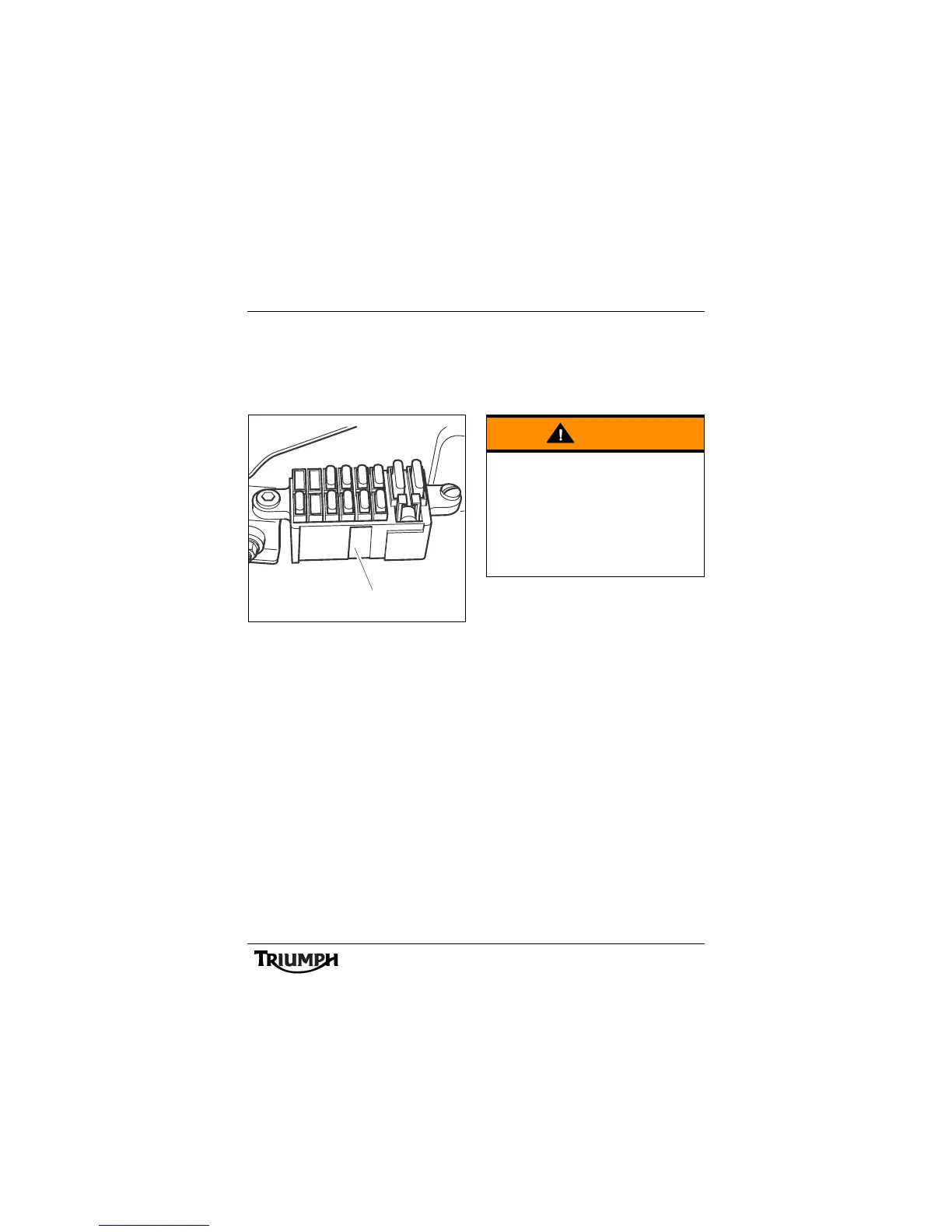

Fuse Location
Fuses are arranged in the fuse box located
behind the right hand side cover.
1. F u s e b o x
Fuse Replacement
If a fuse fails during operation, inspect the
electrical system to determine the cause, and
then replace it with a new fuse of the same
(correct) current rating.
T908046
1
Warning
Always replace blown fuses with new ones
of the correct current rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrectly rated fuse could lead
to an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.

Triumph BONNEVILLE Specifications

General

Fuel System	Multipoint sequential electronic fuel injection
Gearbox	5-speed
Rear Tyre	150/70 R17
Final Drive	Chain
Clutch	Wet, multi-plate
Frame	Tubular steel cradle
Front Suspension	41mm forks
Front Brakes	Single 310mm disc, 2-piston caliper
Rear Brakes	Single 255mm disc, 2-piston caliper
Rear Wheel	Wire-spoked, 17-inch
Front Tyre	100/90-1
Fuel Tank Capacity	14.5 L (3.8 US gal)
Bore x Stroke	84.6 x 80 mm
