2. Fit crankshaft position sensor and the harness guide to the alternator cover as noted
for removal. Secure with new fixings and tighten to 6 Nm.

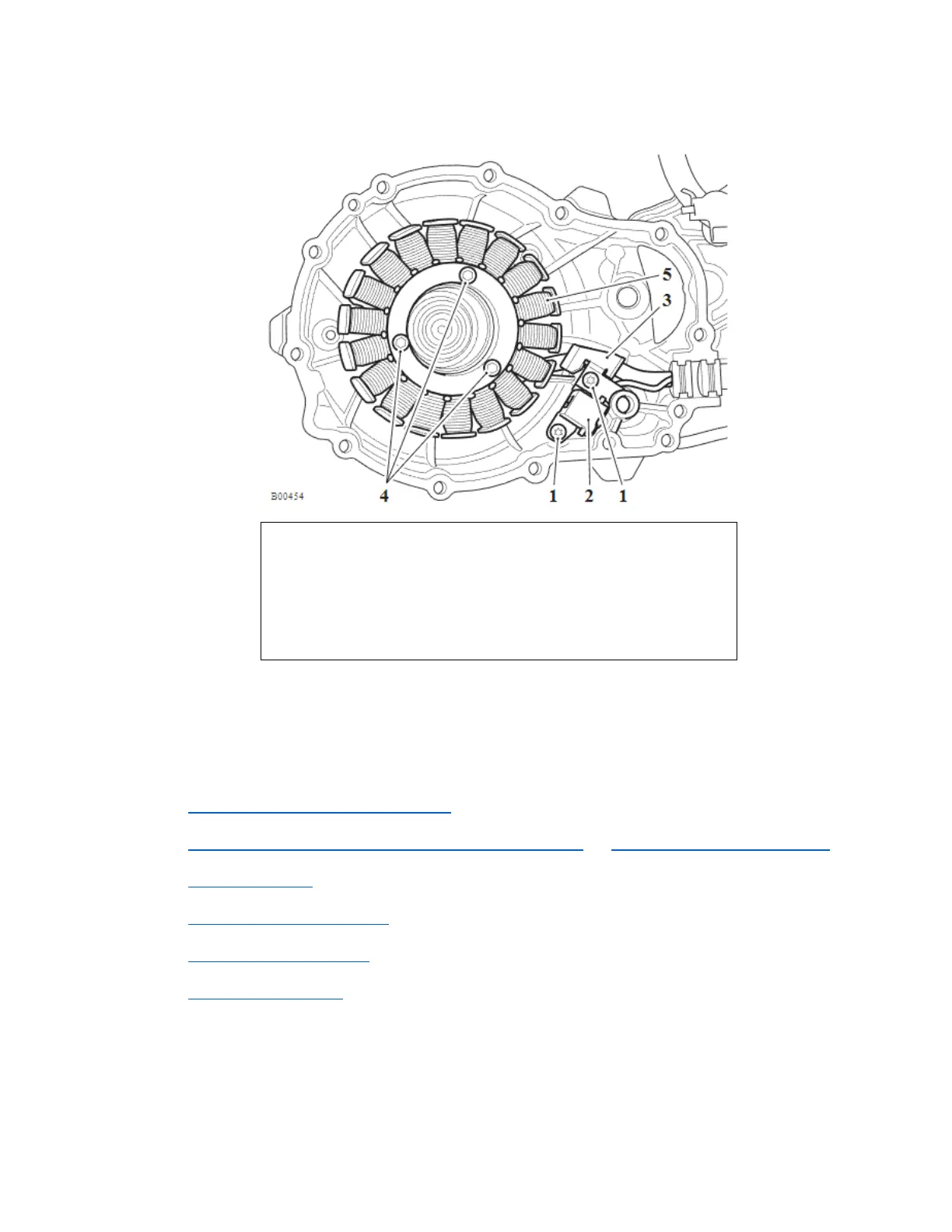

1. Fixings (position sensor and harness guide)
2. Position sensor
3. Harness guide
4. Fixings (alternator stator)
5. Alternator stator
Perform the following operations:
• Alternator Cover - Installation
• Plenum - Installation (All Markets Except US) or Plenum - Installation (US
Markets Only)
• Fuel Tank - Installation
• Battery - Installation
• Seat - Installation
