MAINTENANCE AND ADJUSTMENT
147
License Plate Light
Bonneville T100 (all models),
Bonneville T120 (all models),
Speed Twin 1200 and Thruxton RS
The license plate light unit is a sealed,
maintenance free LED unit. The license
plate light unit must be replaced in the
event of the failure of the license plate
light.

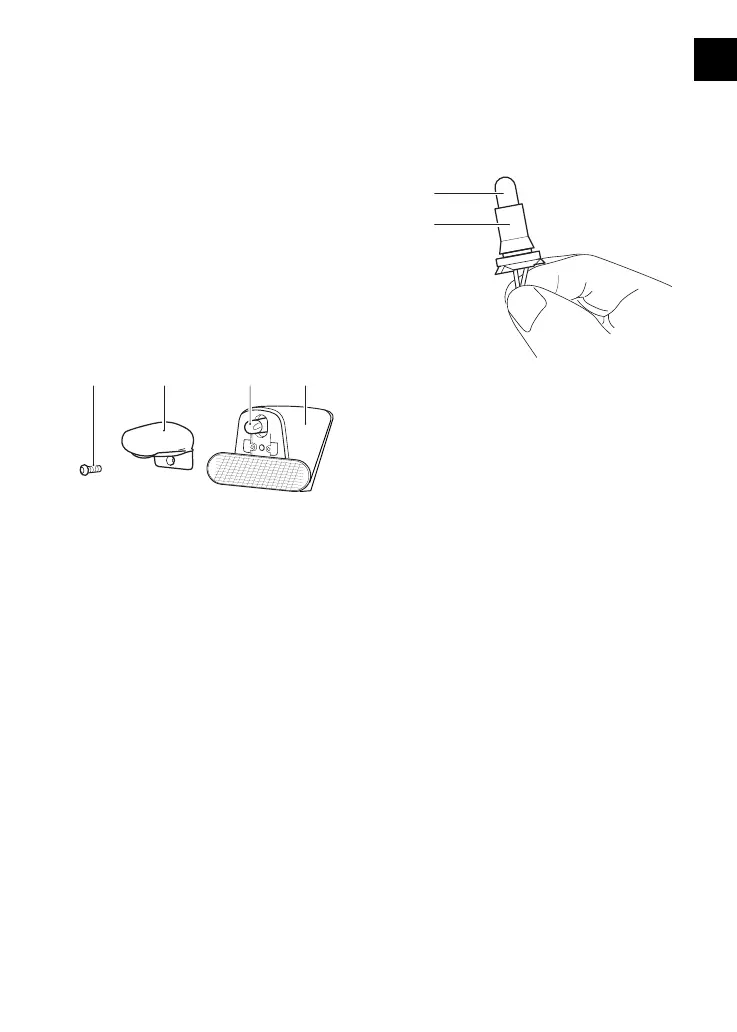

Scrambler 900 and Speed Twin 900
321 4
1. Fastener
2. Lens unit
3. Bulb
4. License plate bracket
To change the license plate light bulb:
▼ Disconnect the battery, negative
black lead first.
▼ Loosen the fastener from the lens
unit.
▼ Remove the lens unit from the
license plate bracket.
▼ Detach the bulb retainer from the
lens unit.
1
2
1. Bulb
2. Bulb retainer
▼ Carefully remove the bulb from the
bulb retainer. Mount a new bulb into
the bulb retainer.
▼ Remount the bulb retainer into the
lens unit.
▼ Remount the lens unit to the license
plate bracket.
▼ Tighten the fastener to 9 lbf in
(1 Nm).
▼ Reconnect the battery, positive (red)
lead first and tighten the battery
terminals to 40 lbf in (4.5 Nm).
▼ Apply a light coat of grease to the
terminals to prevent corrosion.
▼ Cover the positive terminal with the
protective cap.
