Instrument Panel Layout
Street Cup, Thruxton, Thruxton R, Bonneville T100 and Bonneville T120
1
2
3
4
5
6
7
8
9
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
1
1
0
2
0

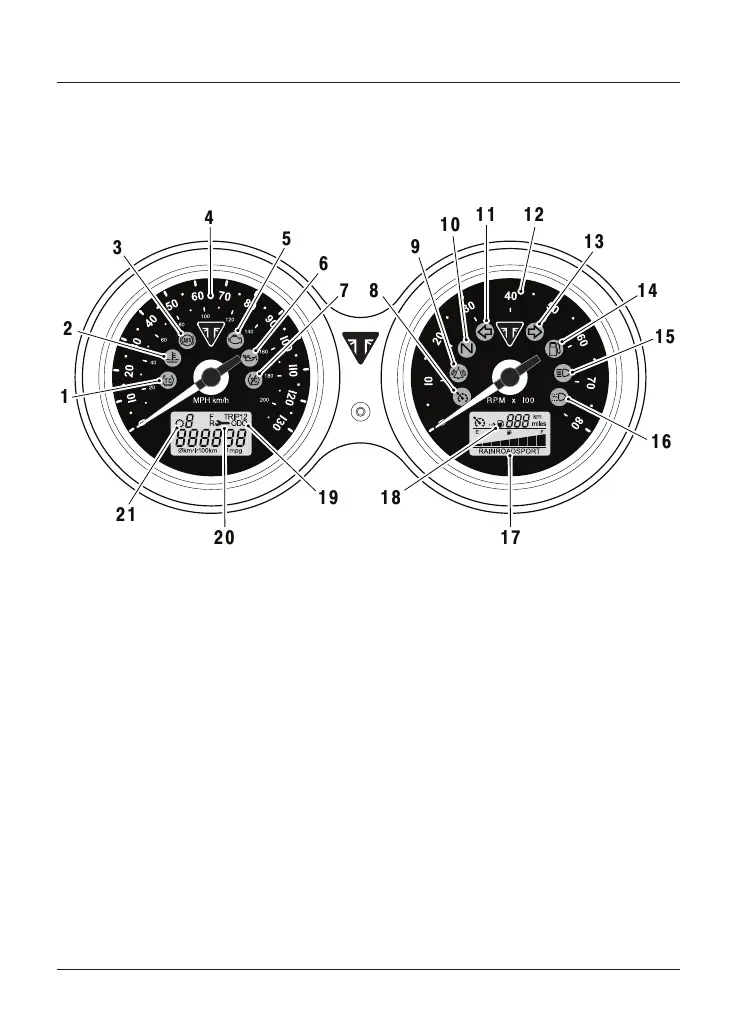

1. Traction Control (TC) indicator light
2. High coolant temperature warning light
3. ABS (Anti-Lock Brake System)
warning light
4. Speedometer
5. Engine management Malfunction
Indicator Light (MIL)
6. Low oil pressure warning light
7. Traction Control (TC) disabled warning
light
8. Cruise control indicator light (if fitted)
9. Immobiliser/Alarm indicator light
(alarm is an accessory kit)
10. Neutral indicator light
11. Left hand direction indicator light
12. Tachometer
13. Right hand direction indicator light
14. Low fuel level indicator light
15. High beam indicator light
16. Daytime Running Lights (DRL) indicator
light (if fitted)
17. Rider mode display (if fitted)
18. Range to empty display
19. Odometer/Trip computer
20. Service interval indicator
21. Gear position indicator
