Maintenance And Adjustment
95
Coolant Level Inspection
Note:
• The coolant level should be checked
when the engine is cold (at room or
ambient temperature).
Street Cup, Street Twin,
Bonneville T100 and Bonneville T120
citr
1
2

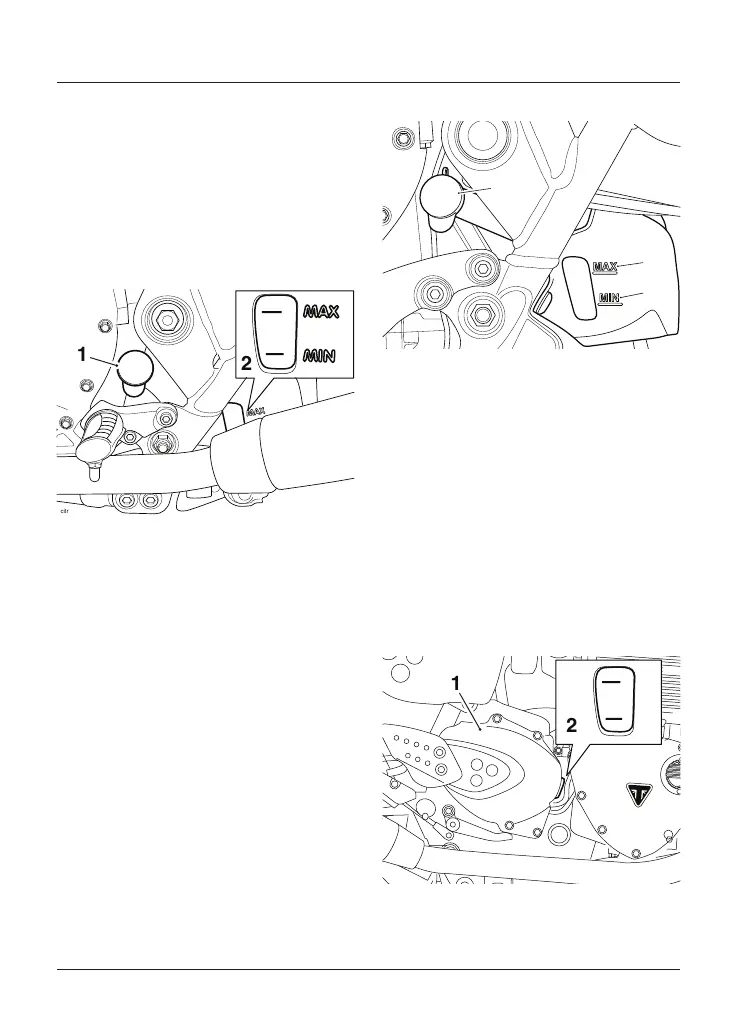

1. Expansion tank cap
2. MAX and MIN marks
Position the motorcycle on level ground
and in an upright position. The
expansion tank can be viewed from the
left hand side of the motorcycle,
towards the rear of the engine.
Check the coolant level in the expansion
tank. The coolant level must be between
the MAX and MIN marks. If the coolant
is below the minimum level, the coolant
level must be adjusted.
Street Scrambler
cjyr
3
1
2
1. Expansion tank cap
2. Maximum mark
3. Minimum mark
Position the motorcycle on level ground
and in an upright position. The
expansion tank can be viewed from the
left hand side of the motorcycle,
towards the rear of the engine.
Check the coolant level in the expansion
tank. The coolant level must be between
the MAX and MIN marks. If the coolant
is below the minimum level, the coolant
level must be adjusted.
Thruxton and Thruxton R
2
1
1. Expansion tank cap
2. MAX and MIN marks
