USER MANUAL TST40E, V15.01 page | 1
Technical changes, misprints and errors are reserved.
User Manual

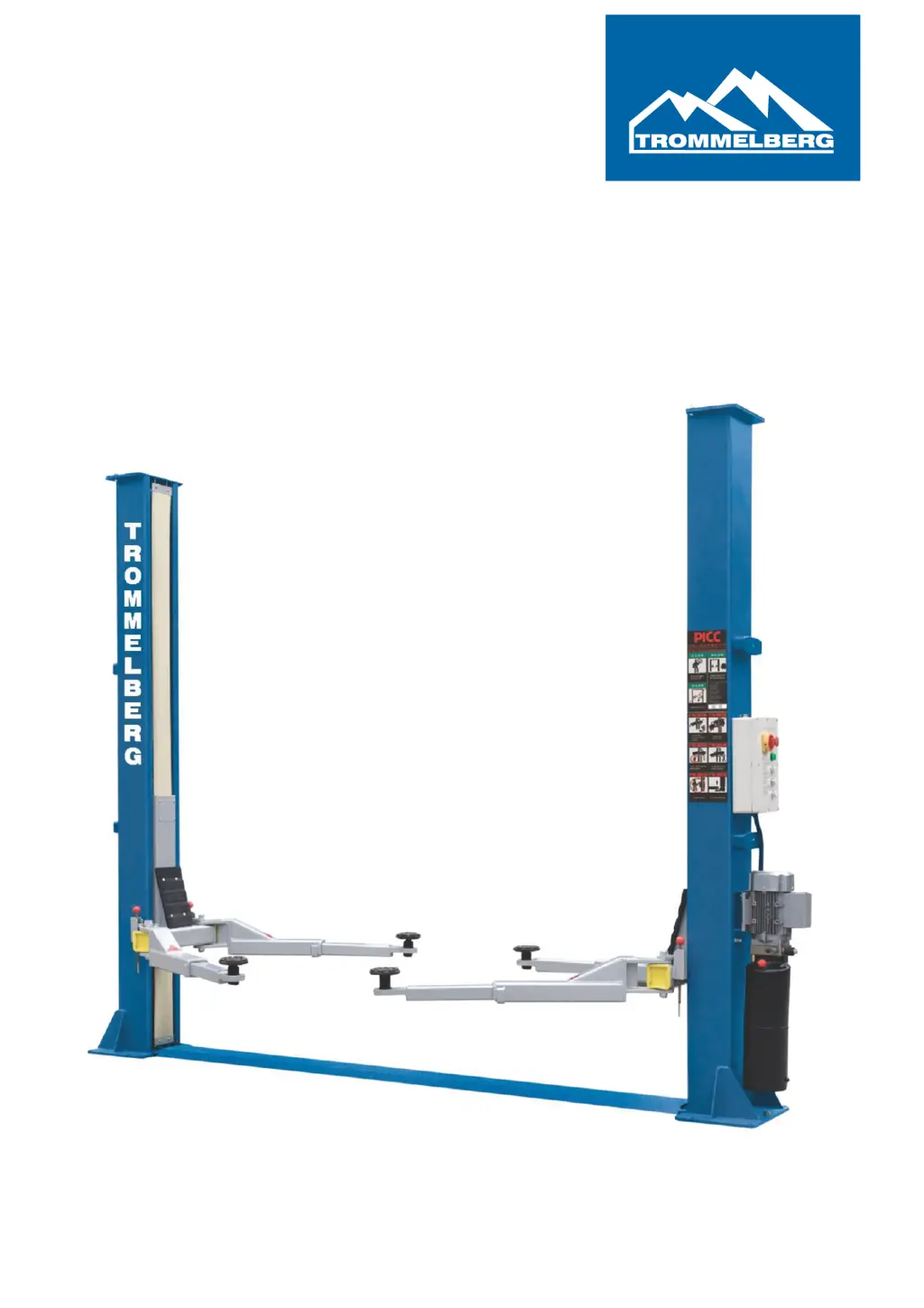

4 Ton Two Post Lift
Model: TST40E, with lower synchronization

Table of Contents

Questions and Answers

  • D
    Donna GonzalesAug 2, 2025
    What to do if the motor runs but the TROMMELBERG Lifting Systems will not raise?
    • J
      Jonathan ColemanAug 2, 2025
      If the motor of your TROMMELBERG Lifting System runs but the lift won't raise, several issues could be at play. First, ensure the motor isn't running in reverse by checking the wire connections. Next, inspect the overflow and cushion valves for any looseness or jamming, and clean or adjust them as necessary. Also, verify the oil level and add oil if it's too low. Check the oil hose and tighten it if it is loose. If these steps don't resolve the issue, the gear pump might be damaged and require replacement.
  • J
    jeffery68Aug 6, 2025
    Why is my TROMMELBERG Lifting Systems raising too slow?
    • S
      Sean DuranAug 6, 2025
      If your TROMMELBERG Lifting System is raising too slowly, start by checking the oil filter and cleaning or replacing it if it's jammed. Ensure the oil level is adequate by adding oil if it's low. Adjust the overflow valve to the correct position. If the hydraulic oil is too hot (above 45°C), change it. Replace the cylinder seal if it's worn. Lastly, ensure the inside surfaces of the posts are well-lubricated.
  • J
    jennifer16Aug 10, 2025
    What to do if carriages go down slowly after being raised on TROMMELBERG Lifting Systems?
    • S
      Steven Matthews MDAug 10, 2025
      If the carriages of your TROMMELBERG Lifting System descend slowly after being raised, start by checking the oil hose for leaks and replace if needed. Ensure the oil cylinder is properly tightened. Inspect the single valve and solenoid valve; clean or replace them if they're leaking or malfunctioning. Lastly, check the steel cable and adjust its tightness if it's loose or uneven.
  • Z
    zhayesAug 15, 2025
    What to do if the motor does not run and will not raise on TROMMELBERG Lifting Systems?
    • A
      Allison BrandtAug 15, 2025
      If your TROMMELBERG Lifting System's motor isn't running and the lift won't raise, begin by checking the wire connections to ensure they are secure. If the connections are good, the motor might be blown and require replacement. Also, inspect the limit switch for damage or loose connections; connect, adjust, or replace it as needed.
  • T
    travis78Aug 19, 2025
    Why is my TROMMELBERG Lifting Systems lowering too slow?
    • K
      Kristina EllisAug 19, 2025
      If your TROMMELBERG Lifting System is lowering too slowly, the throttle valve might be jammed and needs cleaning or replacement. Additionally, the hydraulic oil could be dirty, necessitating an oil change. Also, the anti-surge valve may be jammed and require cleaning. Finally, the oil hose might be jammed and needs replacement.
  • A
    Adam ParksAug 23, 2025
    How to fix abnormal noise in TROMMELBERG Lifting Systems?
    • N
      Norman SnyderAug 23, 2025
      Abnormal noise in TROMMELBERG Lifting Systems can be caused by abrasion on the inside surface of the posts, which can be resolved by lubricating the inside of the posts. Another cause could be trash inside the post, which needs to be cleared.
  • Y
    Yvonne HarrisonAug 28, 2025
    Why is the steel cable abraded on my TROMMELBERG Lifting Systems?
    • C
      cynthiacolemanAug 28, 2025
      The steel cable of your TROMMELBERG Lifting System might be abraded due to lack of lubrication during installation or because it is past its lifetime. The suggested solution is to replace it.

Summary

Precautionary Measures

Important Information and Warranty

Discusses warranty, responsibility, and proper usage guidelines for the lift.

Qualified Personnel Requirements

Specifies that only trained and qualified staff are permitted to operate the lift.

Critical Danger Notices

Lists critical safety warnings and prohibited actions to prevent accidents.

Training Requirements for Operators

Emphasizes that only properly trained individuals are allowed to operate the lift.

Understanding Safety Warning Signs

Explains the purpose and importance of safety labels attached to the lift.

Lift Overview and Specifications

General Description of the Lift

Describes the main components and electro-hydraulic operation of the two-post lift.

Technical Specifications

Provides key technical data including lifting capacity, rise time, height, and dimensions.

Construction Details and Components

Illustrates and labels the main parts of the lift, such as columns, arms, and cylinders.

Installation and Setup Procedures

Installation Preparations

Lists necessary tools, equipment, and checks before starting the lift installation.

Installation Safety Precautions

Outlines essential safety measures and checks during the lift installation process.

Installation Procedure - Part 1

Details the initial steps of the installation, including unpacking and post erection.

Installation Procedure - Part 2

Covers the connection of steel cables and initial carriage positioning during installation.

Installation Procedure - Part 3

Explains the mounting of the power unit and connection of oil hoses.

Installation Procedure - Part 4

Describes the wiring connections for the control box and limit switch.

Installation Procedure - Part 5

Details connecting lifting arms and carriages, and finalizing electrical connections.

Post-Installation Verification Checklist

Lists essential checks to be performed after the lift has been installed.

Operation and Usage Guidelines

Operational Precautions

Highlights critical safety rules and best practices for operating the lift.

Operation Flowchart

Provides a visual guide illustrating the raising and lowering sequences of the lift.

Step-by-Step Operation Guide

Guides the user through raising, locking, and lowering the vehicle with the lift.

Troubleshooting Guide

Error Resolution Table

Lists common errors, their probable causes, and recommended solutions for the lift.

Maintenance and Checks

Daily Pre-Operation Checks

Outlines essential daily inspections to ensure the lift's safety and functionality.

Weekly Maintenance Checks

Details the checks and inspections recommended on a weekly basis.

Monthly Maintenance Checks

Specifies the maintenance tasks and checks required on a monthly schedule.

Yearly Maintenance Checks

Lists the comprehensive maintenance and inspection procedures for yearly intervals.

Technical Annexes and Diagrams

Packing List of Components

Provides a detailed list of all components included in the lift's packaging.

Overall Diagram and Dimensions

Presents a visual overview of the lift with key dimensions indicated.

Hydraulic System Diagram

Illustrates the schematic of the lift's hydraulic working system.

Locking System Wiring Diagram

Shows the electrical connection diagram for the lift's locking system.

Electrical Wiring Diagrams

Includes wiring diagrams for both single-phase and three-phase power supply configurations.

Exploded Parts View

Displays an exploded view of the lift components for assembly and identification.
