USER MANUAL TST40E, V15.01 page | 9
Technical changes, misprints and errors are reserved.
3.3. Installation
Step 1:
- Remove the packaging, take out the carton with accessories and cover
plate
Step 2:

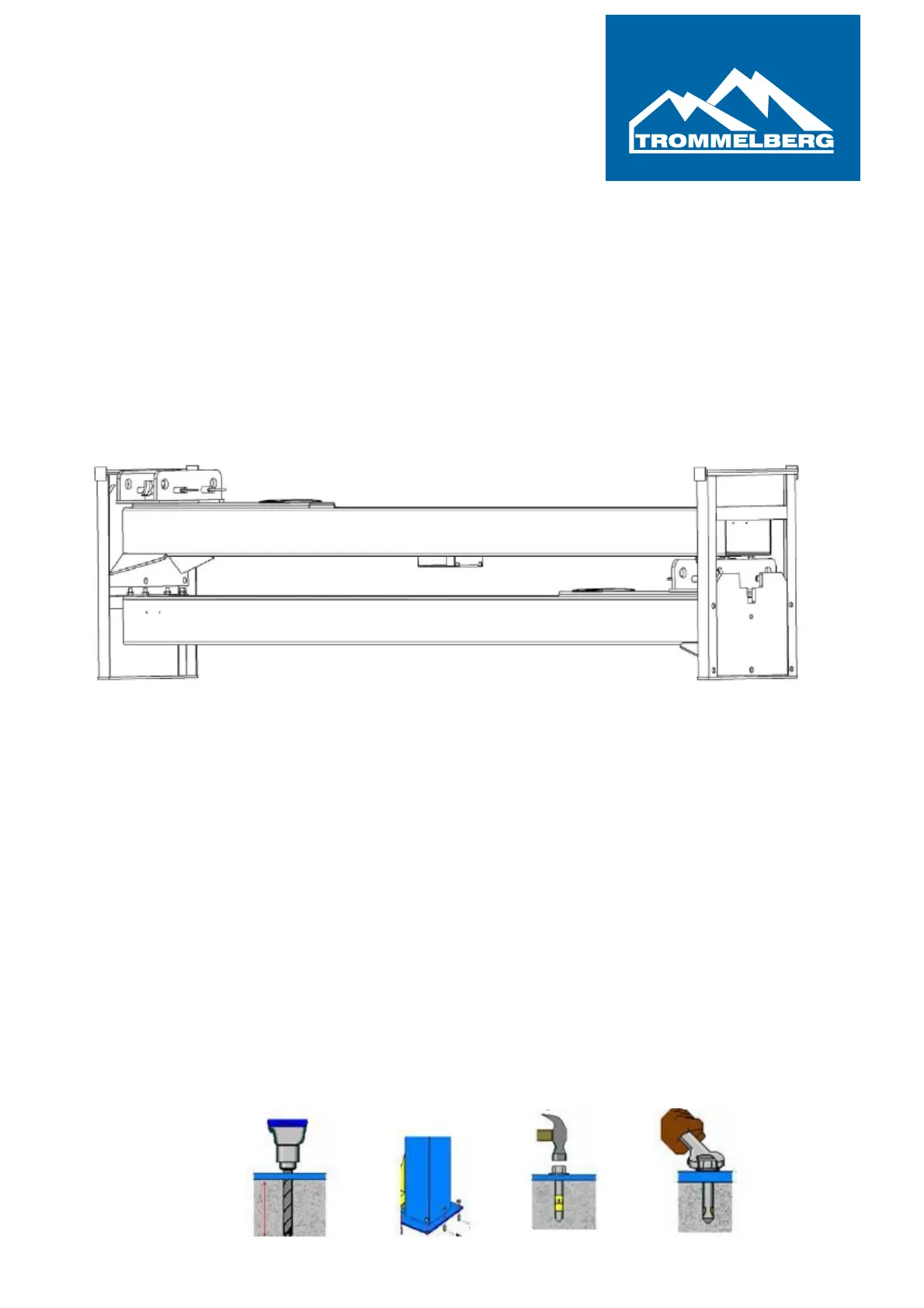

- Put something supporting between the two posts or suspend one of the
posts by a crane and then remove the bolts on the package
- Attention: Please pay special attention to not let the post fall down, or it
may cause injuries or bring damages to the accessories, fixed in the post!
Step 3:
- When the first post has been taken away, place something supporting
under the second post and then remove the remaining bolts on the
package
Step 4:
- Determine the exact place of installation of the lift
o Unpack the posts and decide on which side you want to have the
power unit and controls
o Draw an outline of the base plate on the ground with chalk and
ascertain the position for the posts (Annex 7.2. Overall diagram)
Step 5:
- Erect the posts, power side first and then the other post
- Drill anchor holes for the expansion bolts (not included) on the ground with
an electrical drill
- MAKE SURE TO DRILL 100% VERTICALLY!
- After the holes have been drilled, remove thoroughly the debris and dust
and ascertain that the post stay upon the circle, previously drawn by chalk
