tronical TronicalTune - Gain Settings

38
BAT
e B G D A E
MENU
BAT
MENU
BAT
MENU
SELECT THE PIEZO SIGNAL LEVEL BY PUSHING “LEFT“ OR
“RIGHT“. CONFIRM WITH “ENTER“ OR PUSH ”BACK” FOR SYSTEM
CONFIGURATION MENU.
E
GAIN SETTINGS
SYSTEM CONFIGURATION
E
EADG
B
e
EADGBe
high Signal
low signal
LEFT / RIGHT
ENTER
BACK
WWW.TRONICAL-COMPONENTS.COM

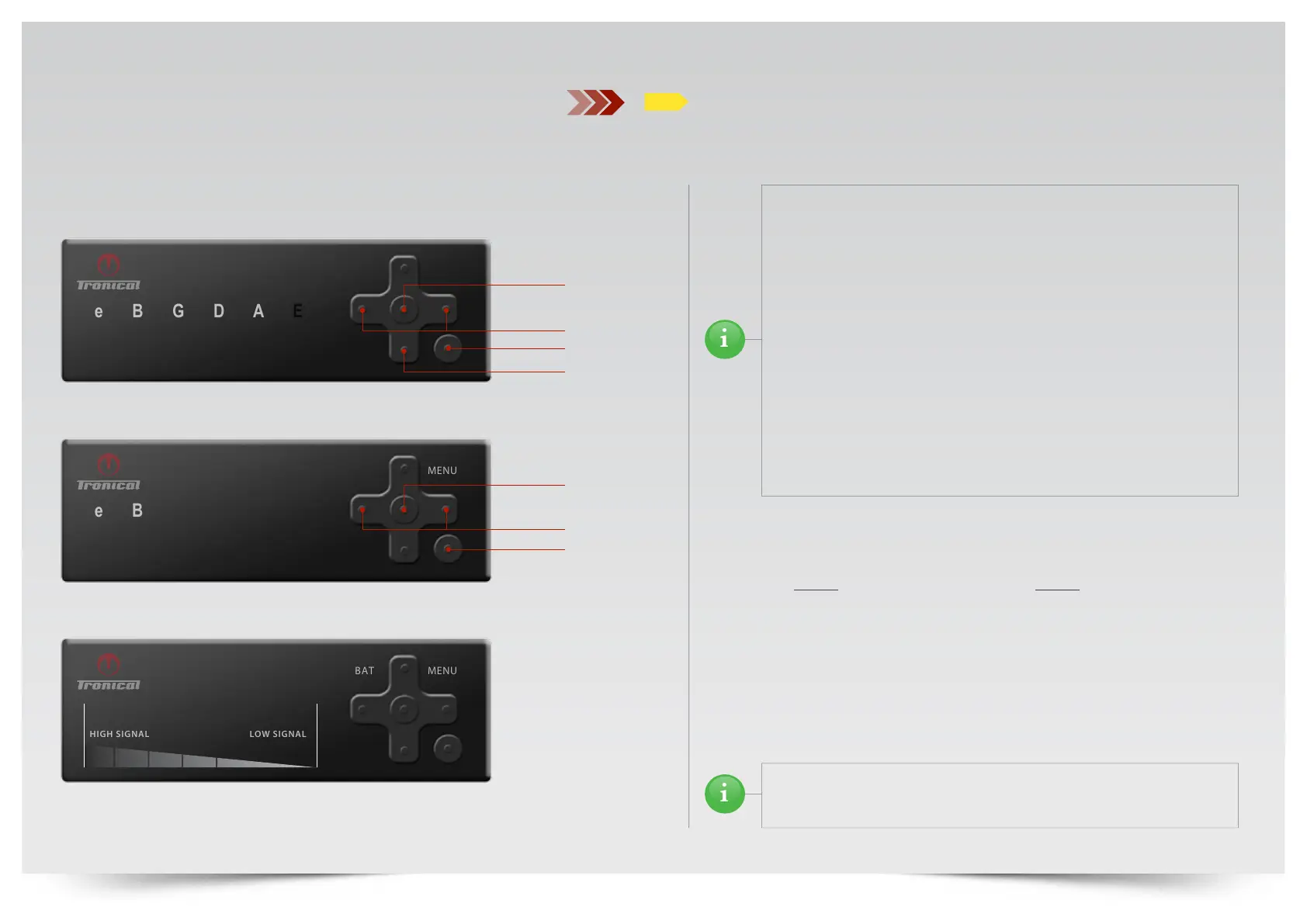

PUSH “ON“ BUTTON. THE SYSTEM COMES UP WITH THE LAST COMPLETED
TUNING IN MULTISTRING MODE. PUSH “BACK“ BUTTON TO ENTER TUNING
SELECTION MODE. MENU LED IS OFF. TO ENTER SYSTEM CONFIGURATION
PRESS AND HOLD “RIGHT“ AND PRESS AND HOLD “ENTER“ AT THE SAME
TIME. “MENU“LED AND “E“LED LIGHT UP YELLOW.
FOR GAIN SETTING SELECT “E“LED AND PRESS ”ENTER”
ENTER
DOWN
LEFT / RIGHT
ON/BACK
i
i
THE DEFAULT IS 3 LEDS AND WILL BE ADAPTED WHEN EXECUTING
CALIBRATION MODE. SELECTING A DIFFERENT LEVEL WILL AFFECT
SYSTEM PERFORMANCE OR CAN CAUSE MALFUNCTION.
TRONICAL TUNE HAS A SUPERIOR DYNAMIC RANGE TO SENSE THE
SOLIDBORNE SOUND OF YOUR INSTRUMENT >130DB. THIS IS
ACHIEVED BY A PIEZO TRANSDUCER, A DYNAMICAL ADJUSTABLE
AMPLIFIER AND A 24 ANALOG TO DIGITAL CONVERTER ADC. WITH
THE “GAIN SETTING” THE STARTING POINT OF THE AMPLIFIER IS SET.
FROM THIS STARTING POINT THE AMPLIFIER IS ADJUSTED DURING
THE TUNING PROCESS IN THE RANGE OF +9DB.
WHEN YOU PERFORM A “CALIBRATION” A GOOD STARTING POINT
FOR THE AMPLIFIER IS SET. YOU CAN OVERRIDE THE GAIN SETTING
WITH THIS FUNCTION. BE CAREFUL WHEN CHANGING THE GAIN!
INCREASE THE GAIN IF STRINGS ARE NOT RECOGNIZED WHEN PLU
CKED STRING LED IS NOT GETTING YELLOW, STRING IS NOT TUNED
OR SIGNAL IS FADING OUT TOO QUICK.
DECREASE THE GAIN IF THE GUITAR IS TOO SENSITIVE OR IF USED
IN LOUD ENVIRONMENTS WITH AMBIENT NOISE.
GAIN LEVEL : 2.5DB, 6DB, 9DB, 12DB, 15DB, 18DB
