SYSTEM CONFIGURATION
WWW.TRONICAL-COMPONENTS.COM
PITCH WINDOW
D
BAT
e B G D A E
MENU
BAT
e B G
MENU
BAT
MENU
EVERY TIME WHEN A TUNING IS COMPLETED THE SYSTEM STORES
THE ACTUAL PITCH FOR EACH STRING. ON RETUNE THE SYSTEM
CHECKS IF THE ACTUAL STRING FREQUENCIES WARE WITHIN A
CERTAIN PITCH WINDOW. IF A STRING IS OUTSIDE ITS PITCH
WINDOW THE CORRESPONDING LED TURNS PURPLE. IF AT LEAST
ONE STRING IS OUT OF ITS PITCH WINDOW THE SYSTEM TURNS
AUTOMATICALLY TO SINGLE TUNE MODE AFTER THE REMAINING
STRINGS ARE TUNED.THE PITCH WINDOW CAN BE ADJUSTED FROM
25 TO 150 CENT.

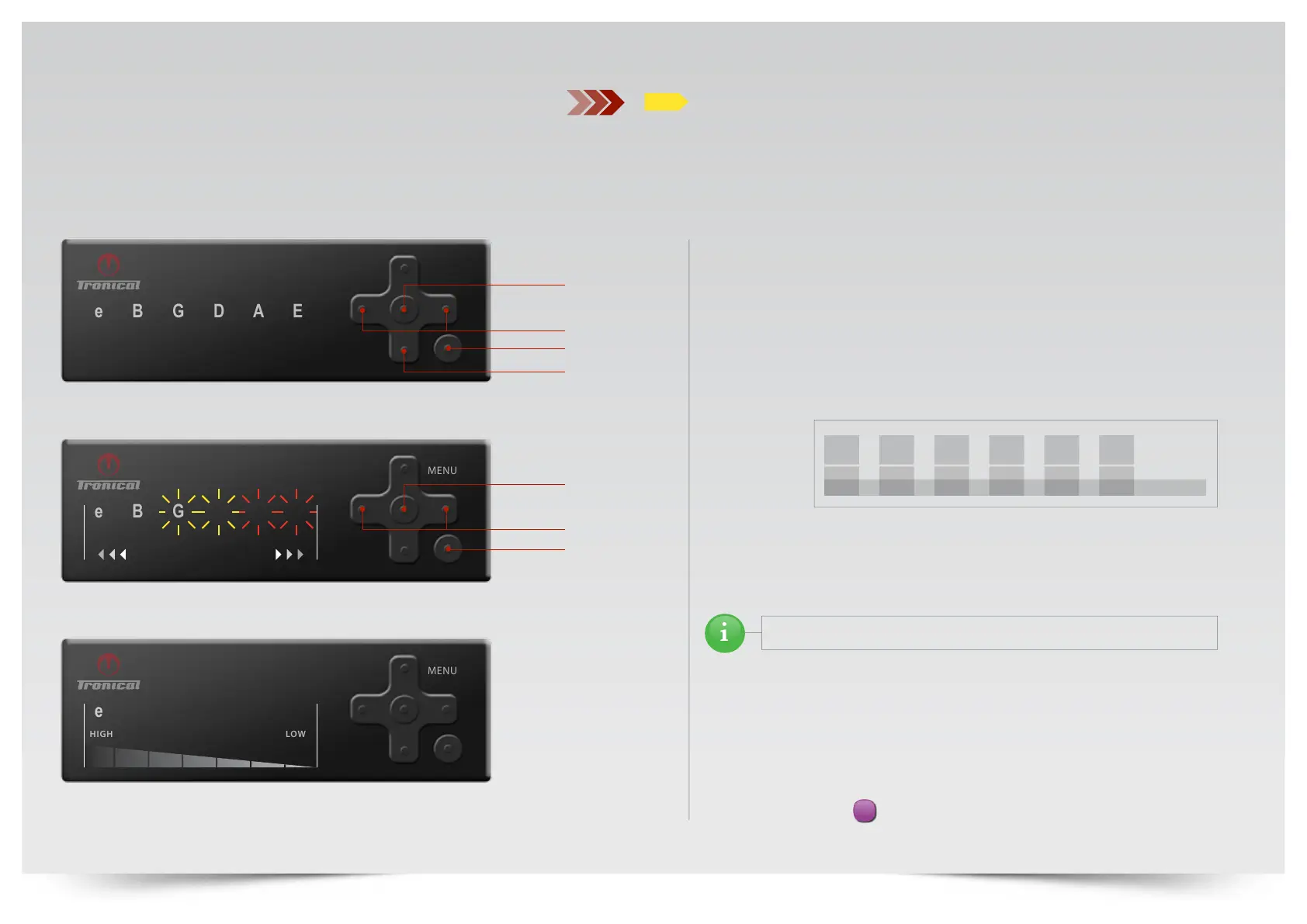

PITCH WINDOW
e B G D A E
150 100 75 50 35 25
PRESS “LEFT“ OR “RIGHT“ FOR DESIRED PITCH WINDOW AND
CONFIRM WITH “ENTER“
EXAMPLE:
THE PITCH WINDOW IS SET TO 100CENT=5LEDS. THE LAST
COMPLETED TUNING WAS A STANDARD EADGBE. NOW THE
SYSTEM IS STARTED AGAIN. IF THE PITCH OF THE LOW E STRING IS
MORE THAN 100CENT OFF, THE CORRESPONDING ELED WOULD
BECOME MAGENTA LOWER THAN EB OR HIGHER THAN F.
E
E
A
A
DG
DGB
e
D
LEFT / RIGHT
ENTER
PITCH WINDOW
BACK
high
low
EXAMPLE:
ENTER
DOWN
LEFT / RIGHT
ON/BACK
DEFAULT IS 75 CENT = 4 LEDS.
i
CENT
