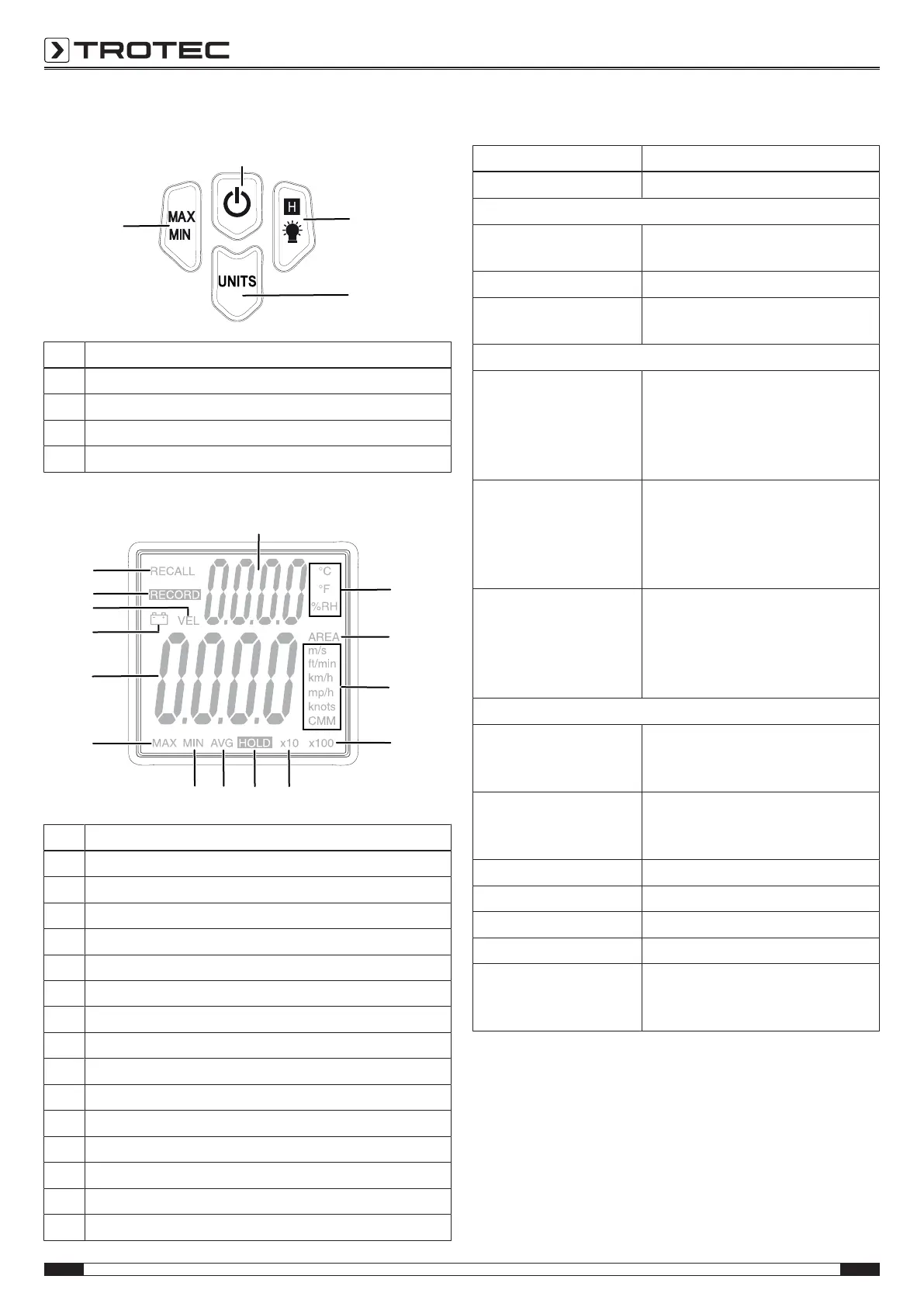

Trotec BA16 - Controls and Display Information; Operating Elements Overview; Display Indicators; Technical Data

4 EN
vane anemometer BA16
Operating elements
8
5
6
7
No. Designation
5 HOLD/light button
6 UNITSbutton
7 MAX/MINbutton
8 Power button
Display
10
23
11
12
9
15
16
17
18
22
21
20
19
14
13
No. Designation
9 Indication of the measured temperature value
10 Temperature unit indication
11 AREA indication
12 Indication of the units for velocity and volumetric flow
13 Indication of the measured value x 100
14 Indication of the measured value x 10
15 HOLD indication
16 AVG indication
17 MIN indication
18 MAX indication
19 Indication of the measured velocity value
20 Battery status indication
21 VEL indication
22 RECORD indication
23 RECALL indication
Technical data
Parameter Value
Model BA16
Temperature
Measuring range -10°C to 60°C
(14°F to 140°F)
Accuracy ±1.5°C (3.0°F)
Measuring range
resolution
±0.1°C (±0.1°F)
Air velocity
Measuring range 1.00 m/s to 30.00m/s
196 ft/min to 5900ft/min
3.6 km/h to 108.0km/h
2.2mph to 67.0mph
1.9kn to 58.0kn
Accuracy ±3% ±0.20 m/s
±3% ±40ft/min
±3% ±0.8 km/h
±3% ±0.4mph
±3% ±0.4kn
Measuring range
resolution
0.01m/s
1ft/min
0.1km/h
0.1mph
0.1kn
General technical data
Storage temperature -20 °C to 60°C (-4°F to 140°F)
with <80%RH
(non-condensing)
Operating temperature 0°C to 50°C (32°F to 122°F) with
<80%RH
(non-condensing)
Power supply 1 x 9 V battery
Device switch-off after approx. 15minutes of non-use
Type of protection IP40
Weight approx. 263 g (incl. battery)
Dimensions (Hx Wx D)
Length of the gooseneck
probe
162mmx 54mmx 32mm
360mm
Scope of delivery
• 1x Device BA16
• 1 x 9V battery
• 1 x Transport case
• 1 x Quick guide
