7 EN
Operating manual – local air conditioner PAC 2000 SH
Discharging exhaust air
• The exhaust air coming from the device contains waste
heat from the room to be cooled. For this reason it is
recommended to discharge the exhaust air to the outside.
• The end of the exhaust air hose can be fed through the
open window. If required, secure the open window with
the corresponding means, so that the end of the exhaust
air hose cannot shift.
• The end of the exhaust air hose can also be hooked into a
tilted window.
For this purpose, we recommend using a window seal
(optional).
• Install the exhaust air hose inclined with the air direction.

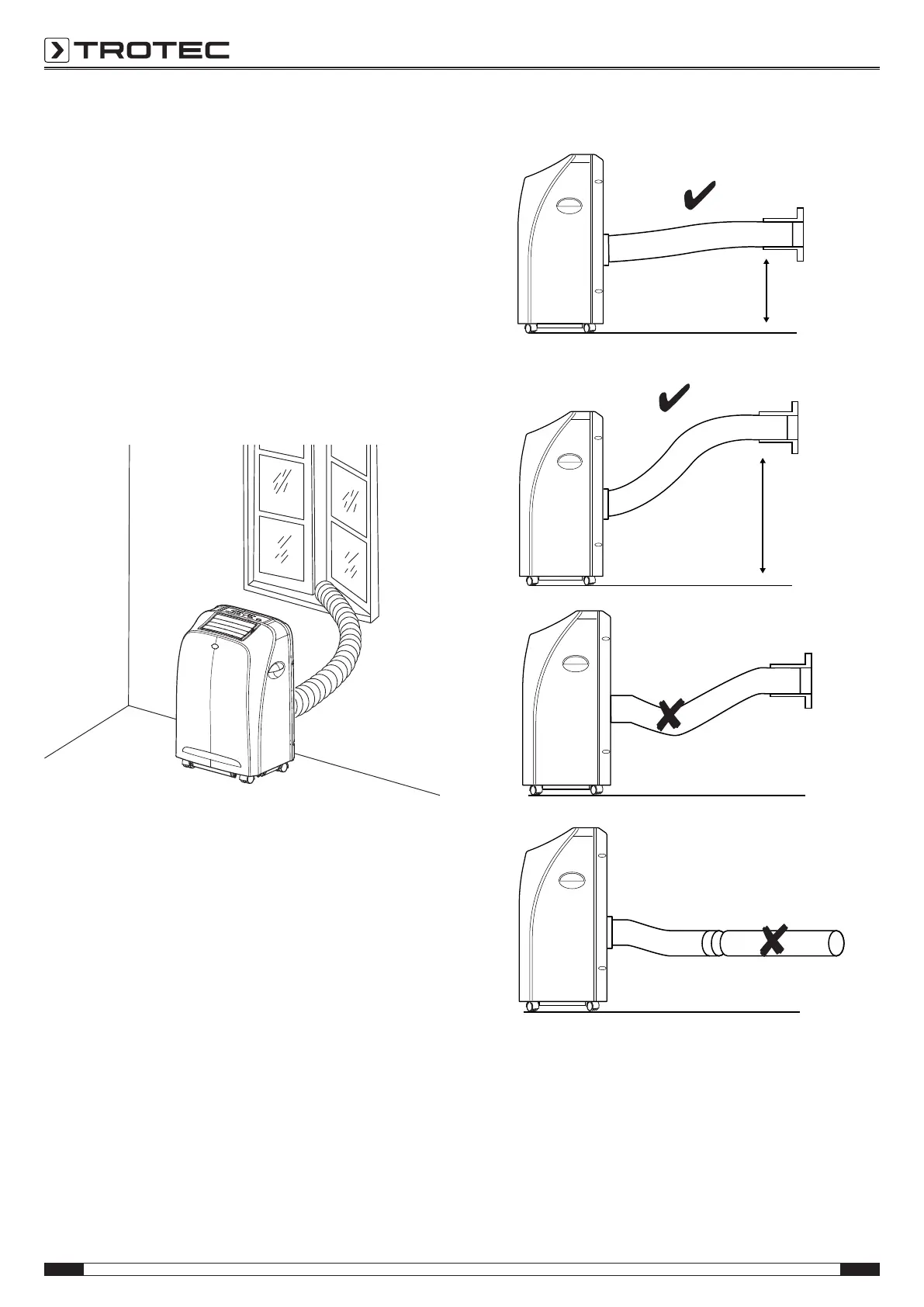

Example with exhaust air hose:
For installing the exhaust air hose please observe the following:
50 cm
50 cm
50 cm
50 cm
≥ 30 cm
≤ 120 cm
• Avoid kinks and bends in the exhaust air hose, as they
would lead to an accumulation of emitted humid air
causing the device to overheat and shut down.
• The dimensions of the exhaust air hose were especially
made to fit the device. Do not replace or extend the hose,
for it could cause a malfunction.
