I N D I V I D U A L M A R K I N G S Y S T E M S
4. Put a piece of masking tape on the hole (black anodized aluminium part) in front
of mirror #2.

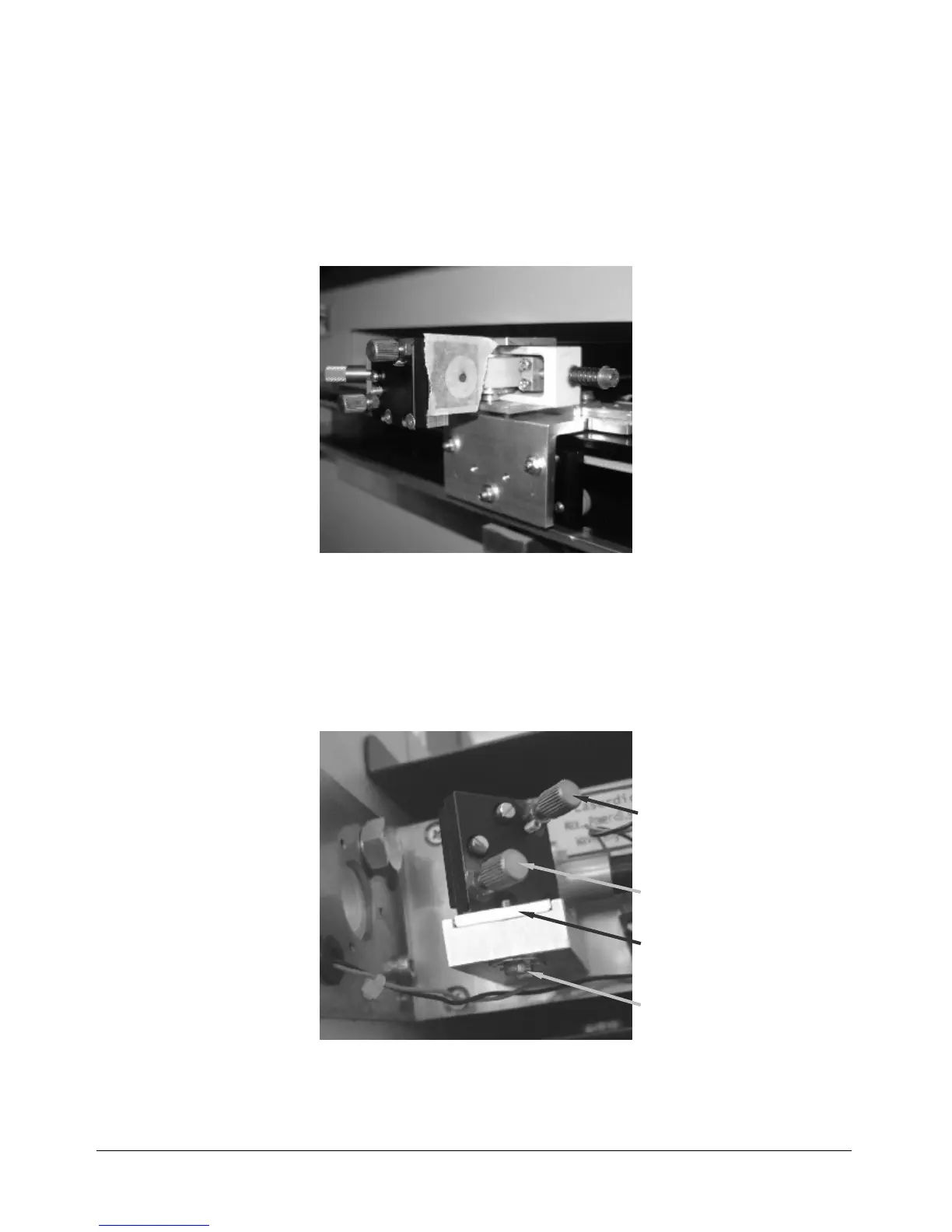

alignment of mirror no.1
5. Move the x-axis to the top position.
6. Press the test button, keep it pressed and then press the service button until you
see a little mark on the adhesive tape. (This is only possible if all doors are closed
or a service plug is put into the socket). The mark should be in the centre of the
hole. (If you don´t see a mark adjust the two brass screws at mirror #1 until you
can see a mark.
adjustments at mirror #1
7. Move the x-axis to the bottom position.
height adjustment
screw
left-right
adjustment screw
slider fixing screws
