I N D I V I D U A L M A R K I N G
Table adjustment
The correct adjustment of the table is important to make sure that a constant
engraving depth is reached all over the table (another reason for an inconstant
engraving depth is a bad beam alignment).
How to check the table adjustment:
1. Focus on the table.
2. Move the engraving head to the position X/Y=10/60.
3. Measure the distance between engraving head and table.

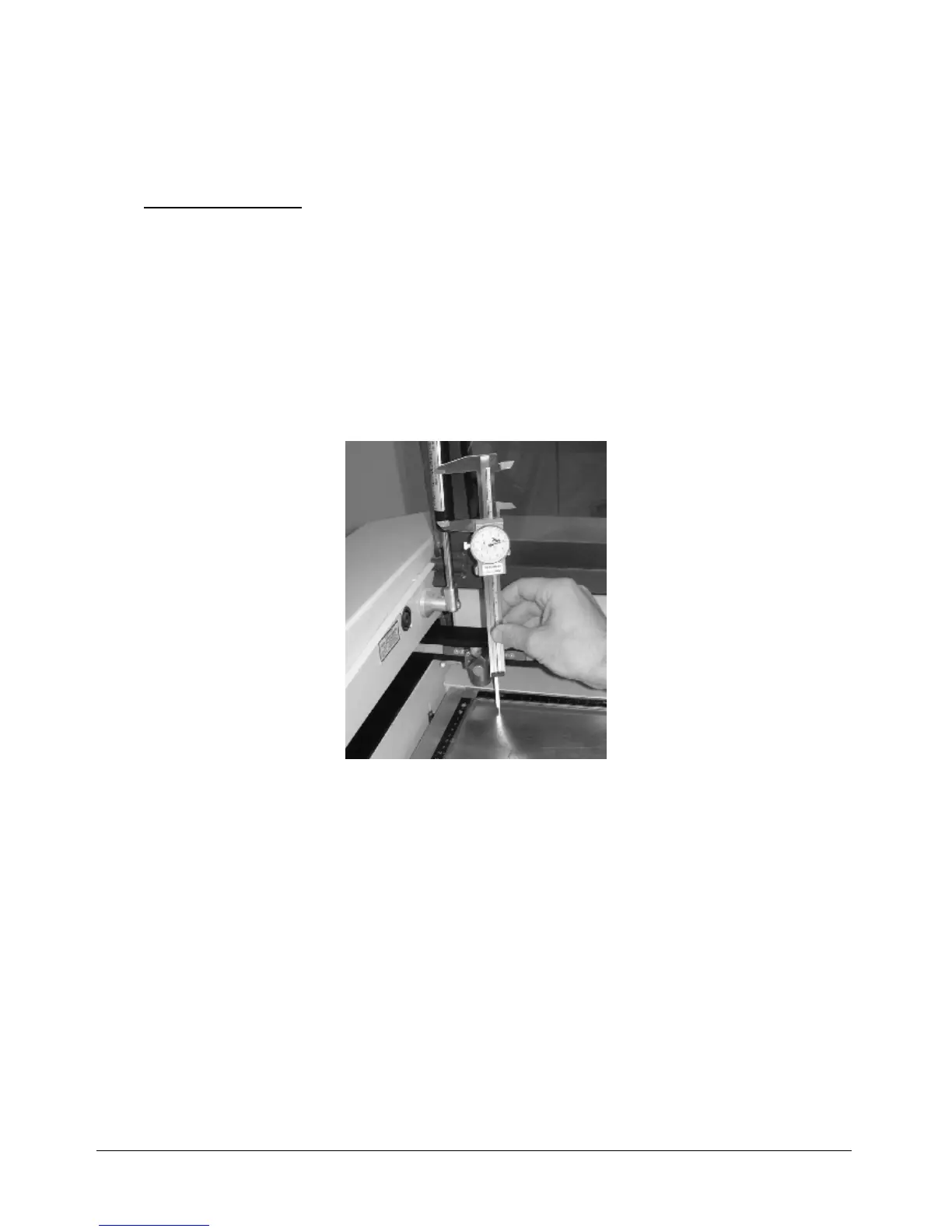

distance measurement
4. Move to 10/350, repeat step 3.
5. Move to 725/220, repeat step 3.
The accepted tolerance is 0.5 mm.
If the difference is bigger the table needs to be adjusted.
Adjusting the table
1. Focus on the table
2. Switch off the machine and disconnect it from the electric supply network.
3. Open the Maintenance access panel and the Service access panel as well
as the cover of the electronic compartment.
4. Open the four srews that fix the electronic compartment
