I N D I V I D U A L M A R K I N G S Y S T E M S

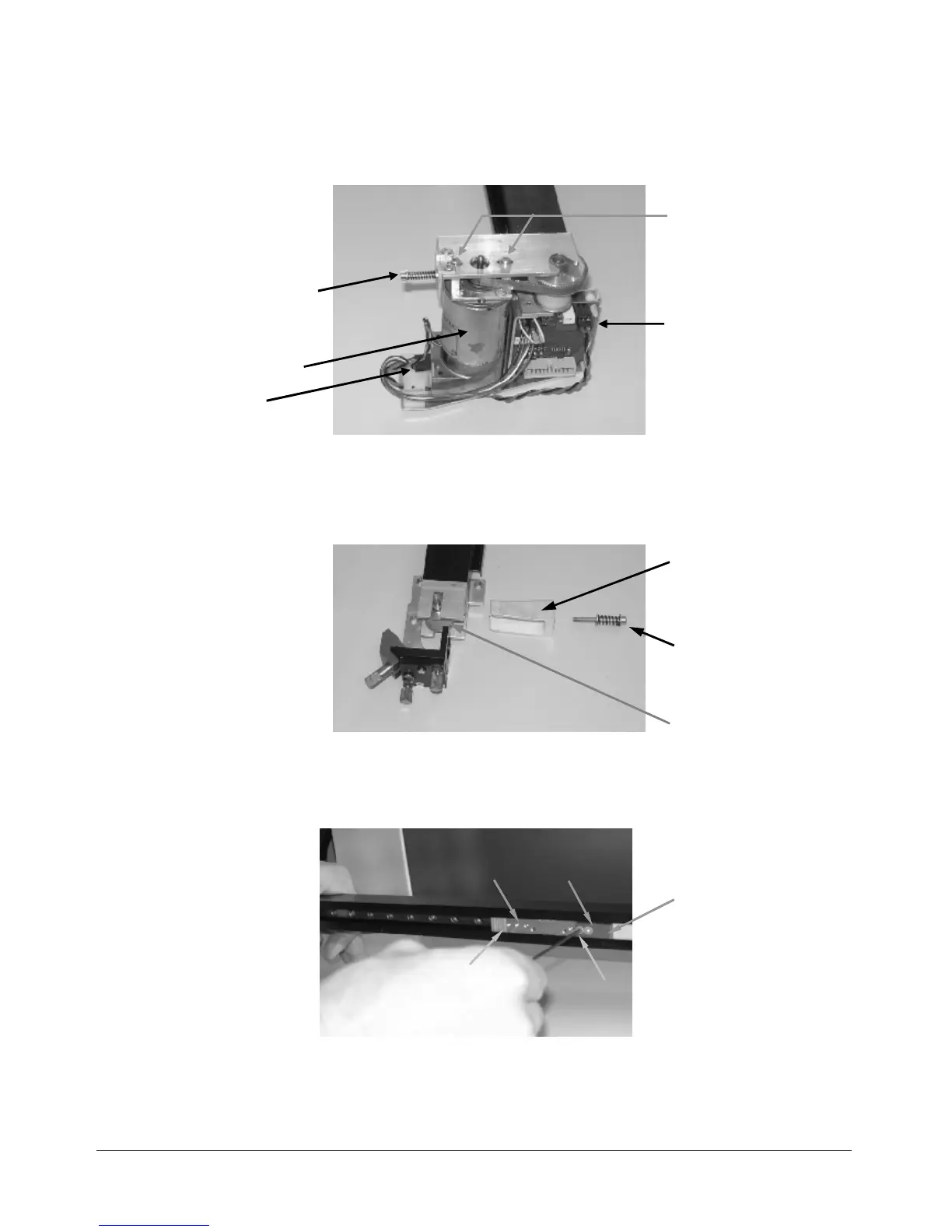

X-axis motor
3. Release the main belt
- Remove the tensioning bolt and tensioning wedge
releasing the main belt
- Remove the four screws and the belt grips on the left and on the right side
of the lens holder carriage.
replacing the belt
4. Replace the main belt
fixing screws
tensioning bolt
X-axis motor
resolver
connector
DC power
connector
tensioning
bolt
tensioning
wedge
idler
pulley
belt grip
