Trotec TGP 1000 E - Connecting the Pressure Line; Connecting the Suction Line

8 EN
garden pump TGP 1000 E

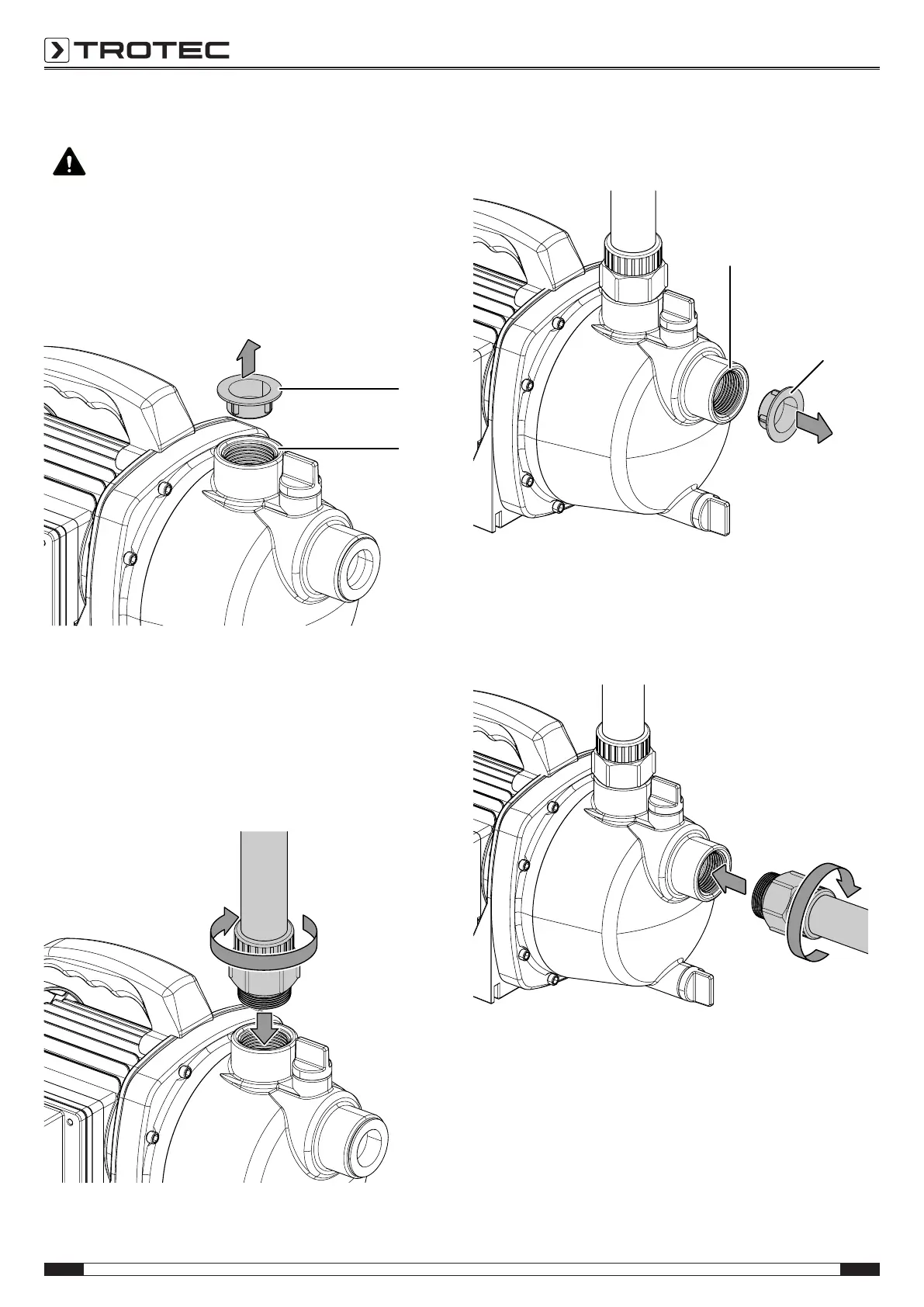

Connecting the pressure line
Warning
Make sure that all parts of the pressure line are
installed professionally. In case of an improper
assembly or when using unsuitable parts, there is a
risk of injury due to the pressurized pumping medium.
1. Remove the protective cap(9) from the pressure
connection(2).
9
2
Note
Keep the protective cap of the pressure connection so
you can use it when storing the device to protect the
inside of the device against dust and dirt.
2. Connect the pressure line to the pressure connection(2).
To do so, apply thread seal tape (e.g. Teflon tape) to the
threaded connector of the pressure line to ensure a leak-
proof connection.
Connecting the suction line
1. Remove the protective cap(10) from the suction
connection(4).
10
4
Note
Keep the protective cap of the suction connection so
you can use it when storing the device to protect the
inside of the device against dust and dirt.
2. Connect the suction line to the suction connection(4).
