Trotec TVE 25 S User Manual

6 EN
pedestal fan TVE 25 S

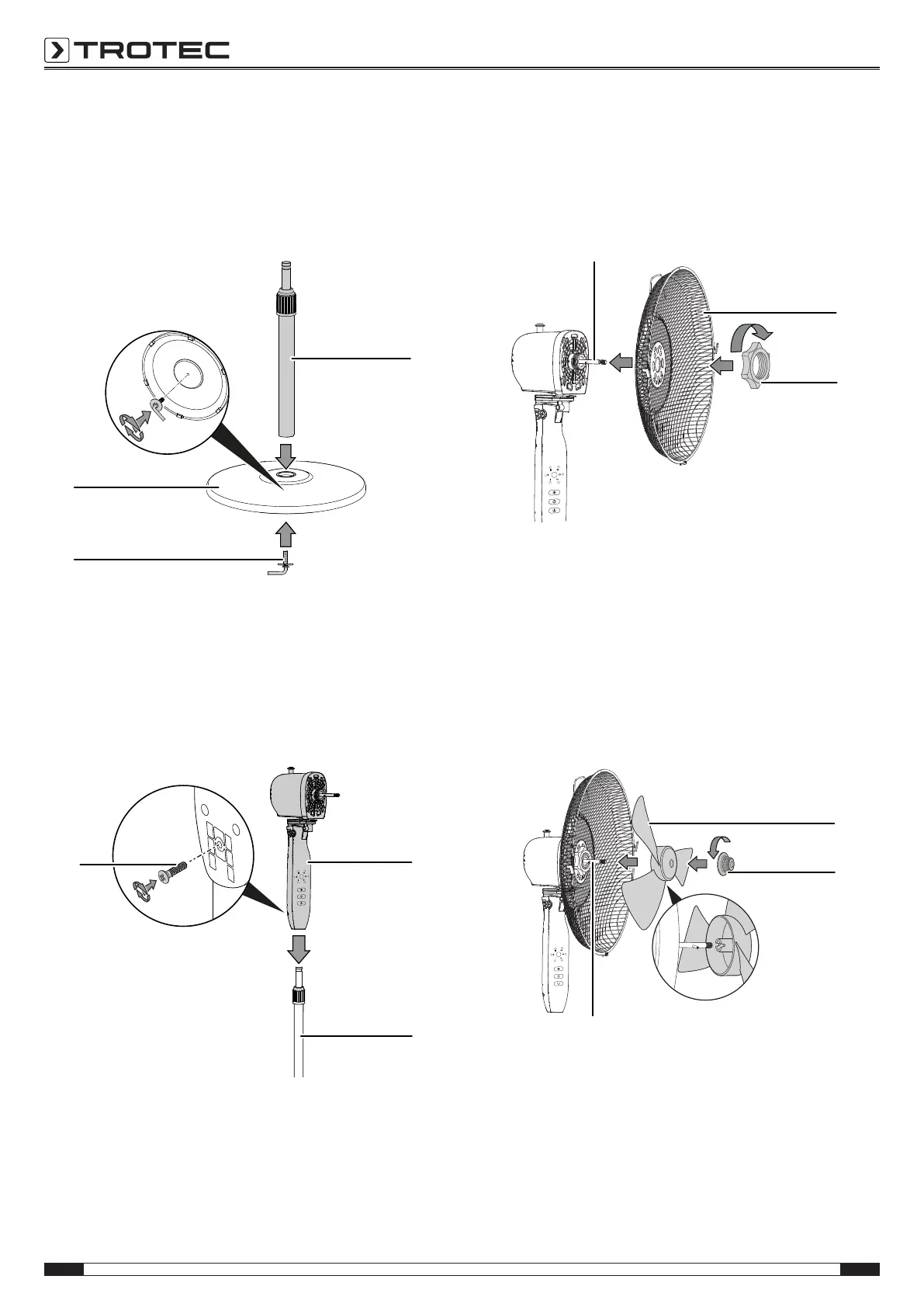

Assembly
Mounting the foot
Connect the foot(3) and the pillar(5) and screw in the
connection screw(9) below the foot(3) to fasten them.
3
9
5
Connecting the operating element and pillar
Connect the control panel(2) and the pillar(5) and fasten the
connection screw(10) at the rear of the control panel.
2
5
10
Mounting the rotor
Fit the rear part of the protective grid(11) on the motor
spindle(13). Fasten both elements with the retaining ring(12).
12
11
13
Fastening the impeller on the motor spindle
1. Fit the impeller(14) on the motor spindle(13).
2. Fasten the impeller(14) using the impeller retaining
cap(15).
14
15
13

Trotec TVE 25 S Specifications

General

Brand	Trotec
Model	TVE 25 S
Category	Fan
Language	English
