Manual No. 205312GS Revision - (10/23/2007)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.

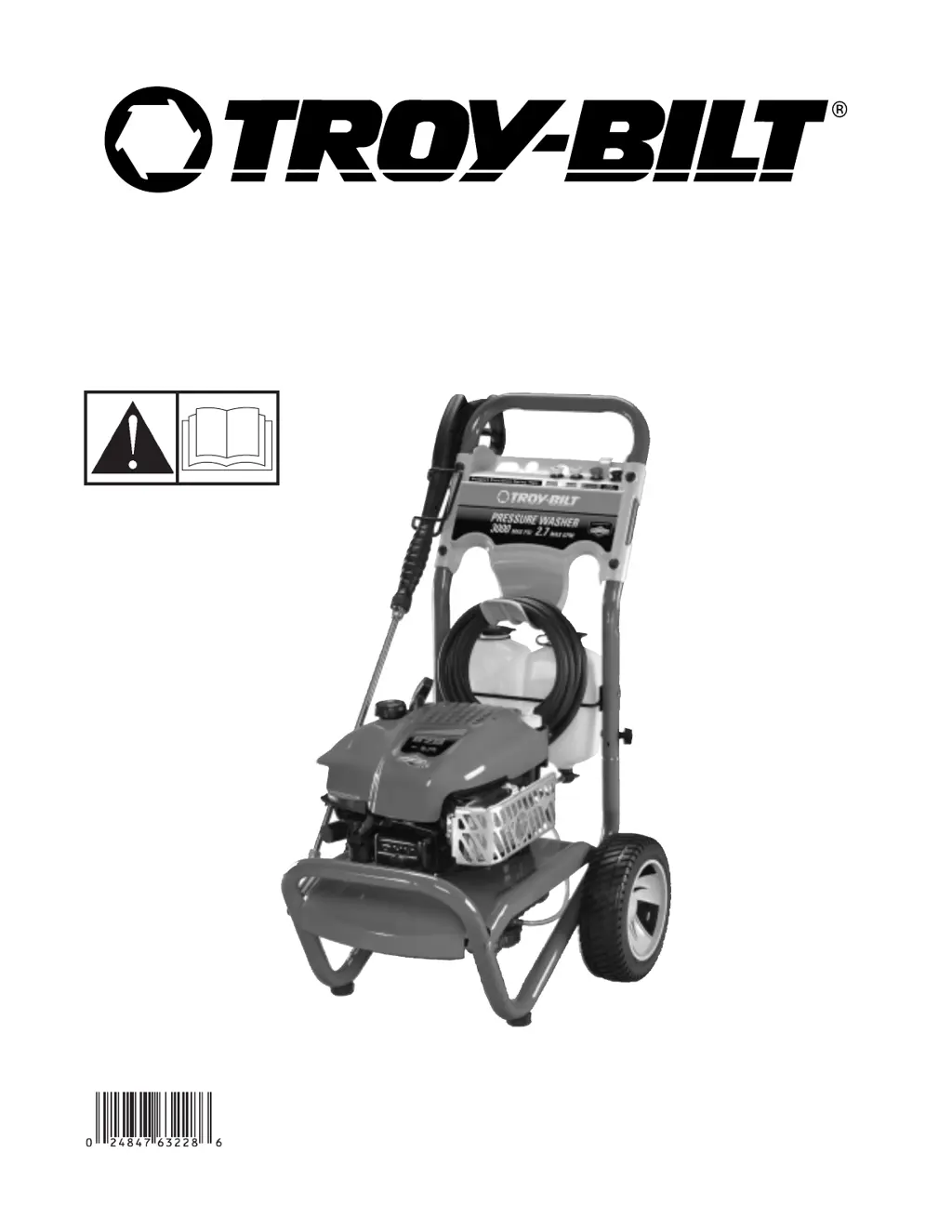

3000 PSI Pressure Washer
Operator’s Manual

Table of Contents

Questions and Answers

  • T
    Tina SteeleAug 1, 2025
    Why won't my Troy-Bilt Pressure Washer engine start or runs rough?
    • M
      michellecurryAug 1, 2025
      If your Troy-Bilt Pressure Washer's engine won't start or runs rough, several factors could be at play. First, check the oil level and fill the crankcase to the proper level if it's low. Ensure the air cleaner is clean; if it's dirty, clean or replace it. Make sure you have enough fuel in the tank, and if the fuel is stale, drain the tank and refill with fresh fuel. Check that the spark plug wire is securely connected to the spark plug, and replace the spark plug if it's bad. Finally, drain the fuel tank and fill it with fresh fuel if there's water in the fuel.
  • R
    rebeccazhangAug 9, 2025
    How to troubleshoot pressure issues with my Troy-Bilt Pressure Washer?
    • A
      Anne WolfAug 9, 2025
      If your Troy-Bilt Pressure Washer pump isn't producing pressure, several issues could be the cause. Make sure you haven't installed a low-pressure spray tip; if you have, replace it with a high-pressure spray tip. Check if the water inlet is blocked and clear it. Ensure that the water supply is adequate. Straighten any kinks in the inlet hose and patch any leaks. Inspect and clean the inlet hose screen. Verify that the water supply isn't over 100°F (38°C), and provide a cooler water supply if needed. Clear any blockages in the high-pressure hose. Replace the spray gun if it's leaking. Clean the spray tip if it's obstructed.
  • J
    Jerry DavisAug 16, 2025
    What to do if my Troy-Bilt 020489 Pressure Washer engine shuts down while running?
    • J
      Juan RussoAug 16, 2025
      If your Troy-Bilt Pressure Washer engine shuts down during operation, it might be due to a couple of reasons. First, check if you're out of fuel and fill the fuel tank if necessary. Also, check the air filter and replace it if it's dirty.
  • A
    Ashley WagnerAug 25, 2025
    Why is detergent not mixing with the spray on my Troy-Bilt 020489 Pressure Washer?
    • Z
      zlewisAug 25, 2025
      If the detergent fails to mix with the spray in your Troy-Bilt Pressure Washer, it could be due to two main reasons. Check if the detergent shut-off valve is in the 'Off' position and turn it to the 'On' position. Alternatively, a high-pressure spray tip might be installed; if so, replace it with a low-pressure spray tip.

Summary

Safety

Carbon Monoxide, Fuel, and Electrical Safety

Hazards of exhaust gas, flammable fuel, and electricity.

Starter Cord Kickback and Burn Hazards

Dangers from starter cord retraction and hot muffler areas.

Rotating Parts and Eye Injury Prevention

Dangers from moving parts and projectiles, eye protection.

Surface Hazards and Kickback Safety

Risks from slippery surfaces and spray gun kickback.

High Pressure Water and Sparking Hazards

Risks from high-pressure water streams and unintentional sparks.

Assembly

Pre-Operation Checklist

Final checks before starting the engine for safe operation.

Operation

Pressure Washer Location and Clearances

Guidelines for safe placement, ventilation, and air movement.

How to Start Your Pressure Washer

Step-by-step instructions for starting the engine.

How to Stop Your Pressure Washer

Procedure for safely shutting down the unit.

How to Use Spray Tips

Guide to different spray tip patterns, selection, and usage.

Maintenance

Maintenance Schedule and Recommendations

Overview of service intervals and general maintenance advice.

Engine Maintenance

Troubleshooting

Pump Performance Issues

Diagnosing and correcting problems with pressure, chattering, or volume.

Engine Starting and Power Issues

Diagnosing engine starting failures and lack of power.

TROY-BILT Warranty Policy

Product Specifications and Parts

Troy-Bilt 020489 Specifications

General IconGeneral
Flow Rate2.3 GPM
Pump TypeAxial Cam
Hose Length25 ft
Wheels10 in
Power2800 PSI
Nozzle Types0°, 25°, 40°, Soap
EngineBriggs & Stratton
