Controls & Features
4
13
Clutch/Brake Pedal
Speed Control &
Parking Brake Lever
Shift Lever
Cup Holder
Throttle/Choke Lever
Ignition Switch Module
Deck Lift Lever
PTO (Blade Engage) Lever
Oil Fill Cap
Fuel Fill Cap
Fuel Level Indicator
Figure 4-1

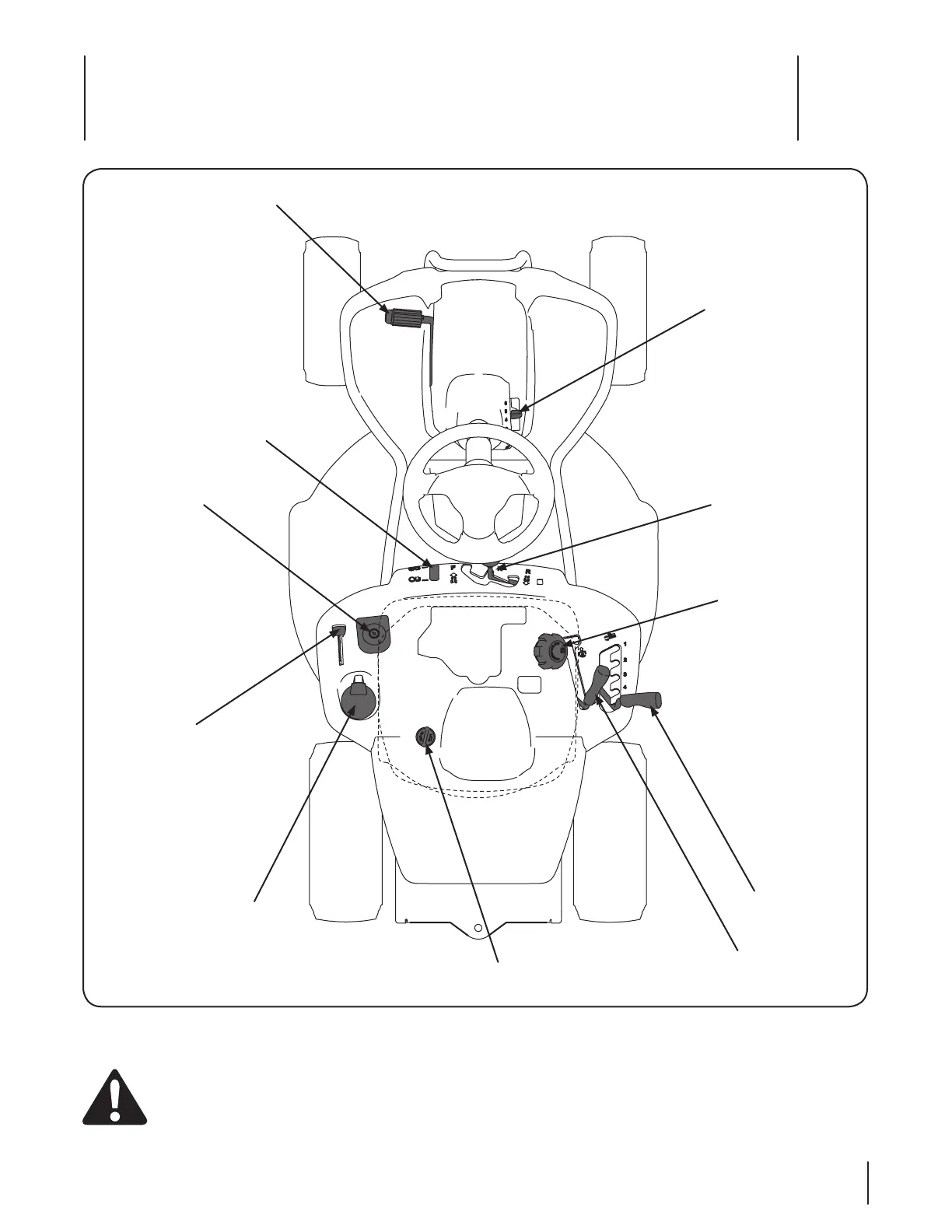

Lawn Tractor controls and features are illustrated in Figure 4-1 and described on the following pages.
WARNING! Read and follow all safety rules and instructions in this manual, including the entire Operation section,
before attempting to operate this machine. Failure to comply with all safety rules and instructions may result in personal
injury.
